56-Port 25G Micro Data Center Switch
DQS-5000-56ZS
- Dostupnost produktu (A1 v1.02WW): Live
- 48 Ports 25G SFP28 for downlink
- 8 Ports 100G QSFP28 for uplink
- 2 PSUs (1+1) redundant and hot-swappable
- 5 FANs (n+1) redundant and hot-swappable
- Pre-load with ONIE for SONiC OS
- Support MC-LAG, EVPN, VxLAN, and VRF
- Advanced Routing: BGP/OSPF/IS-IS, ECMP, BFD
- Support 802.1Qbb (PFC) and 802.1Qaz (ETS)
- IP interfaces: IPv4 up to 512K and IPv6 up to 256K
- Support sFlow, REST API, ZTP, and CLI
Seznam prodejců
User Benefits
Large Data Throughput
48 x 25G SFP28 and 8 x 100G QSFP28 ports deliver massive bandwidth for data-intensive workloads
Open OS Architecture
SONiC-based open platform enables seamless integration, modular design, and long-term adaptability
Standard Routing Protocol
Support BGP-EVPN, VxLAN, MC-LAG, VRF, OSPF and ECMP for L3 routing and resilient network operation
Flexible VxLAN EVPN
Enable VxLAN and EVPN to simplify network virtualization and deliver efficient multi-tenant segmentation
Advanced Automation
Automates routing, security, and QoS with RIP, OSPF, VLAN, and ACL – improving efficiency and reducing overhead
Powers and Fans Redundancy
Front-to-back airflow, 1+1 hot-swappable PSUs, and N+1 fans ensure cooling and uptime reliability
Where Space is Tight, Performance is Mighty
Equipped with 48 x 25G SFP28 and 8 x 100G QSFP28 ports, this compact 1RU switch delivers up to 2.0 Tbps (4.0 Tbps full duplex) of non-blocking switching capacity, ideal for high-density aggregation or core roles. Front-to-back airflow, 1+1 hot-swappable redundant power supplies, and N+1 hot-swappable fans ensure optimal thermal performance and reliability. Making it a perfect fit for micro data centers and space-constrained environments.
Unmatched Speed, Energy Efficiency, and Reliability
As enterprise micro data center networks become increasingly dynamic and data-intensive, soaring bandwidth demands are driving the need for high-density 25G and 100G Ethernet switching across both leaf and spine tiers to ensure seamless scalability, low latency, and optimized performance.
The DQS-5000-56ZS – Purpose-built for micro data centers, optimized for high-speed Layer 3 traffic with ultra-low latency in a compact design. It delivers the speed, scalability, and efficiency needed for agile, future-ready data centers, integrating seamlessly with Layer 3 topologies, overlay networks, and both virtualized and traditional architectures.
Intelligent Traffic Management, Provisioning, and Visibility
Traffic monitoring demands high-availability, high-performance network infrastructure. The DQS-5000-56ZS meets these needs with MC-LAG, hot-swappable PSU and fans, 25G downlinks for endpoint aggregation, and 100G uplinks for database and storage connectivity.
It ensures uninterrupted data transfer, precise data retrieval, and intelligent event-based traffic forwarding. This enables seamless connectivity across racks or sites, supporting multi-tenant environments and virtualized workloads with the following benefits :
- Full Bandwidth Utilization
- Seamless VM Mobility
- Optimized Data Center Efficiency

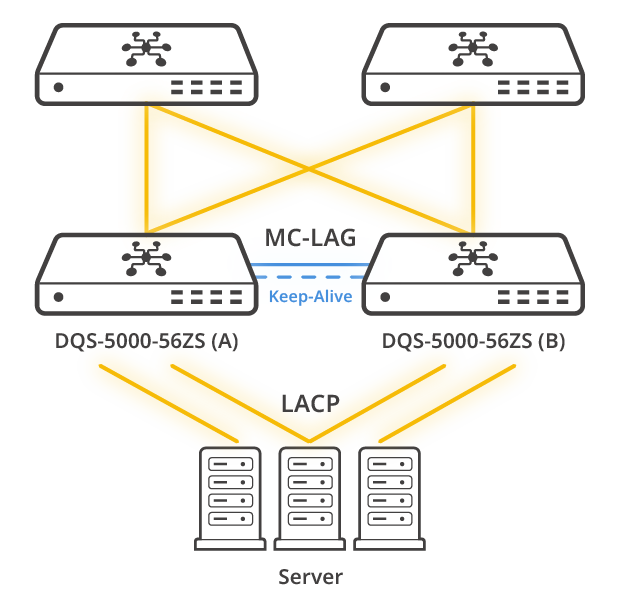

Increased Link Redundancy and Load Balancing
Multi-Chassis Link Aggregation Group (MC-LAG) is widely adopted in enterprise and data center networks to enhance network resiliency, bandwidth utilization, and seamless failover protection.
Unlike traditional LAG, MC-LAG allows devices to connect to two independent switches simultaneously, ensuring service continuity even if one switch becomes unavailable.
- Load Balancing – Uninterrupted service
- Seamless Failover – Optimal performance
- Open Interoperability – Works with standard LAG protocols
Enterprise
User benefits :
- Reliable voice/video at scale
- 100G uplinks for cloud and backup
- Scalable design for business growth
- Traffic monitoring for bandwidth control
Learn more :
- Core Switch : DXS-3610 Series
- Aggregation Switch : DMS-3130 Series
- Standard Smart Switch : DGS-1250 Series
- Wi-Fi Network : DAP-X3060

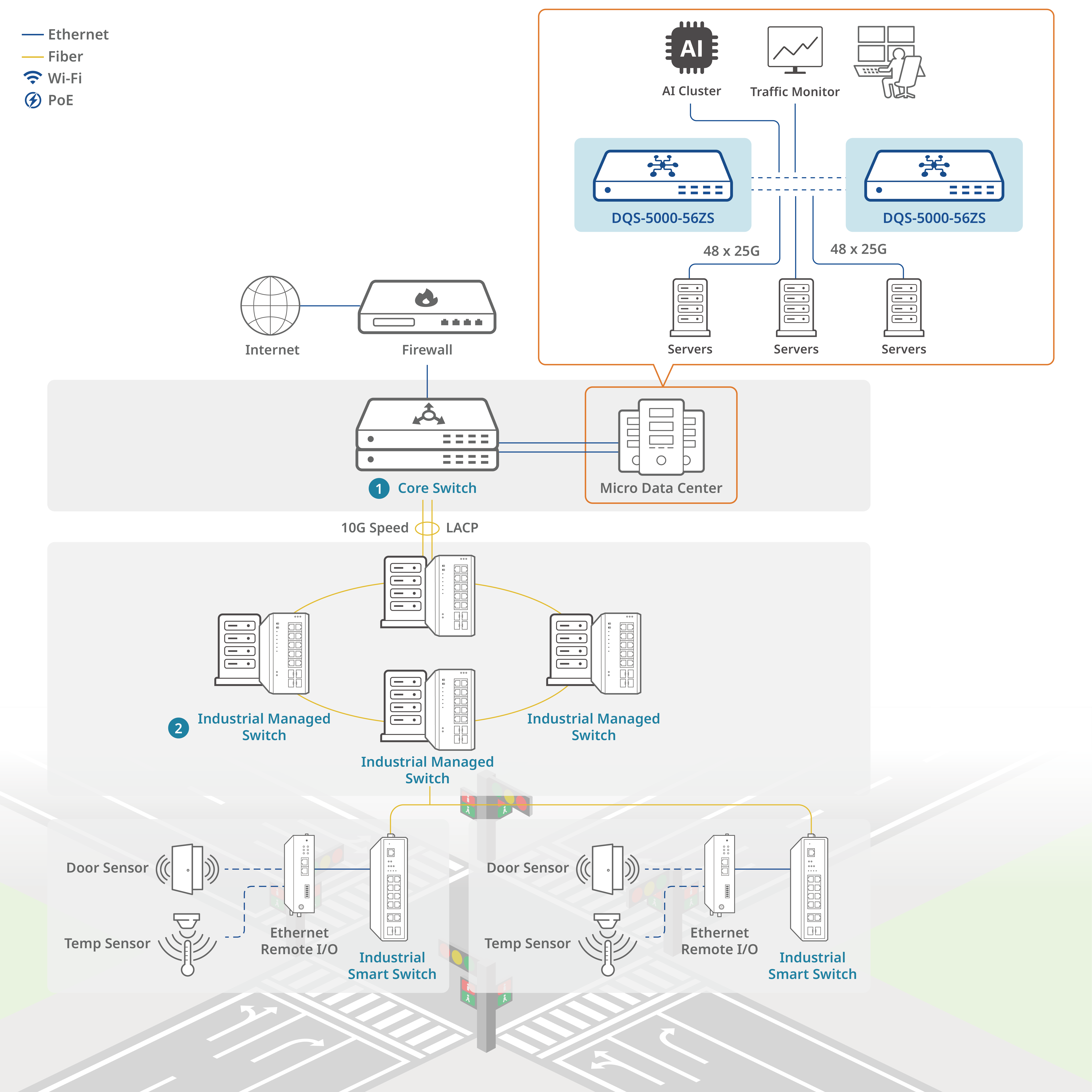

Traffic Monitor
User benefits :
- 8×100G uplinks for bottleneck-free aggregation
- Low-latency fabric for precise traffic visibility
- 48×25G capacity for scalable expansion
- Carrier-grade reliability for nonstop capture under load
Learn more :
- Core Switch : DXS-3610-54S
- Industrial Managed Switch : DIS-310G-24X ( coming soon )
- Industrial Smart Switch : DIS-210G-12UP ( coming soon )
- Outdoor IP Camera : DCS-4618EK
Campus
User benefits :
- Dual 25G uplinks per building via LAG/MC-LAG
- EVPN-VXLAN with anycast gateway for segmented services
- QoS for streaming/exams for IPTV, uRPF/ACLs for east-west security
- ZTP + API automation, multicast telemetry and role-based templates per building
Learn more :
- Core Switch : DXS-3610-54S
- Aggregation Switch : DXS-3130-32S
- Standard Smart Switch : DMS-1250-Series
- Access Point : DCS-4618EK
Technické specifikace produktu
|
Interfaces
|
48 x 25G SFP28 8 x 100G QSFP28 |
|---|---|
|
Switch Capacity
|
2.0 Tbps (4.0 Tbps full duplex) |
|
Max. Packet Forwarding Rate
|
2380 Mpps |
|
Max Power Consumption
|
550W |
|
Dimensions
|
440 x 470 x 44 mm (17.32 x 18.50 x 1.73 in) |
|
Weight
|
9.7 kg |
|
Power Supply
|
CRPS, 1+1 Redundancy, Hot-Swappable |
|
FAN
|
5 (n+1) Redundancy, Hot-Swappable |
|
Operating Temperature
|
0 - 40 °C (32 - 104 °F) |
|
Operating Humidity
|
5% to 95% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
1 x 10/100/1000Base-T RJ-45 |
|
USB Port
|
1 x USB Type A |
|
Skutečný výkon se může lišit v závislosti na nastavení, kabeláži, teplotě, konfiguraci sítě, rozhraní, kompatibilitě zařízení, podmínkách prostředí a na místě a dalších podobných faktorech. Odkazy na výkon, rychlost signálu nebo zpracování, dosah signálu nebo vzdálenost, šifrování dat, úložnou kapacitu, vlastnosti displeje nebo jiné metriky výkonu jsou založeny na optimálních podmínkách odvozených z průmyslových standardů a jsou poskytovány pouze pro informační účely. Specifikace se mohou změnit bez předchozího upozornění. |
|
