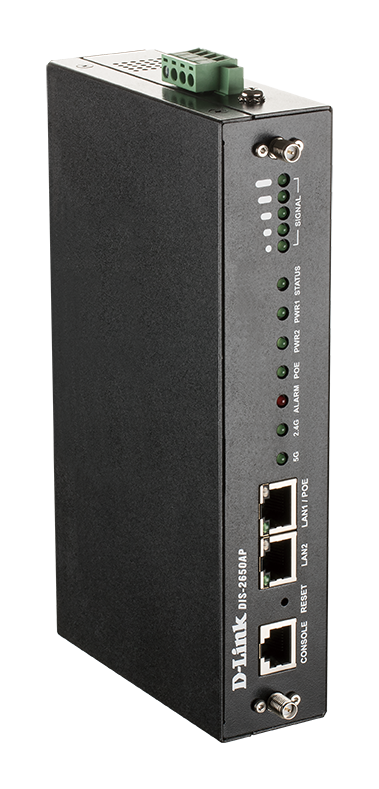

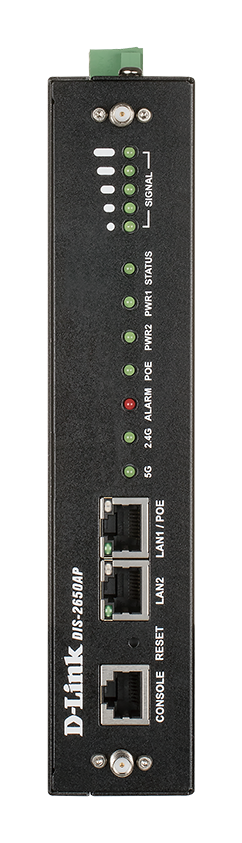

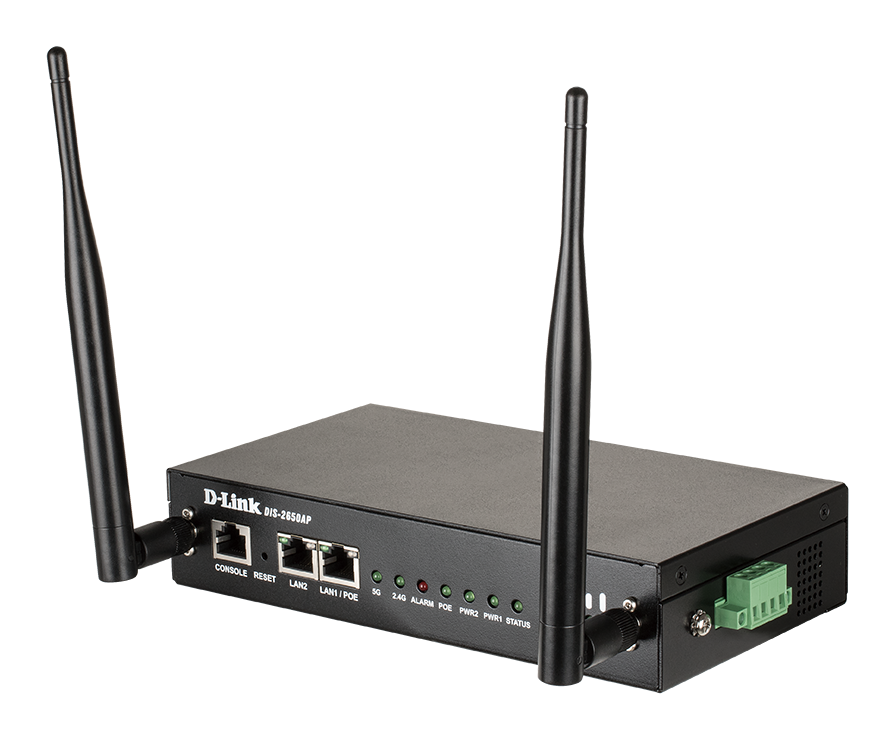

Industrial AC1200 Wave 2 Access Point

DIS-2650AP

  • Product Status (Revision A1): Live
  • Dual-band AC1200 speeds: 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz.
  • Wide operating temperature range of -20 to 65°C
  • Built-in 2 kV surge protection and 15kV ESD protection
  • Redundant dual DC power input
  • Power over Ethernet (802.3at) support
  • 2 x Gigabit LAN ports
  • Standalone, or use with free Nuclias Connect management software or dedicated Nuclias Connect Hub

Download the datasheet.

Where to buy

Business wireless connectivity that's built to last

Designed specifically to operate in harsh environments with a wide operating temperature range and surge/ESD protection, the DIS-2650AP comes in a rugged metal housing that can be DIN or wall-mounted — ideal for industrial installations.

Manage your business network with ease

The DIS-2650AP can work as a standalone device but can also work with Nuclias Connect - a free software-based management platform (with optional hardware controller) that can be used on-premises, or as a cloud solution hosted on a public cloud service. Admin tasks can be swiftly carried out from the Nuclias Connect app, or server/PC-based software for easy access, easy automation, and easy network scalability.

Learn more
Easily manage your network with Nuclias Connect

Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.

Built tough, for tough environments

Wide operating temperature range with built-in 2kV surge protection and 15kV ESD protection

Flexible DIN or wall mountable

For increased flexibility in varied working environments, it can be mounted on a DIN rail or wall-mounted

Flexible power input

Powered via Power over Ethernet (802.3at PoE) or redundant dual DC input

Easy to scale up

The free Nuclias Connect management software controller allows you to scale up the network by up to 1,000 access points2

Reliable, secure performance

Fast throughput with dual-band, MIMO technology, band steering & airtime fairness intelligently manages users with WPA2 wireless encryption

Hassle-free admin tasks

Empower admins to work efficiently, even across multiple sites. Deploy, configure, update and expand rapidly.

Free-to-download software & app

Rapidly setup, manage and monitor APs locally via our free network management software, or remotely with the Nuclias Connect app

Strong, reliable performance for your business

The DIS-2650AP delivers reliable, high-speed wireless AC Wave 2 performance with maximum combined wireless signal rates of up to 1200Mbps1, with x2 Gigabit LAN ports for high-capacity backhaul to the wired network.

It also supports multiple VLANs for enhanced network management, x16 SSID setups, MAC Address filtering, WLAN partitioning, and utilises WPA2 Wi-Fi security for enhanced network protection.

Seamless and self-sufficient networking

It employs band steering, MU-MIMO and beamforming - all designed to work together to alleviate congestion by automatically routing devices based on Internet usage, so your network won’t be slowed down by devices performing intense tasks.

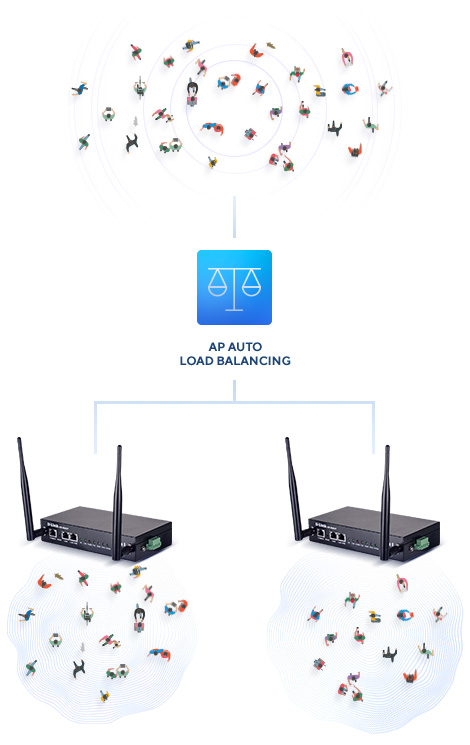

This access point also supports Load Balancing and Airtime Fairness technology to distribute workloads between other APs for optimum resource utilisation, allowing every device in your network to seamlessly get the best connectivity possible — without putting a strain on your whole network.

Durable and Reliable Design

The DIS-2650AP is housed in a rugged metal casing to protect itself from harsh environmental conditions and supports a wide operating temperature range of -20 to 65°C.

For increased flexibility in harsh environments, the DIS-2650AP can be mounted on a DIN rail or wall-mounted and the option to be powered via Power over Ethernet (802.3at PoE) or by dual DC input.

Built to work, made to last

The built-in 2kV surge protection and 15KV ESD protection ensure continuous operation in unexpected electric surges or discharges.

Multiple Operation Modes

The DIS-2650AP can be configured to fit the needs of your network and optimise performance.

  • Access point
  • Wireless distribution system (WDS) with access point
  • WDS/bridge (no AP broadcasting)
  • Wireless client.

Advanced and customisable on-premise network management.

Nuclias Connect is a unified network management tool with cost-effective scalability, powerful controls, and is designed as a solution for every type of business.

Minimise the hassle of deployments, configurations and admin tasks.

Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access and an intuitive dashboard make life easier for network admins, while functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.

Learn more

Get your networks up and running from anywhere, easily and quickly.

Network administrators can set different configurations and authority levels for head and branch offices. Network devices can be pre-configured before being dispatched to regional offices, allowing rapid deployments, replacements or scaling. The solution also enables Managed Service Providers to send pre-configured APs to their customers and remotely manage their wireless networks.

Learn more

Manage your business network, like never before.

Nuclias Connect enables you to manage and control your network from anywhere with an Internet connection. It provides an extensive understanding of your network and its users through traffic analytics and status reports, which can be viewed at a glance through an intuitive interface on PC, or phone via our app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network, to the level of a single AP.

Learn more

Scale your Wi-Fi alongside your business

The free Nuclias Connect centralised management software gives you the flexibility to scale up the network to up to 1,000 APs2.

Learn more

How Nuclias can help you

Private Sector

Real time analytics help you tailor customer’s Wi-Fi experience, as well as further drive sales.

Industrial

Deploy an efficient and robust network built for the future. Easily manage multiple sites, and see detailed reports.

Government

Create a secure and fast Wi-Fi experience for all your guests and staff throughout your premises.

Manufacturing Facility

Ensure staff & employee safety while supporting an evolving digital experience.

Efficient hardware, dedicated to Nuclias Connect.

The new Nuclias Connect Hub (DNH-100) is an optional hardware controller that’s small and comes pre-installed with Nuclias Connect. It provides an inexpensive, ready-made solution, and makes AP configurations fast and easy. It removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

View Nuclias Connect Hub

We're here to help.

Over 35 years in the networking industry

Innovative end-to-end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

5‑Year D‑Link Warranty

You're protected by one of the global leaders in the industry.

Related Products

Industrial Gigabit Unmanaged PoE Switch with SFP slot
DIS-100G-5PSW
Find out more
Industrial Gigabit Smart Managed PoE Switch
DIS-200G-12PS
Find out more
Industrial Gigabit Managed PoE Switch with SFP slots
DIS-300G-8PSW
Find out more
Industrial Gigabit Managed PoE Switch with SFP slots
DIS-300G-14PSW
Find out more
Nuclias Connect Hub
DNH-100
Find out more

1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
2 Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwidth is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwidth is recommended.

Wireless standard
Wireless AC
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
2 detachable omni-directional antennas
Antenna gain
2.5 dBi for 2.4 GHz
3 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Metal
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
802.11k/r Roaming
MU-MIMO
Maximum number of SSIDs
16
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WPA/WPA2-Personal/Enterprise
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
Syslog
Supported
Version Date Type File Size
Datasheet EN - PDF 0.66mb Download
Version Description Date Type File Size
Manual 1.00 RevA1 Product Manual 04-11-2021 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.00 RevA1 Firmware 11-05-2021 - Download
Version Description Date
CE doc 1.00 RevA1 CE document 11-05-2021 Download
