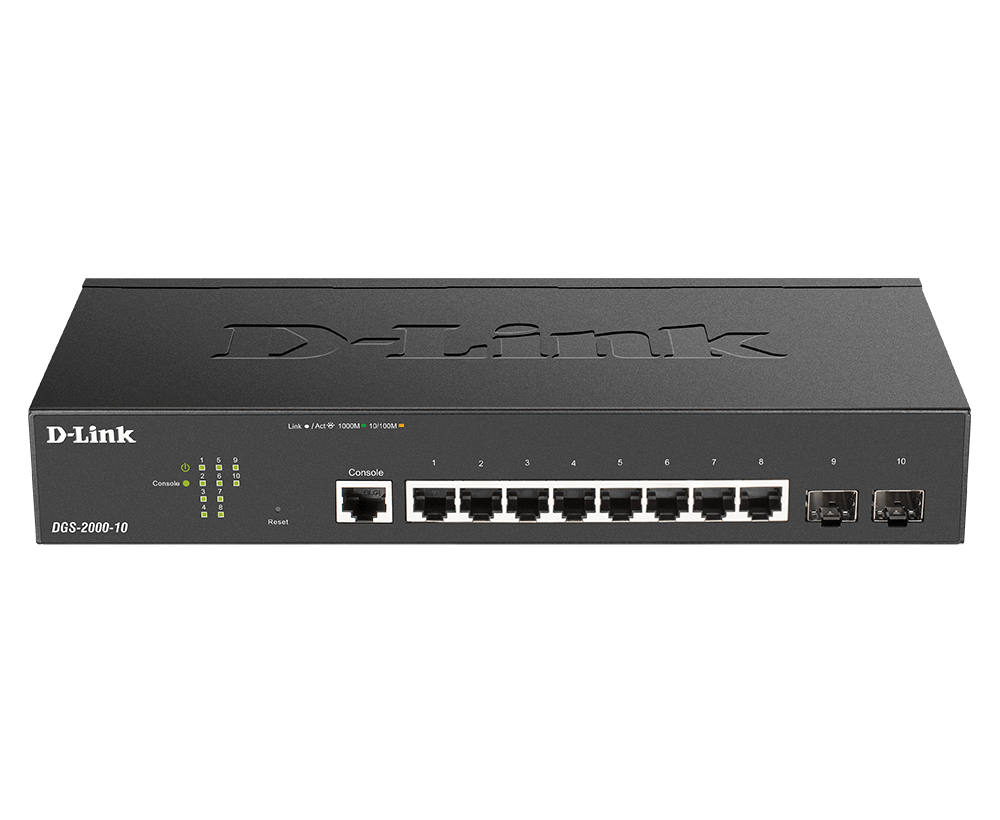

Managed Gigabit Access Switches

DGS-2000 Series

  • Product Status (Revision A1_v103): Live
  • Different combinations of 1000BASE-T, 100/1000 Mbps GbE/SFP combo, and 100/1000 Mbps SFP
  • PoE and non-PoE variations
  • Auto Surveillance and Voice VLAN detection for uninterrupted surveillance video and jitter-free VoIP calls
  • Up to 30W per port with 370W total PoE power budget
  • Layer 2 management and security, with Layer 3 Lite features
  • Supports D-Link Network Assistant (DNA) and Web UI utilities
  • Supports Command Line Interface (CLI) via Telnet or SSH

Download the datasheet.

Where to buy

Why you Want it

Flexible Hardware Design

Wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps GbE/SFP combo ports, and 100/1000 Mbps SFP ports.

Network Security

D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks.

Quality of Service

Auto detection for uninterrupted surveillance video and jitter-free VoIP calls

User Friendly Web GUI

Multi-language Web GUI makes management easy for global deployments

Layer 2 Features

Equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, spanning tree protocol(STP), and link aggregation control protocol (LACP).

Lite Layer 3 Features

Supports IP interfaces, ARP, IPv6 neighbor discovery (ND) and default routing

Switching Capacity

Up to 104 Gbps switching capacity

PoE Capable

Maximum PoE budget up to 370W

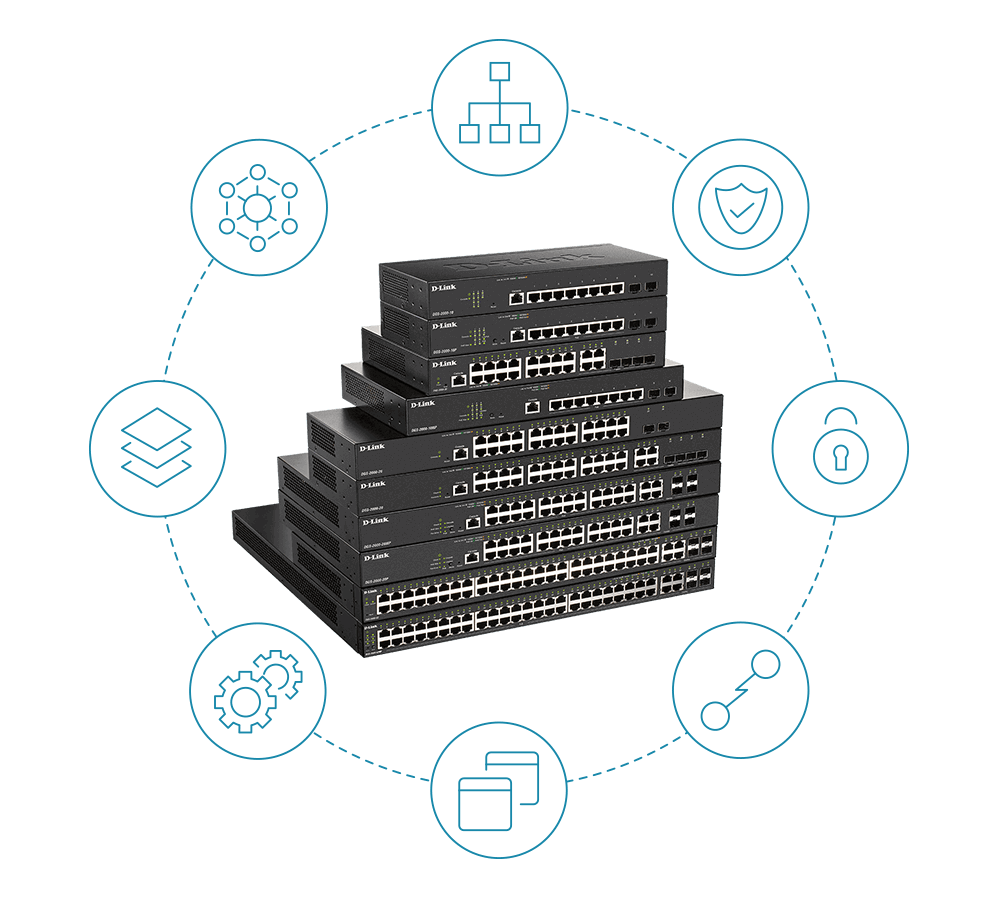

Ultra High Availability

For mission critical environments, the DGS-2000 series supports IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and terminating switching loops.

The cable diagnostics feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing for effortless diagnostics and maintenance.

An Added Line of Defense Against Attacks​

Defend your network with D-Link’s innovative Safeguard Engine™ to neutralize threats such as malicious network flooding attacks, ARP spoofing, and bogus DHCP IP addressing. Compatible with 802.1X RADIUS server applications, port-based and host-based authentication are applied through the Access Control List (ACL) to enhance network security.​

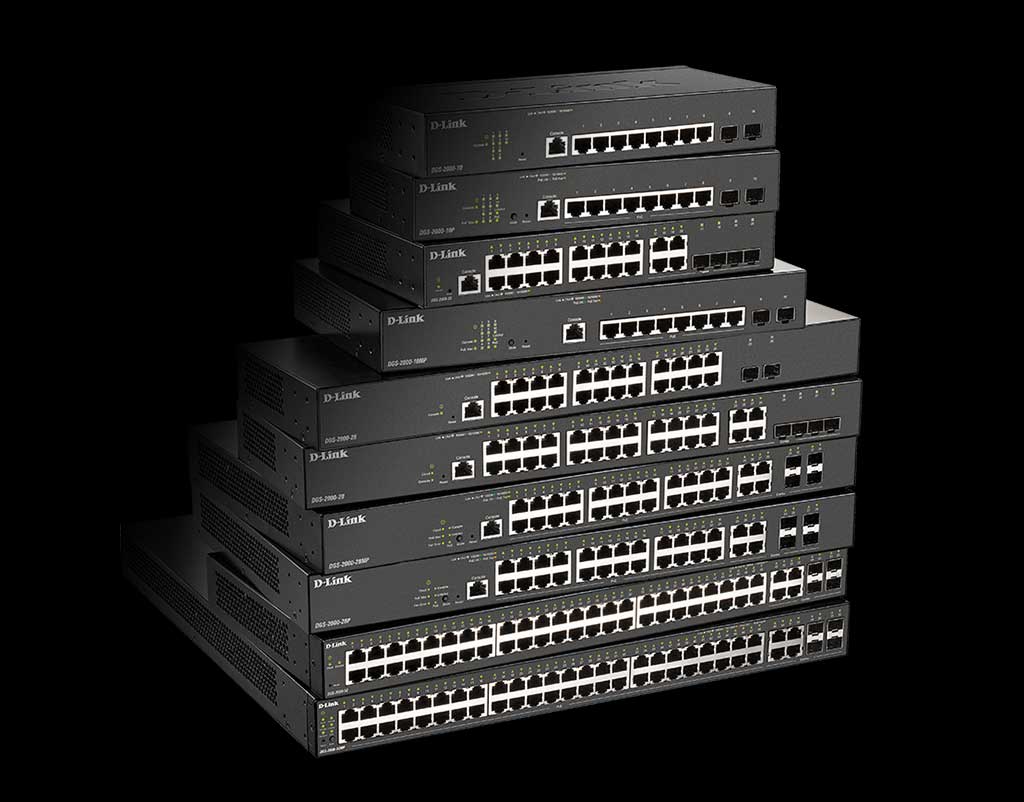

Seamless Integration for All Access Layer Requirements

The DGS-2000 Series includes a wide variety of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps GbE/SFP combo ports, and 100/1000 Mbps SFP ports. The DGS-2000-10, DGS-2000-26, DGS-2000-10P and DGS-2000-10MP models feature two 100/1000 Mbps SFP ports, while all other DGS-2000 Series models feature two or four GbE/SFP combo ports, allowing you to choose the most suitable media type for your requirements.

All DGS-2000 Series PoE switches include support for IEEE 802.3af/at and higher power budgets up to 370W, allowing more PoE devices to be powered by the switch. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages power fed to IEEE 802.3at PoE+ powered devices for optimal power distribution.

QoS (Quality of Service) - Unhindered Surveillance & VoIP with a Simple Click

If you need surveillance or VoIP, there is no need to build a dedicated network. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly, and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.

Versatile Management​

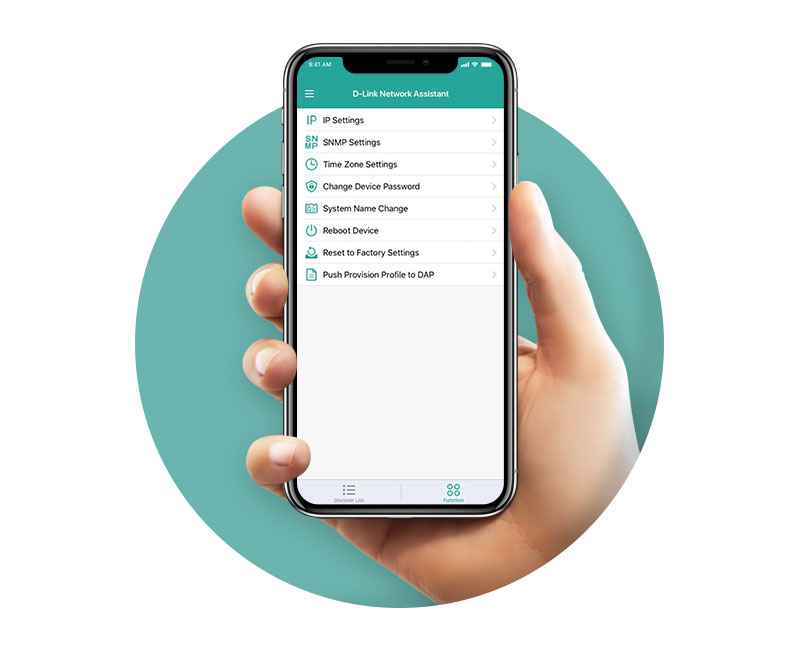

The DGS-2000 Series comes with the D-Link Network Assistant (DNA) utility that enables administrators to remotely control their network down to the port level. The D-Link Network Assistant utility allows customers to easily discover multiple D-Link Managed Access Switches within the same L2 network segment and display them on-screen for instant access, so users do not need to change the IP address of their PC. This allows for simultaneous configuration and setup of all discovered devices, including password changes and firmware upgrades. The DGS-2000 Series also supports Command Line Interface (CLI) through Telnet, SSH and the console port.

DGS-2000 Series Comparison

DGS-2000-10
DGS-2000-10
DGS-2000-10P
DGS-2000-10MP
DGS-2000-10MP
DGS-2000-20
DGS-2000-20
DGS-2000-26
DGS-2000-26
DGS-2000-28
DGS-2000-28
DGS-2000-28P
DGS-2000-28P
DGS-2000-28MP
DGS-2000-28MP
DGS-2000-52
DGS-2000-52
DGS-2000-52MP
DGS-2000-52MP
Interface
8 x
10/100/1000 BASE-T Ports
2 x
100/1000 Mbps SFP Ports
8 x
10/100/1000 BASE-T PoE Ports
2 x
100/1000 Mbps SFP Ports
8 x
10/100/1000BASE-T PoE Ports
2 x
100/1000 Mbps SFP Ports
16 x
10/100/1000BASE-T Ports
4 x
100/1000 Mbps GbE/SFP combo Ports
24 x
10/100/1000BASE-T Ports
2 x
100/1000 Mbps GbE/SFP Combo ports
24 x
10/100/1000BASE-T Ports
4 x
100/1000 Mbps GbE/SFP Combo Ports
24 x
10/100/1000BASE-T PoE Ports
4 x
100/1000 Mbps GbE/SFP Combo Ports
24 x
10/100/1000BASE-T PoE Ports
4 x
100/1000 Mbps GbE/SFP Combo Ports
24 x
10/100/1000BASE-T Ports
4 x
100/1000 Mbps GbE/SFP Combo Ports
24 x
10/100/1000BASE-T PoE Ports
4 x
100/1000 Mbps GbE/SFP Combo Ports
Console Port RJ-45 Connector RJ-45 Connector RJ-45 Connector RJ-45 Connector RJ-45 Connector RJ-45 Connector RJ-45 Connector RJ-45 Connector RJ-45 Connector RJ-45 Connector
Switching Capacity 20 Gbps 20 Gbps 20 Gbps 40 Gbps 52 Gbps 56 Gbps 56 Gbps 56 Gbps 104 Mbps 104 Mbps
Mac Address Table Size 8K 8K 8K 8K 8K 8K 8K 8K 16K 16K
PoE N/A 802.3at 802.3at N/A N/A N/A 802.3at 802.3at N/A 802.3at
Max PoE Budget N/A 65W 130W N/A N/A N/A 193W 370W N/A 370W
