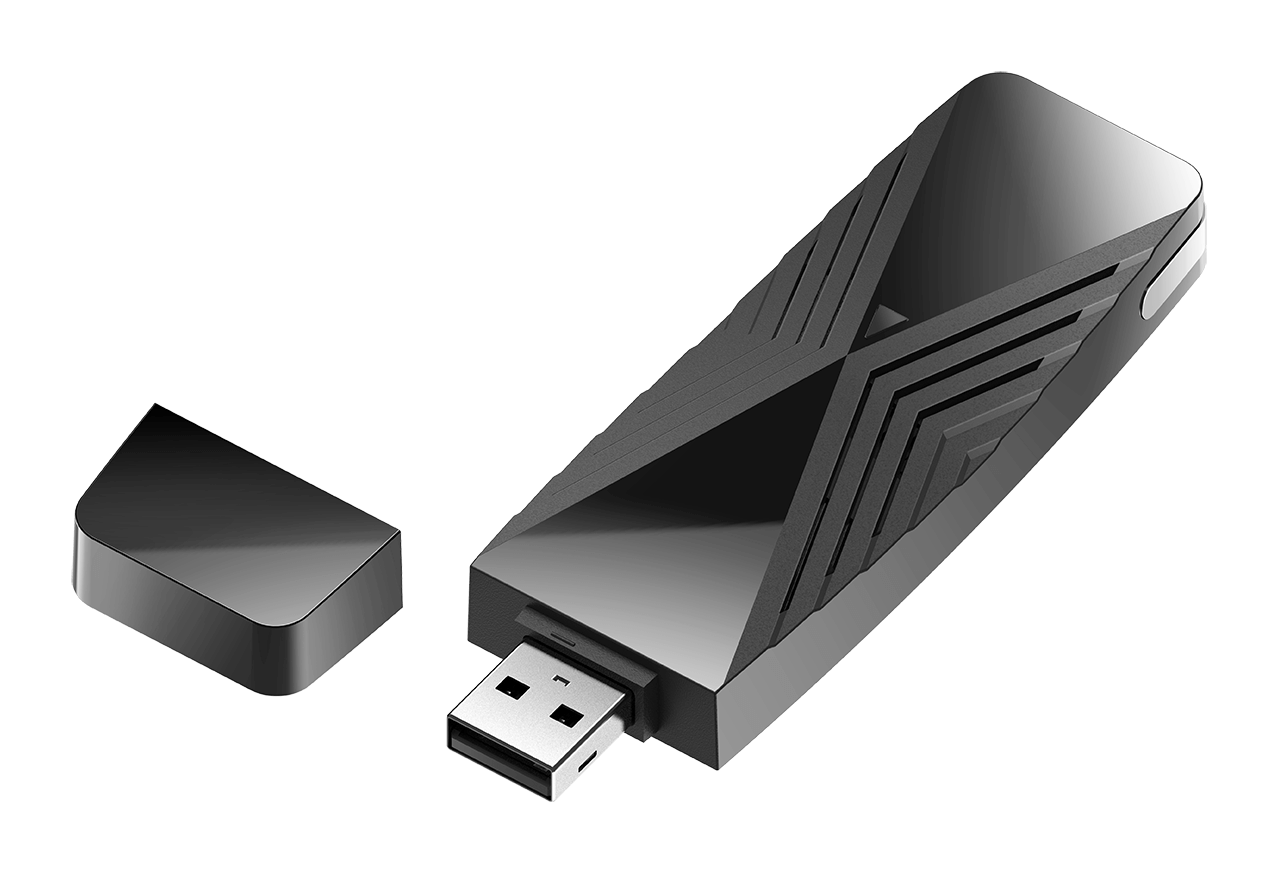

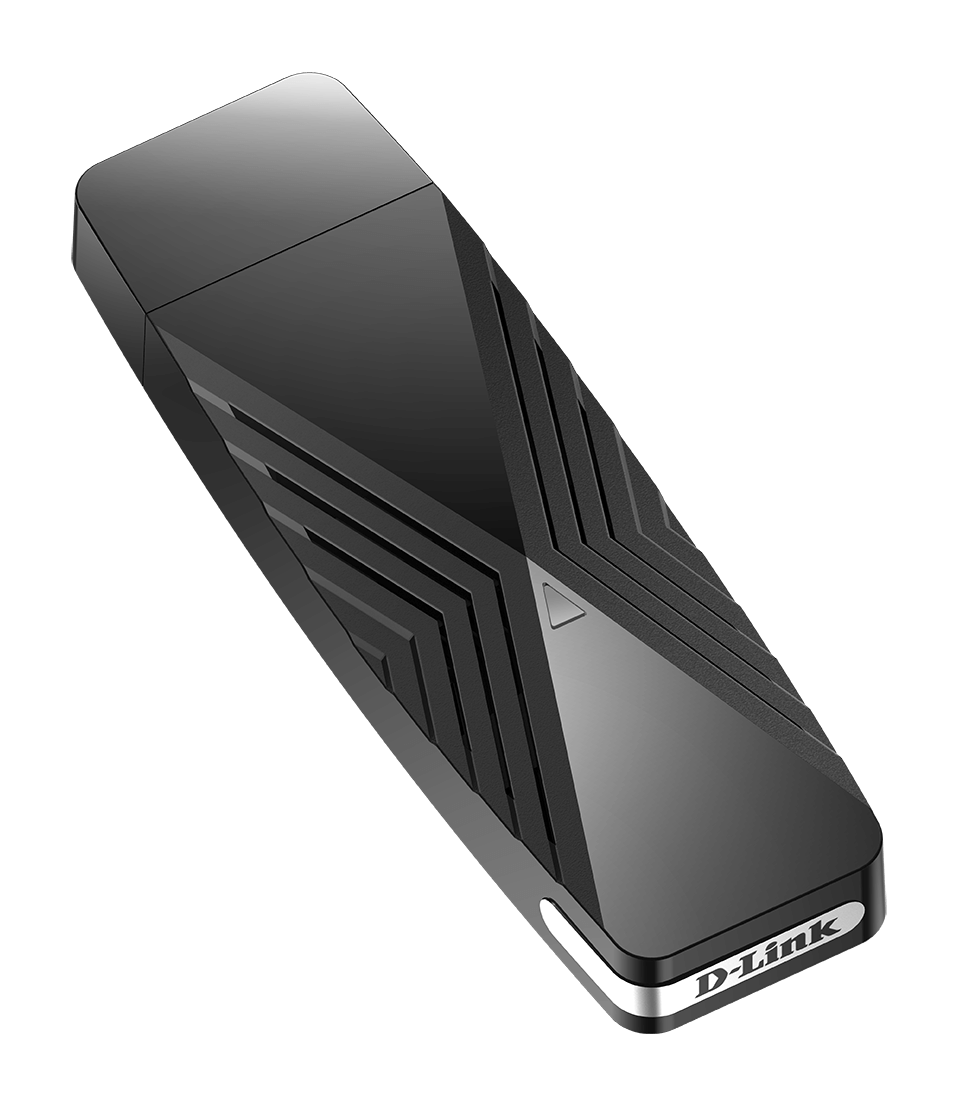

AX1800 Wi-Fi 6 USB Adapter

DWA-X1850

  • Product Status (Revision A1_v1.01): Live
  • Next-generation Wi-Fi 6 USB dongle for an instant PC or Laptop upgrade
  • AX1800 Speeds up to 600 Mbps (2.4 GHz) / 1200 Mbps (5 GHz)
  • OFDMA and MU-MIMO technologies ensure a fast and efficient Wi-Fi connection
  • The latest WPA3™ Wi-Fi security helps protect your network from attacks
  • Auto installation driver for Windows 10




Download the datasheet.

Where to buy

Highlights

Wi-Fi 6 Performance

Perfect for uninterrupted 4K streaming, VR gaming and video calling

AX1800 Speeds

Up to 574 Mbps (2.4 GHz) / 1200 Mbps (5 GHz)

OFDMA

OFDMA technology designed to handle device-dense networks

MU-MIMO

MU-MIMO allows simultaneous communication between multiple devices

WPA3 Encryption

Offers the latest Wi-Fi security for more protection

Tech Sense Design

Tech sense compact design for travel convenience

One-Click Driver Install

Pre-loaded drivers for quick and simple one-click installation

Backwards Compatible

Supports all existing Wi-Fi Routers and Gateways

The World's First Wi-Fi 6 USB Dongle

The DWA-X1850 is the first USB adapter available that quickly adds Wi-Fi 6 connectivity to your desktop or notebook.

Advanced Wi-Fi 6 features such as OFDMA and MU-MIMO enable highly-efficient Wi-Fi connections and ensure all devices are reliably connected to your home network.

Learn More

Dual-band AX1800 Speeds

Up to 600 Mbps on the 2.4 GHz band and up to 1200 Mbps on the 5 GHz band – perfect for all your online needs.

Advanced Beamforming

Beamforming technology detects your DWA-X1850's location and focuses a direct signal to the device allowing for even greater coverage and range.

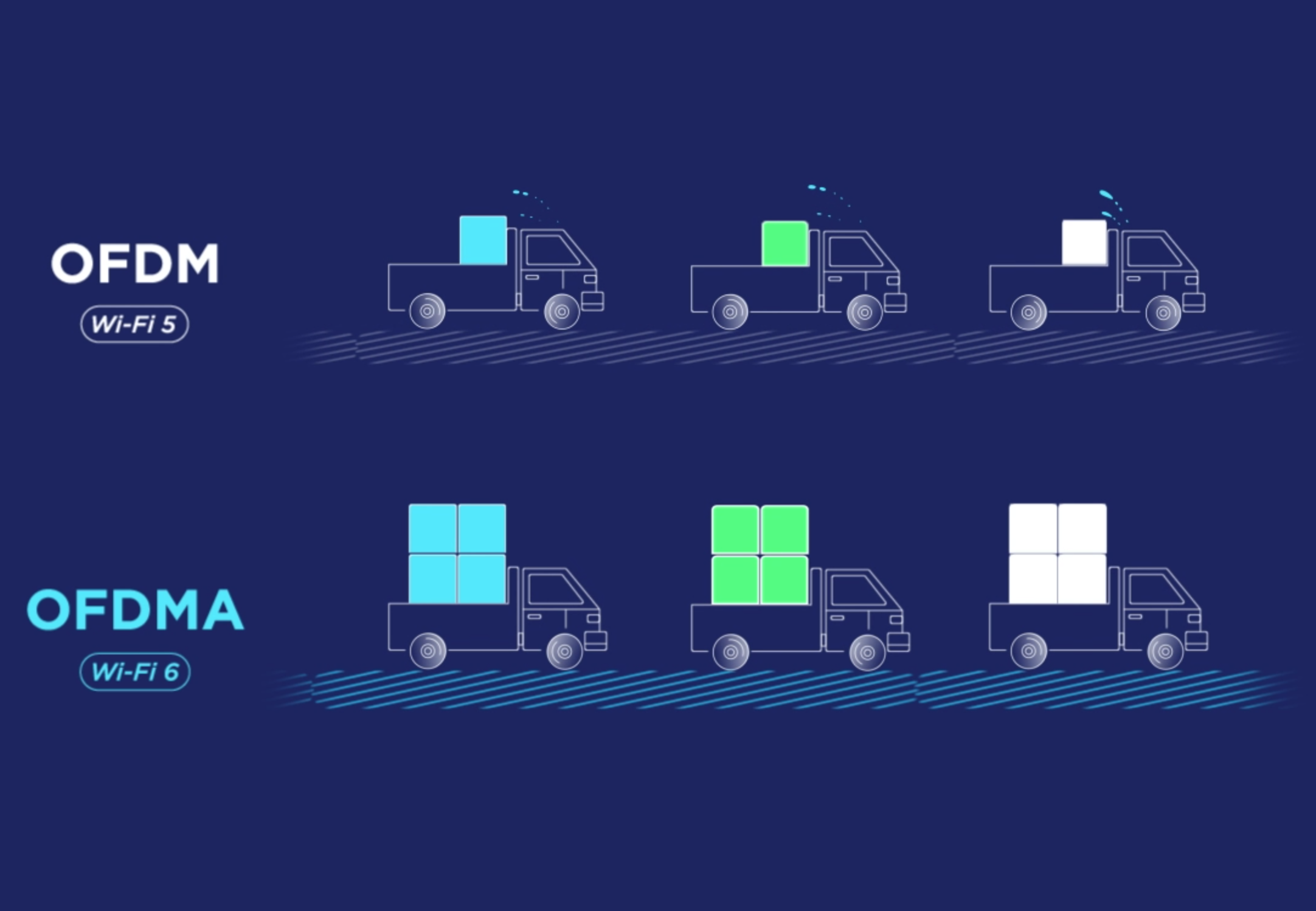

OFDMA

OFDMA greatly optimizes short packet transmission for better network performance, helping keep your VoIP calls and more fast and jitter-free.

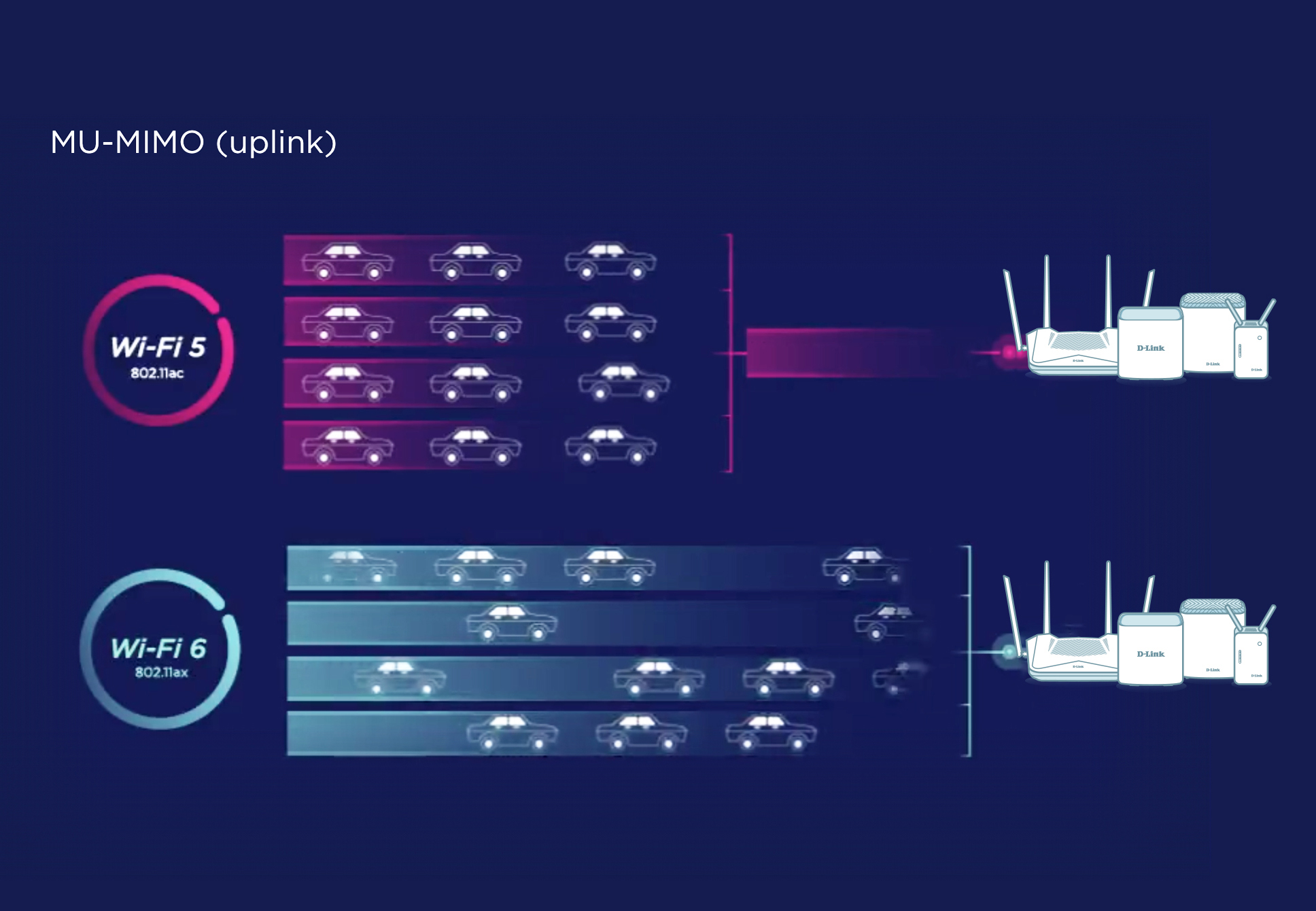

MU-MIMO

MU-MIMO greatly enhances large packet data—such as streaming and online gaming, allowing you to sit back, relax and have a great time online.

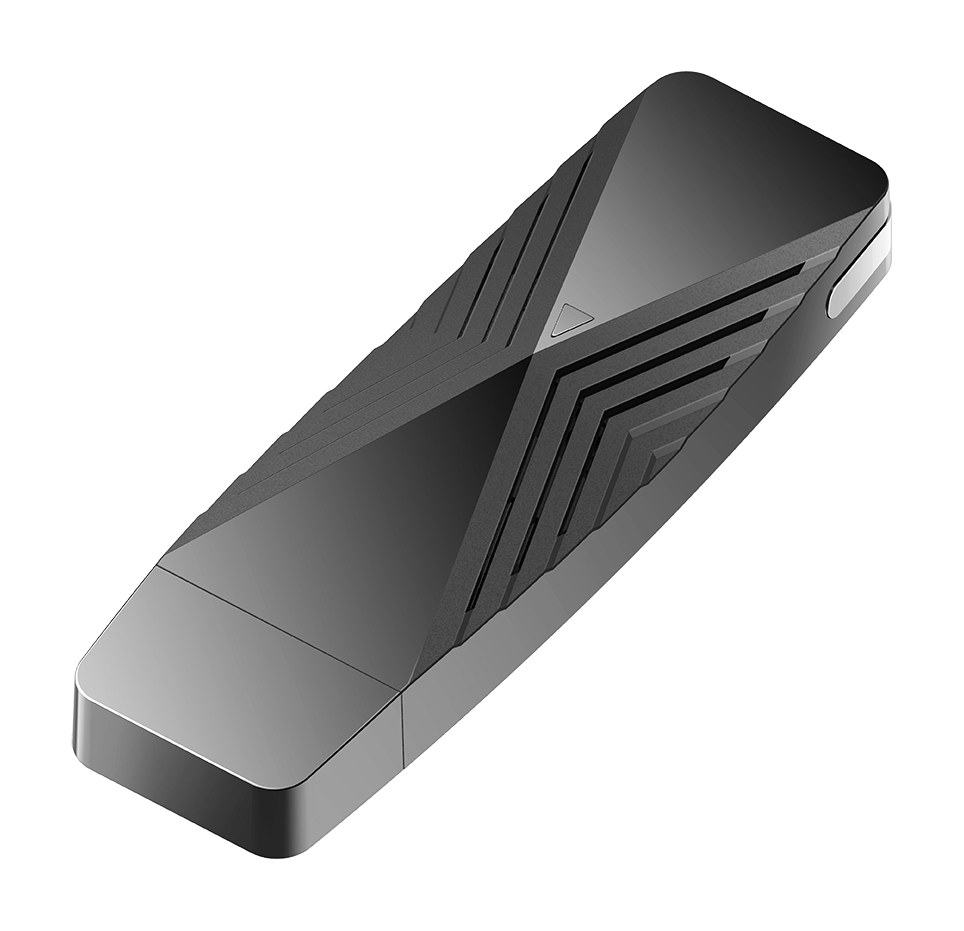

Compact, Stylish and Easy to Set up

The DWA-X1850 fits in the palm of your hand and comes with pre-loaded drivers for quick and simple installation, so you can take it with you anywhere. What's more - you can even use it on other laptops!

WPA3™ for Enhanced Network Security

The latest WPA3™ Wi-Fi encryption helps provide more protection for your network and connected devices.

Perfect For

Streaming & Gaming

Laptop / PC upgrade

Online Calls

Wi-Fi 6 on-the-go

Antenna
Integrated antenna
Certifications
CE
FCC Class B
IC
Dimensions
95.5 x 30 x 12.7 mm
Interfaces
USB port (USB 3.2 Gen 1 (USB 3.0) standard)
Operating Humidity
10% to 90% non-condensing
Operating System
Windows 10 (32 & 64-bit driver support)
Operating Temperature
0 to 40 °C (32 to 104 °F)
Operating Voltage
5.0 V DC ± 10%
Power
Operating mode : 464 mA
Standby mode : 154 mA
Standards
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11n
Storage Humidity
5% to 95% non-condensing
Storage Temperature
-20 to 75˚ C (-4 to 167° F)
Weight
23.6 g
Wireless Encryption
WPA2™, and WPA3™ (Wi-Fi Protected Access)
Wireless Speed
802.11ax up to 1200 Mbps (5 GHz)
802.11ax up to 574 Mbps (2.4 GHz)
