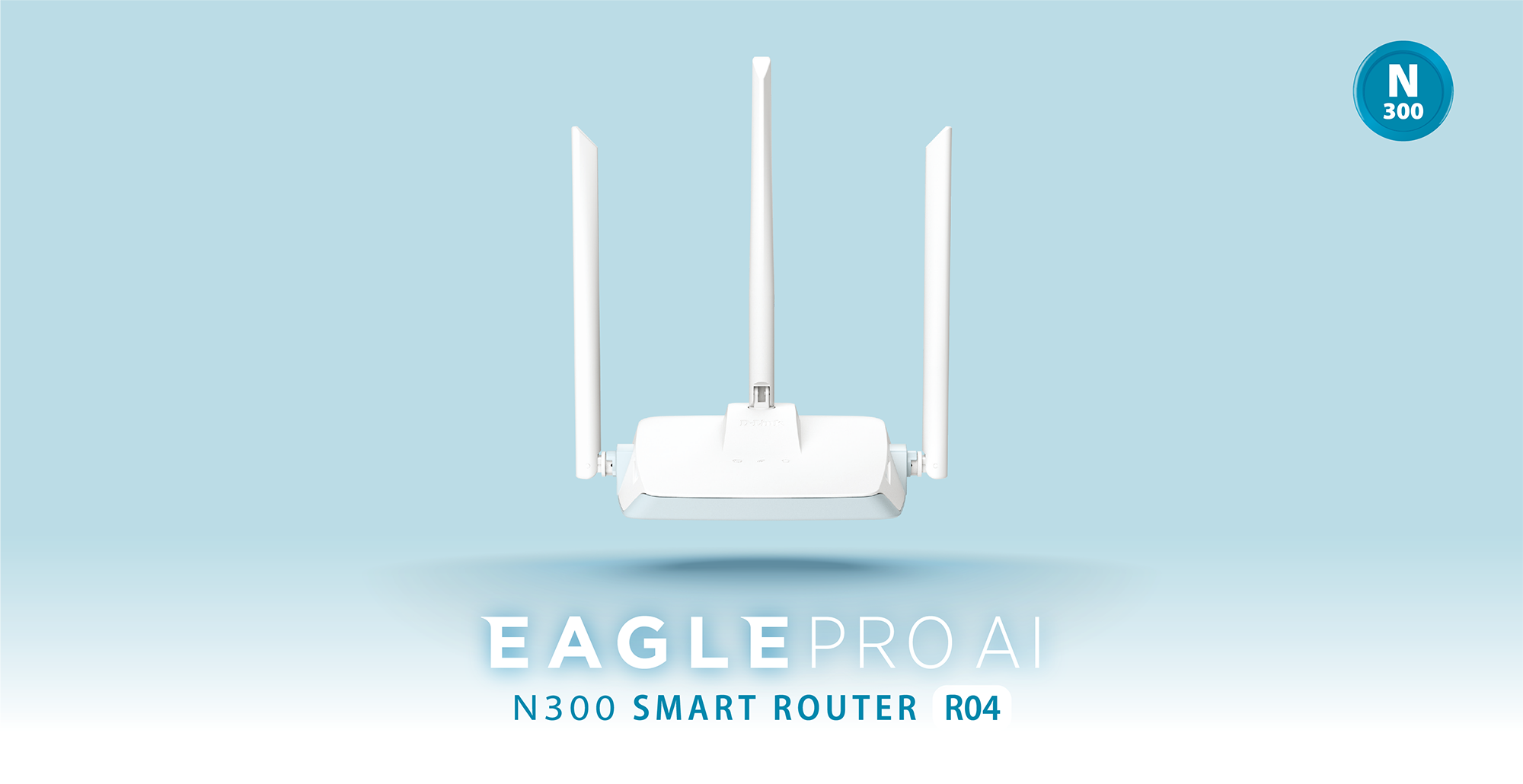

N300 Smart Router

R04

  • Product Status (Revision A1_v130): Live
  • Wi-Fi 4 (802.11n) Technology with 300 Mbps speed
  • 1x 10/100 Fast Ethernet WAN Port
  • 4x 10/100 Fast Ethernet LAN Ports
  • Triple High-Gain Antenna Design for Extended Coverage
  • Supports WPA,WPA2, and the latest WPA3 Wireless Security
  • EAGLE PRO AI features including:
    • AI Wi-Fi Optimizer
    • AI Parental Controls
    • AI Assistant
    • QoS Technology


Download the datasheet.

Where to buy

Optimization

Coverage

Connectivity

Security

Reliable and Affordable Wi-Fi

The R04 has the smarts to handle multiple wireless devices and enable smooth streaming and sharing across your entire home network. Proven cost-effective Wi-Fi 4 (802.11n) technology with 300 Mbps speed provides you the power you need for essential tasks on the internet — from 4K streaming to VoIP calls.

Supports WPA3 – The Latest Wi-Fi Security

The R04 supports the latest WPA3 Wi-Fi Security Protocol, which can help prevent brute-force password hacks, allows for more natural passwords, and secures past transmissions from being read, even if your password is exposed.

Always the Best Connection Possible

AI Wi-Fi Optimizer continuously scans the environment to keep you connected to the cleanest channel available.



Quality of Service

The Quality of Service (QoS) is evaluated data size and data size is used to filter the High and Lower priority data transmission. So, the users can set the manual priority  based on their essentials in EAGLE PRO AI App.



Keep Playtime Safe and Healthy

AI Parental Control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.



Health Mode

  • Schedule Wi-Fi transmission hours to reduce possible effects of electromagnetic radiation
  • Schedule Wi-Fi access hours to maintain a balanced family lifestyle
  • Turn off Wi-Fi entirely to conserve energy

For Everything Wi-Fi, there’s D-Link EAGLE PRO AI

The EAGLE PRO AI App managing your W-Fi has never been easier,
AI Assistant to continuously monitor data usage and provide actionable recommendations and weekly report.

Voice Control works with Google Assistant or Alexa

Easily integrates with Amazon Echo’s Alexa
or the Google Assistant for convenient hands-free voice control.

*Please check availability in your region

google amazon

Antenna
3 x external dipole antennas (5 dBi)
Certifications
CE
FCC
Device Management
EAGLE PRO AI app (iOS and Android)
Web UI
Dimensions
158 x 131.35 x 43.73 mm (L*W*H)
Firewall
1 x DMZ
Anti-spoofing Checking
DoS
IP/MAC Address Filtering
Stateful Packet Inspection
Hardware version
A1

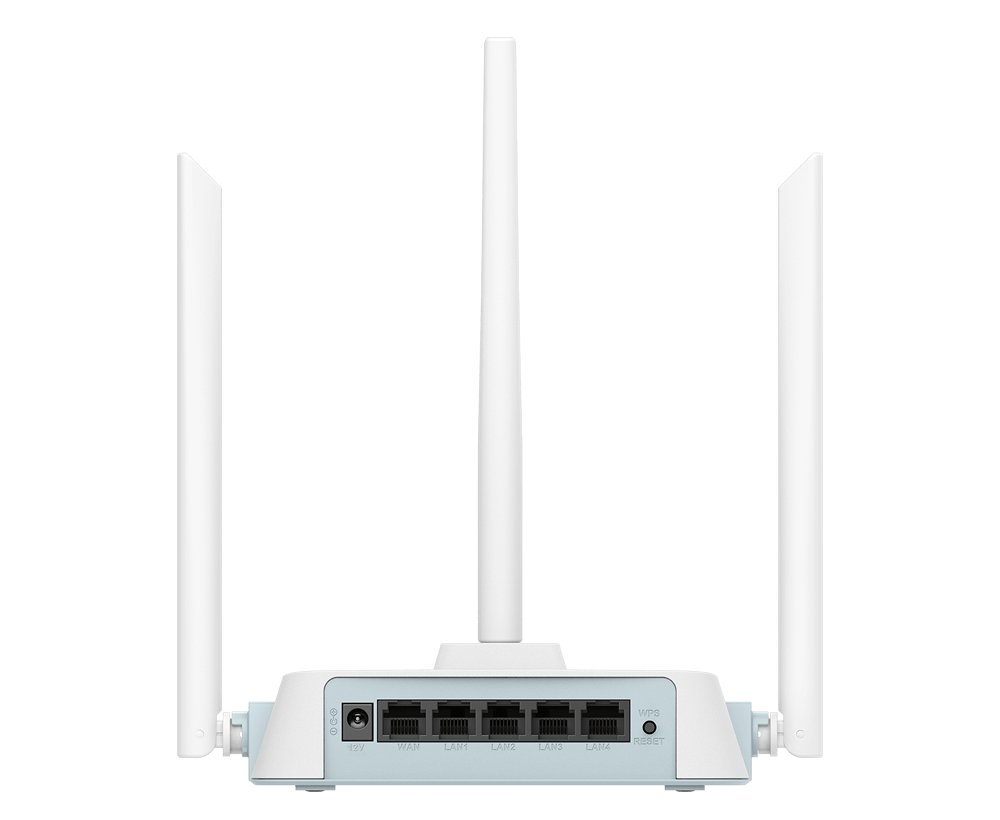

Interfaces
1 x 10/100 Mbps Ethernet WAN port
1 x power connector
1 x Reset/WPS button
4 x 10/100 Mbps LAN ports
Maximum Operating Voltage
12V
Operating Humidity
10% to 90% non-condensing
Operating Temperature
0 to 40 °C (32 to 104 °F)
Power Input
12 V 1A
QoS
D-Link QoS Technology
Security Protocol
WPA/WPA2-Personal
WPA2/WPA3-Personal (WPS not supported)
WPA2-Personal only
WPA3-Personal only (WPS Not supported)
Storage Humidity
5% to 95% non-condensing
Storage Temperature
-20 to 65 °C (-4 to 149 °F)
Voice Assistant
Amazon Alexa
Google Assistant
WAN
DS-Lite
Concurrent session: 32,000
L2TP
PPPoE
PPTP
Supports 802.1p & 802.1q
VLAN tagging and Priority bit
Weight
168 g
Wireless Standard
IEEE 802.11k/v
IEEE 802.11n/g/b
IEEE 802.3u/b
Wi-Fi Data Rate
2.4 GHz Up to 300 Mbps
