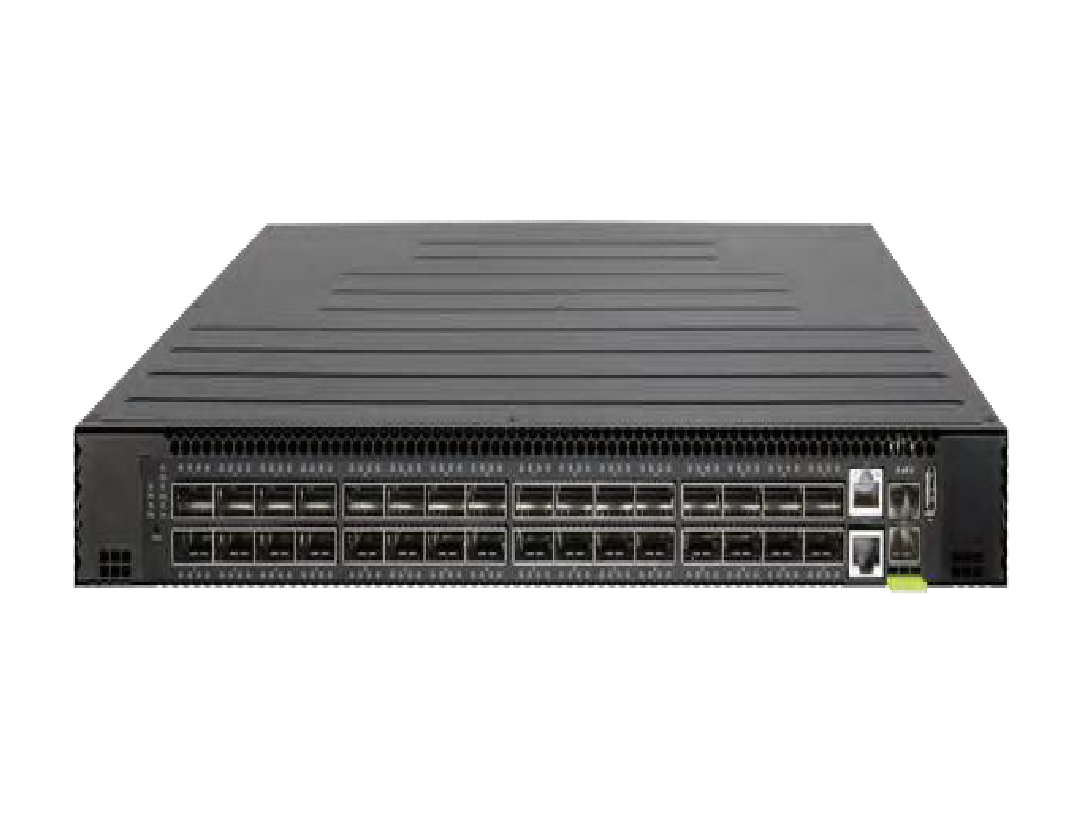

100 Gig Data Center Switch
DTS-F5000-32ZS
- Product Status (Revision IN): Live
- 32 x 100G QSFP28 ports
- Wire-speed, ultra-low latency switching
- Supports Open Network Install Environment (ONIE) for zero-touch installation of network OS
- SDN-enabled with OpenFlow 1.3 support
- Dual AC/DC hot-swappable power supply modules for 1+1 redundancy and load sharing
- Modular, 5+1 hot-swappable fan design
Where to buy
High Availability and Reliability
The switch features a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Load sharing enables both power supplies to evenly distribute load to increase reliability and lifetime. Meanwhile, 1+1 redundancy minimizes downtime in case of a single power supply failure.
Specification
| Interfaces | 32 x 100G QSFP28 ports, 1x USB Type A |
|---|---|
| Console Port | 1 x RJ-45 console port |
| Switching Capacity | 3.2 Tbps |
| Management Port | 11 x RJ-45 1000BASE-T management 2 x SFP+ 10G management ports |
| Max. Forwarding Rate | 1.52 Bpps |
| Packet Buffer Memory | 32 MB |
| MAC Address Table | 32K min./288K max. |
| Maximum Power Consumption | 550 W |
