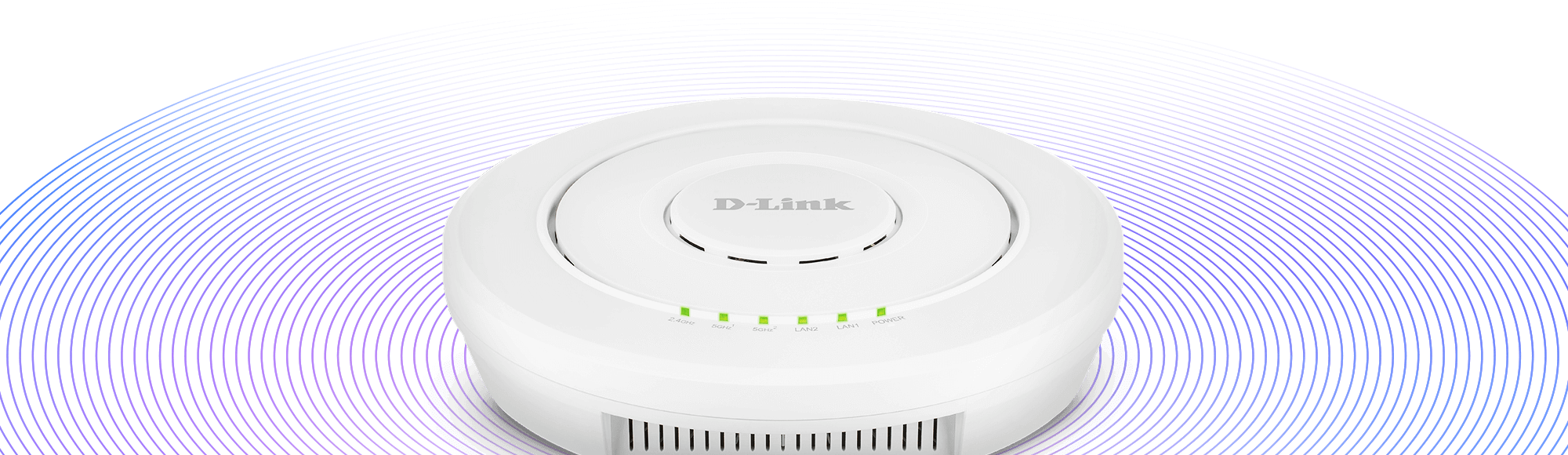

Wireless AC2200 Wave 2 Tri-Band Unified Access Point
DWL-7620AP
- Product Status: Live
- 802.11ac Wave 2, Tri-Band, up to 2.2 Gbps*
- 2 Internal Omnidirectional Antennas
- Up to 64 dynamic VLANs per access point

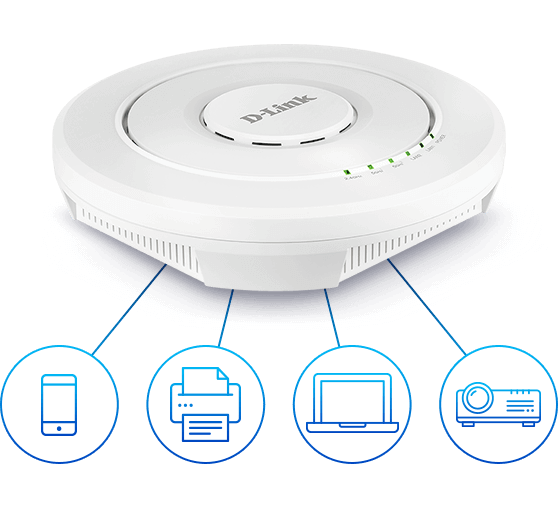

- 802.11k Fast Roaming1, MU-MIMO and QoS with WMM
- Link Aggregation2
![](/middle-east/en/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_02_wirelessspeed.png)

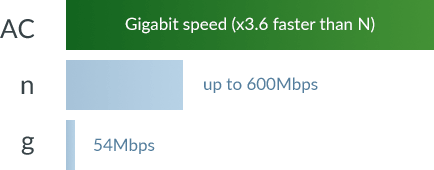

AC2200 Wave 2 Wi-Fi
802.11ac Wave 2 wireless with combined speeds of up to 2.2 Gbps*
![](/middle-east/en/-/media/product-pages/common/product-features/2018/icon_triband.png)

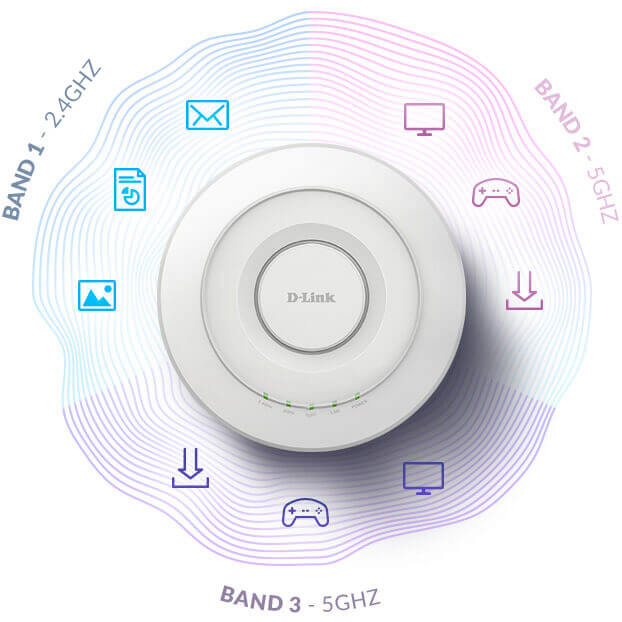

Tri-Band Wi-Fi
Improved throughput and coverage with three bands. Reduces co-channel interference, bringing more reliability in high-density areas.
![](/middle-east/en/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_03_upgradenetwork.png)
802.11k Fast Roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1
![](/middle-east/en/-/media/product-pages/common/product-features/2018/icon_rfmanagement.png)
Automatic Radio Frequency (RF) Management
Greatly reduces RF interference and enables denser AP deployments.
![](/middle-east/en/-/media/product-pages/common/product-features/2018/icon_mumimo.png)
Centrally Managed
Used as a standalone wireless access point, or managed centrally via a D-Link Wireless Controller.
Specs
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Tri-band simultaneous |
Wireless speed
|
2 x 867 Mbps 5 GHz 400 Mbps 2.4 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |

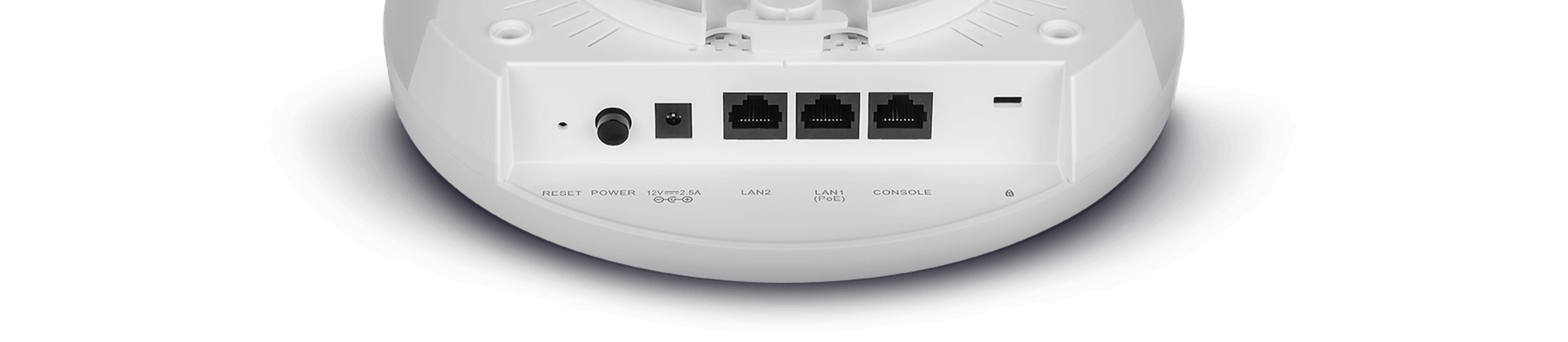

Wired interface
|
2 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) |
Advanced features
|
Fast Roaming MU-MIMO SmartBeam |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
802.1D STP
|
Supported
|
IPv6
|
Supported
|
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
