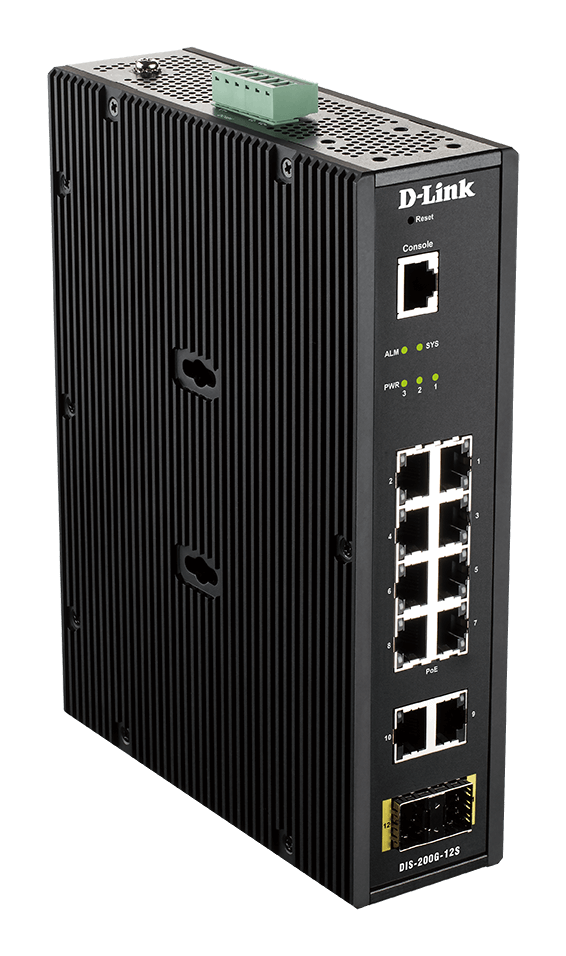

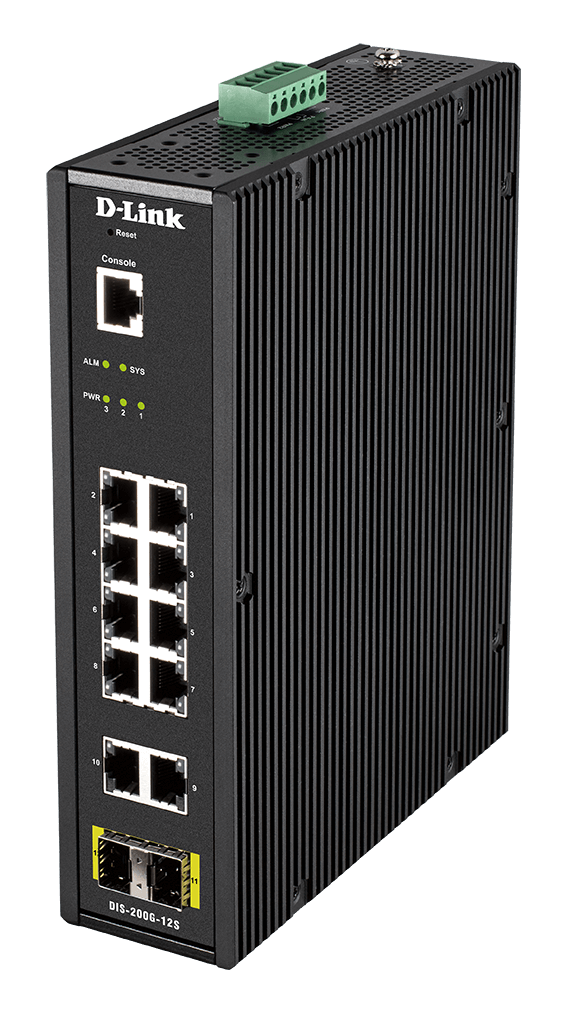

Industrial Gigabit Smart Managed Switch

DIS-200G-12S

  • Product Status: Live

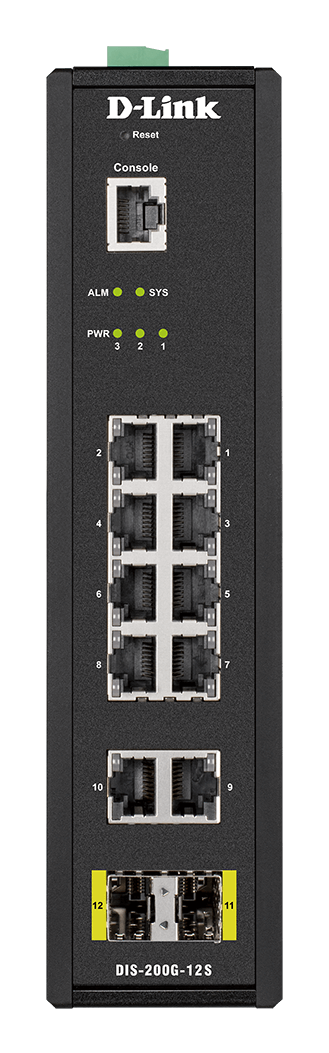

  • 10 x 10/100/1000Base-T ports, 2 x SFP ports
  • RJ-45 Console port
  • Easy-to-control management interfaces and security
  • Withstands severe temperatures
  • Compliant with vibration, shock, free-fall testing

Download the datasheet.

Where to buy

Features

Smart Management

Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

Gigabit Connectivity with SFP ports

Designed with 10 x 10/100/1000BaseT ports and 2 x SFP ports to suit a range of devices and network layouts.

Officially Certified

Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.

Withstands Extreme Temperatures

Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.

High Redundancy and Reliability

ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.

Strong Build

The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

Enhanced IP Surveillance
Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.
Fanless Design

With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Fast Deployment

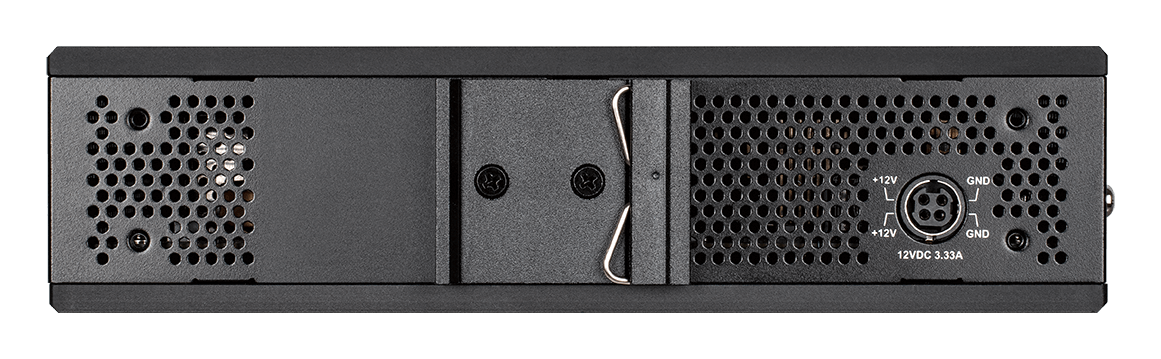

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Discrete Size

Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.

Related Products

Industrial Gigabit Unmanaged Switch with SFP slot
DIS-100G-5SW
Find out more
Industrial Gigabit Smart Managed PoE Switch
DIS-200G-12PS
Find out more
Industrial Gigabit Managed Switch with SFP slots
DIS-300G-12SW
Find out more
Type
Industrial
Smart managed
Number of ports
5 to 14 ports
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
SFP
Switching capacity
24 Gbps
Fanless
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
DIN rail
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
Environmental
Free Fall: IEC60068-2-32
Shock: IEC60068-2-27
Vibration: IEC60068-2-6
MAC address
8K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.3ad
VLAN group (max static)
128
VLAN type
GVRP
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Voice VLAN
Number of QoS queues per port
4
Encryption protocol supported
SSH
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
LLDP
Supported
