Wireless AC1200 Wave 2 In-Wall PoE Access Point

DAP-2620

  • Product Status (Revision A1): End of Sale

There's a new version of this product:

Trådlös AC1200 Wave 2 Väggmonterad PoE accesspunkt

DAP-2622

See Newer Product

There's a new version of this product:

DAP-2622

Trådlös AC1200 Wave 2 Väggmonterad PoE accesspunkt

Overview

  • Kompatibel med Nuclias Connect för centraliserad nätverksadministration
  • IEEE 802.11ac Wave 2 trådlöst, upp till 1200 Mbps
  • MU-MIMO med beamforming
  • Gigabit LAN-port och stöd för 802.3at PoE
  • Väggplatta för installation i eldosor
  • WPA/WPA2 Personal/Företags-kryptering
See Newer Product

Overview

  • Kompatibel med Nuclias Connect för centraliserad nätverksadministration
  • IEEE 802.11ac Wave 2 trådlöst, upp till 1200 Mbps
  • MU-MIMO med beamforming
  • Gigabit LAN-port och stöd för 802.3at PoE
  • Väggplatta för installation i eldosor
  • WPA/WPA2 Personal/Företags-kryptering
See Newer Product
Wave 2 Wi-Fi with Band Steering

Fast wireless speeds of up to 1200 Mbps1. Automatically steers traffic to the fastest, least congested band.

MU-MIMO och beamforming

Gör att flera enheter kan anslutas samtidigt för förbättrad effektivitet. Och skapar riktade Wi-Fi-anslutningar för överlägsen Wi-Fi-bandbredd.

In-Wall Design

Wall-plate mount and discreet design to convert an Ethernet wall socket into an access point. Includes an RJ11 phone line port.

Hög säkerhet med centraliserad nätverksadministration

Använd som en fristående accesspunkt eller administrera centralt via den kostnadsfria programvaran Nuclias Connect.

Multiple Operational Modes

Use as an access point (AP), Wireless Distribution System (SDS), WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater.

Built-in security

Supports wireless LAN segmentation, VLAN, and Personal and Enterprise versions of WPA2/WPA.

Easy-mount setup with PoE

802.3at Power over Ethernet (PoE) enables the device to be deployed with a single cable and where power outlets aren't available.

Turn an Ethernet socket into fast Wi-Fi.

Bring centrally manageable dual-band Wi-Fi to hospitals, hotels, student accommodation and any premises with Ethernet sockets in the rooms. Easily convert an Ethernet socket into an access point with cutting-edge 802.11ac Wave 2 Wi-Fi speeds, and greater network efficiency and security.

Reliably faster Wireless AC performance.

Designed for reliable, high-speed wireless connectivity using the latest 802.11ac Wave 2 technology. It uses maximum wireless signal rates of up to 867 Mbps over the 5 GHz band and 300 Mbps over the 2.4 GHz band1.

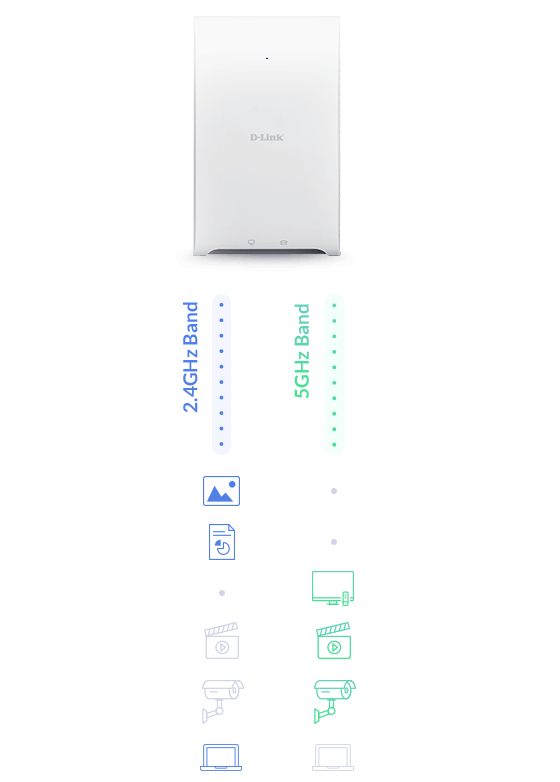

 Band SteeringBand steering
Detects dual-band capable devices and automatically connects them to the less congested, faster 5 GHz band.
 MU-MIMOMU-MIMO
Sends high-bandwidth Wi-Fi to multiple devices at the same time, for greater network data efficiency and a superior Wi-Fi experience for your clients.

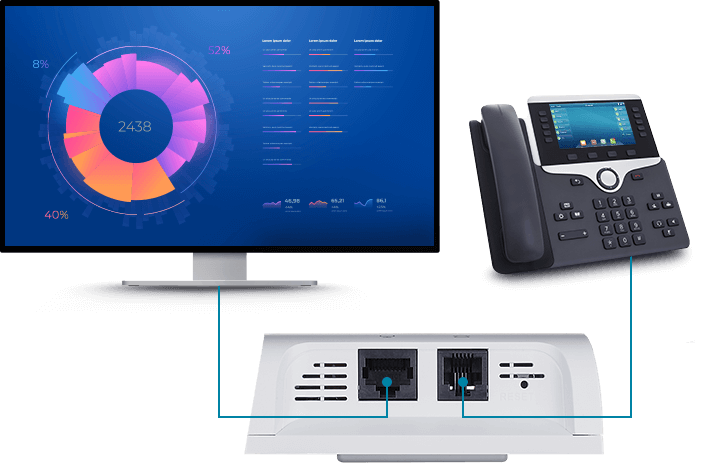

Flexible ports for data and a phone line.

Utilise Gigabit Ethernet in an instant. Connect to a computer or smart tv in a room by utilising the Gigabit LAN port, and bring a phone to a room by using the RJ11 port at the bottom of the device.

Hassle-free installation

Convert an Ethernet wall socket into a fast Wi-Fi hotspot without any hassle. Its discreet, wall-plate design makes installation over an Ethernet wall socket easy and painless.

Integrated 802.3af Power over Ethernet (PoE) support makes for more convenient deployments using a single Ethernet cable, so that no additional cables are required when connecting to a PoE Switch. Simply remove the Ethernet wall socket and replace it with the DAP-2620.

Strong security.

Create highly secure wireless networks with Personal and Enterprise versions of WPA, WPA2. The AP also supports a built-in RADIUS server, MAC address filtering, wireless LAN segmentation, captive portal with industry-standard authentication, and wireless broadcast scheduling to protect the network.

Your network, your way.

Customise your network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.

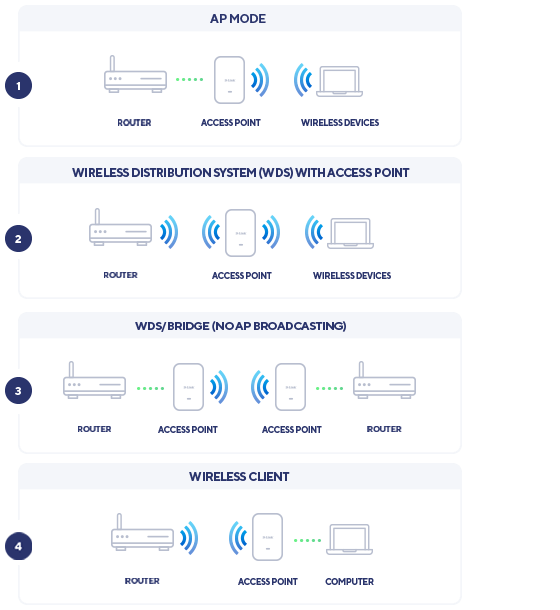

Configure the AP to optimise network performance based on any one of its multiple operational modes:

Access Point
Add wireless connectivity to an existing wired network.

Wireless Client
Add wireless connectivity to one device which doesn’t have a Wi-Fi adapter.

WDS
Wirelessly combine two separate networks.

WDS with AP
Wirelessly combine two separate networks while also providing wireless connectivity to both networks.

Free Nuclias Connect remote network management software.

Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)2 provides hardware-based, centralised network management.



Learn more

Vi är här för att hjälpa dig

Över 35 år inom nätverksbranschen

Innovativa heltäckande lösningsexperter för småföretag till stora koncerner över hela världen.

Det är enkelt att prata med oss

Kompetent lokal support i 16 länder. Våra supportteam är redo att hjälpa dig.

D-Link Begränsad Livstidsgaranti

Kvaliteten och tillförlitligheten hos D-Links produkter gör att vi kan tillhandahålla en branschledande begränsad livstidsgaranti vid varje registrering.

Related Products

Nuclias Connect Hub
DNH-100
Find out more
Nuclias Connect
DNC-100
Find out more
Wireless AC1300 Wave 2 DualBand PoE Access Point
DAP-2610
Find out more
Wireless AC1200 Wave 2 Dual-Band PoE Access Point
DAP-2662
Find out more
Wireless AC1750 Wave 2 Dual-Band PoE Access Point
DAP-2680
Find out more
Type
Software Managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
2 dBi for 2.4 GHz
2 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
1 x RJ11
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client

1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

2 Available Q2, 2020. Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwidth is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwidth is recommended.

This product was phased out on: 07/05/2021
Version Date Type File Size
Datasheet EN - PDF 0.54mb Download
Version Description Date Type File Size
Manual 1.00 RevA1 Product Manual 2020-05-20 - - Download
Version Description Date Type File Size
QIG 3.00 RevA1 Quick Installation Guide 2020-11-04 - - Download
QSG 2.00 RevA1 Quick Setup Guide 2020-02-06 - - Download
QIG 2.00 RevA1 Quick Installation Guide 2019-09-10 - - Download
QSG 1.00 RevA1 Quick Setup Guide 2019-09-10 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.00 RevA1 Firmware 2019-10-29 - Download
Version Description Date
Nuclias Connect Free remote centralised network management software 2019-09-09 Download
Version Description Date
CE doc 3.00 RevA1 CE document 2020-11-09 Download
CE doc 2.00 RevA1 CE document 2020-01-31 Download
CE doc 1.00 RevA1 CE document 2019-08-08 Download
