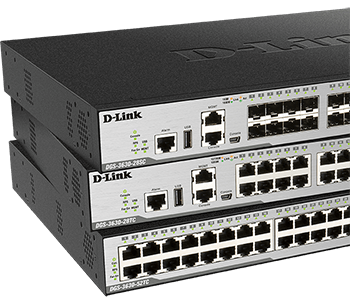

Gigabit L3 Stackable Managed Switches
DGS-3630 Series
- Product Status (Hadware Version): Live
Where to buy
Stackable Managed Switches
- Designed for Small to Medium Businesses, Enterprises and ISPs
- Deliver high performance, flexibility, fault tolerance, and advanced software features
- Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
- High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
- DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.
![](/si/sl/-/media/product-pages/dgs/3630/dgs_3630_series.png?h=297&w=350&la=sl-SI&hash=FACFFDD557FDB3BCEC900AA8A7C366E2)

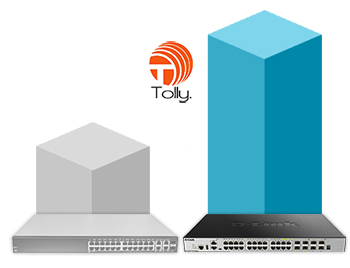

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
Download the full report
![](/si/sl/-/media/product-pages/dgs/3630/tolly.jpg?h=268&w=350&la=sl-SI&hash=35905CF8C63F9369386A8E745BA7F367)

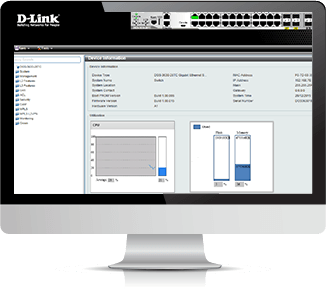

Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
![](/si/sl/-/media/product-pages/dgs/3630/monitorandscreenshot.png?h=289&w=326&la=sl-SI&hash=6E514D4431685A1A47C60DD7533C6FAE)

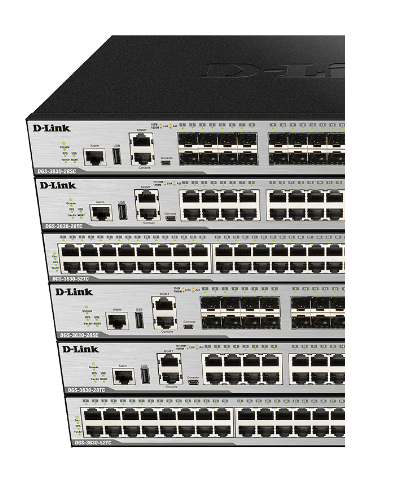

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
![](/si/sl/-/media/product-pages/dgs/3630/dgs_3630_stackable.png?h=491&w=396&la=sl-SI&hash=3C21600314529A33CEF04C55EDA74D0D)
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

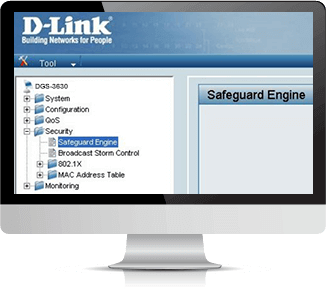

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
![](/si/sl/-/media/product-pages/dgs/3630/safeguard_engine.png?h=289&w=326&la=sl-SI&hash=F78FF09F2C6B943133D3CC7251317CBD)

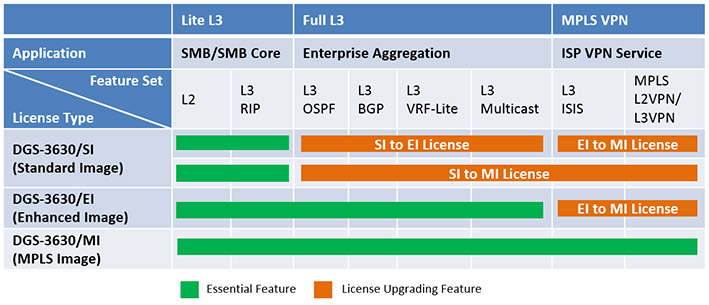

Multiple Software Images*
The DGS-3630 Series is designed for use with three different software images:
- Standard Image (SI)
- Enhanced Image (EI)
- MPLS Image (MI)
Please refer to the Specifications tab or download the product datasheet for more information.
![](/si/sl/-/media/product-pages/dgs/3630/licences.jpg?h=305&w=709&la=sl-SI&hash=59901BFD705C487C314A3EDAB21DB842)
*Please check with you local D-Link sales office for MPLS license availability
Product Awards
![](-/media/images/awards/nl_awards/dgs_3630_28pc/techzine_silver_award.png)
Related Products
![](/si/sl/-/media/product-pages/dv/700/dv700.png?h=100&w=178&la=sl-SI&hash=2027CFCA34B551CE2EE94B9993B92923)
![](/si/sl/-/media/product-pages/dem/431xt/images/dem431xtd1image-lside.png?h=100&w=114&la=sl-SI&hash=C8B0D0BFF5A4426BDC492C8D0027753D)
![](/si/sl/-/media/product-pages/dem/432xt/images/dem432xtd1image-lfront.png?h=100&w=280&la=sl-SI&hash=53D0F9D01C4755D1BFF478209B55067A)
![](/si/sl/-/media/product-pages/dem/310gt/dem-310gt-left.png?h=100&w=178&la=sl-SI&hash=B433031D033FC67BA0730290C853A71F)
![](/si/sl/-/media/product-pages/dem/311gt/dem311gtg1image-lside.png?h=100&w=178&la=sl-SI&hash=2EED77605C2659445C56B22DB8A26FB0)
Specs
Type
|
Managed |
---|---|
Number of ports
|
16 to 30 ports 48 to 54 ports |
Layer
|
Layer 3 |
Stacking
|
Physical Virtual |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
10GbE SFP+ |
Switching capacity
|
128 Gbps 176 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
24 48 |
PoE power budget
|
See datasheet See datasheet |
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Physical stacking
|
Up to 80 Gbps bidirectional bandwidth Up to 9 devices |
Virtual stacking (up to 32 devices)
|
Supported
|
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
68K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.1AX |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Double VLAN (Q-in-Q) Voice VLAN |
IPv4/IPv6 routing table
|
IPv4 - 32K IPv6 - 16K |
IPv4/IPv6 forwarding table
|
IPv4 - 32K IPv6 - 16K |
IP interfaces
|
256 |
Static route for IPv4/IPv6
|
IPv4 - 512 IPv6 - 512 |
IPv6 tunneling
|
Supported
|
Multicasting
|
Supported
|
PIM-SM
|
Supported
|
DVMRP v3
|
Supported
|
RIP v1/v2
|
Supported
|
RIPng
|
Supported
|
OSPF
|
Supported
|
BGP
|
Supported
|
OSPFv3
|
Supported
|
MPLS
|
Supported
|
VPLS
|
Supported
|
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
8 Kbps minimum granularity |
Three colour marker
|
8 Kbps minimum granularity |
ACL type
|
Egress Ingress VLAN-based |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
Microsoft NAP support
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
sFlow
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
ICMPv6
|
Supported
|
802.3ah
|
Supported
|
802.1ag
|
Supported
|
ITU-T Y.1731
|
Supported
|
