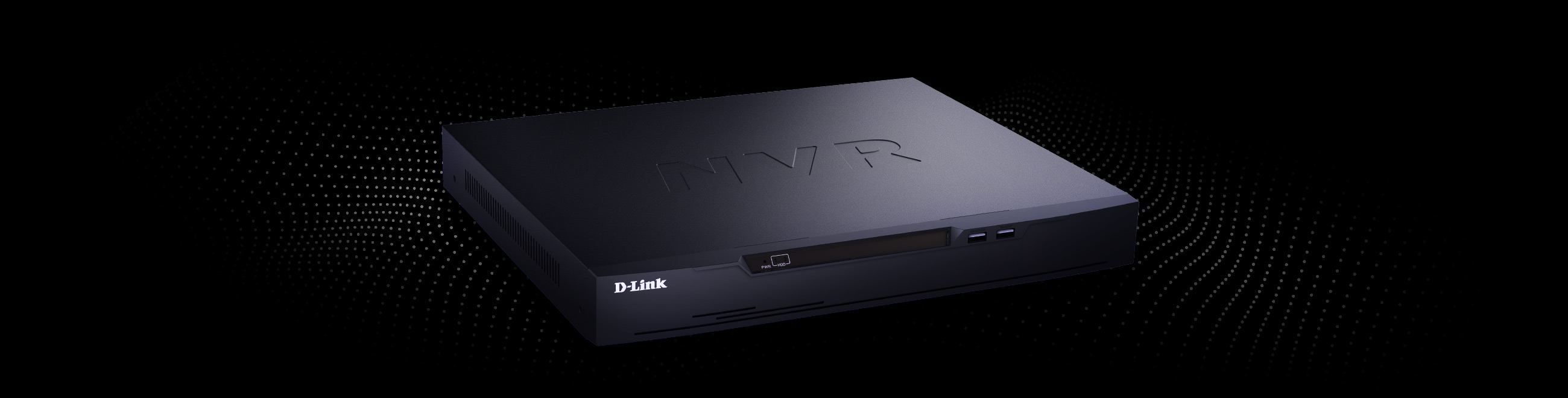

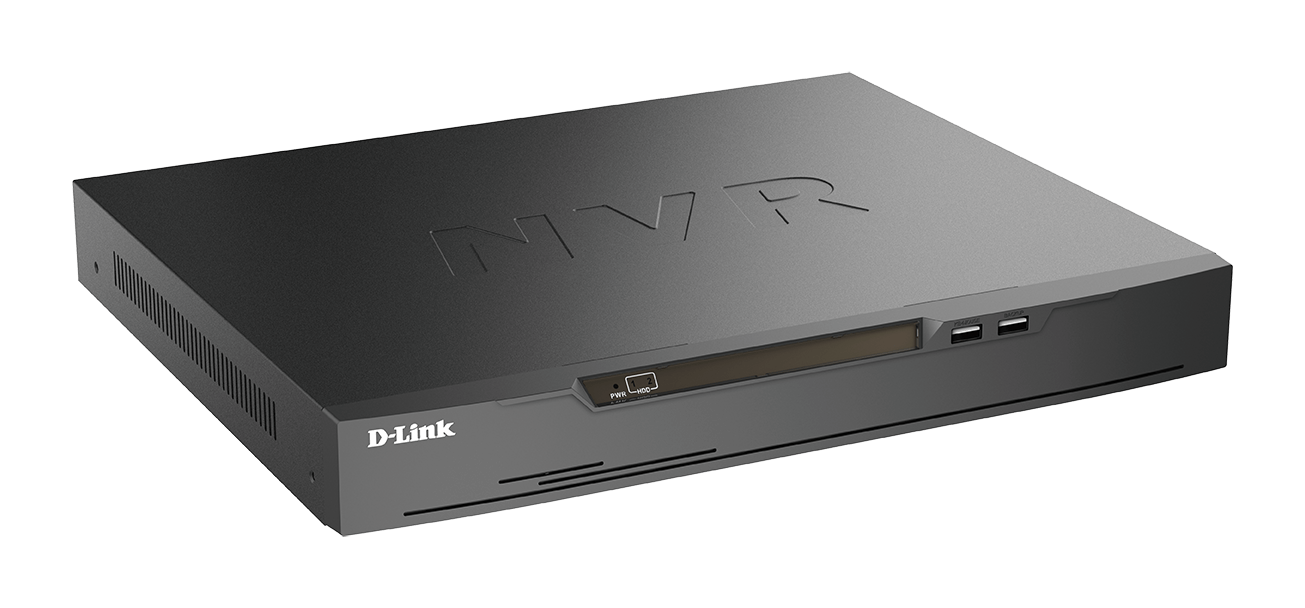

DNR-4020-16P JustConnect 16 Channel H 265 PoE Network Video Recorder

DNR-4020-16P

  • Product Status: End of Sale

IP surveillance in a box.

All-in-one solution that allows businesses to connect and power up to 16 cameras, and simultaneously record and view real-time video streams from a local network or remotely over the Internet.

All-In-One Solution

Standalone NVR solution with no need for additional computer or software

16-Channels

Simultaneously record and view real-time video streams from up to 16 cameras

PoE Capable

16 x 802.3af PoE ports with a total PoE power budget of 120 W

High Efficiency Video Coding

Support for the latest H.265 standard to significantly reduce bandwidth and storage requirements

Dual Bay SATA

Up to 16 TB storage with 2 x SATA 3.5” HDD interface, each supporting up to 8 TB capacity

User-Friendly Interface

Provides 16 channels of simultaneous live view, recording, playback, and PTZ control

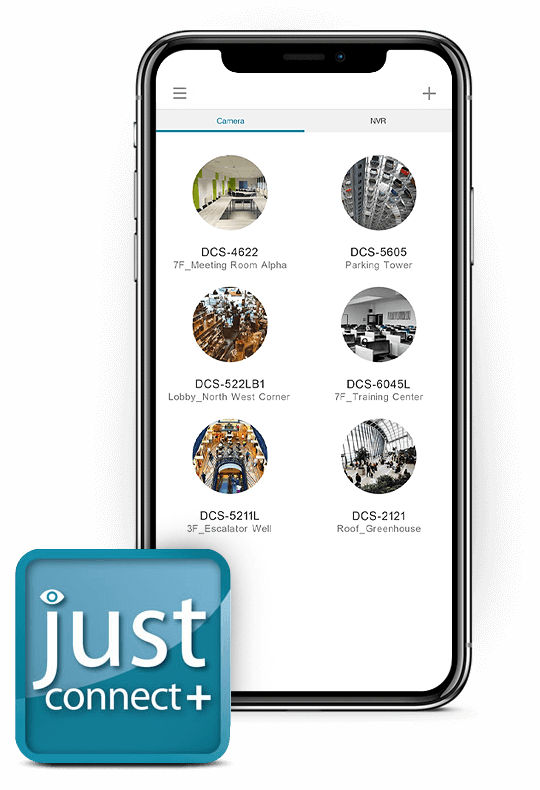

JustConnect+ App

Mobile app allows easy and remote access on a mobile device

2-Year D-Link Warranty

You're protected by one of the global leaders in the industry

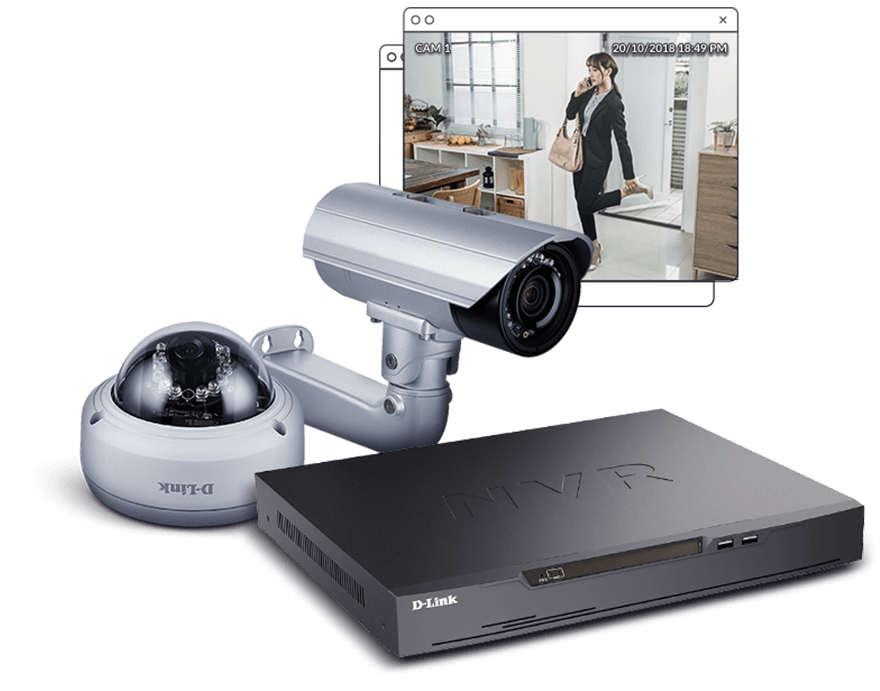

Automated Surveillance.

The DNR-4020-16P supports multiple recording modes including continuous, scheduled and event-based recording. Motion detection or sensors, such as on a door or window, connected to the Alarm In ports can automatically initiate event-based video recording.

User-defined scheduled recording and continuous recording will automatically overwrite the oldest footage to ensure the surveillance system continues to record the most up-to-date footage.

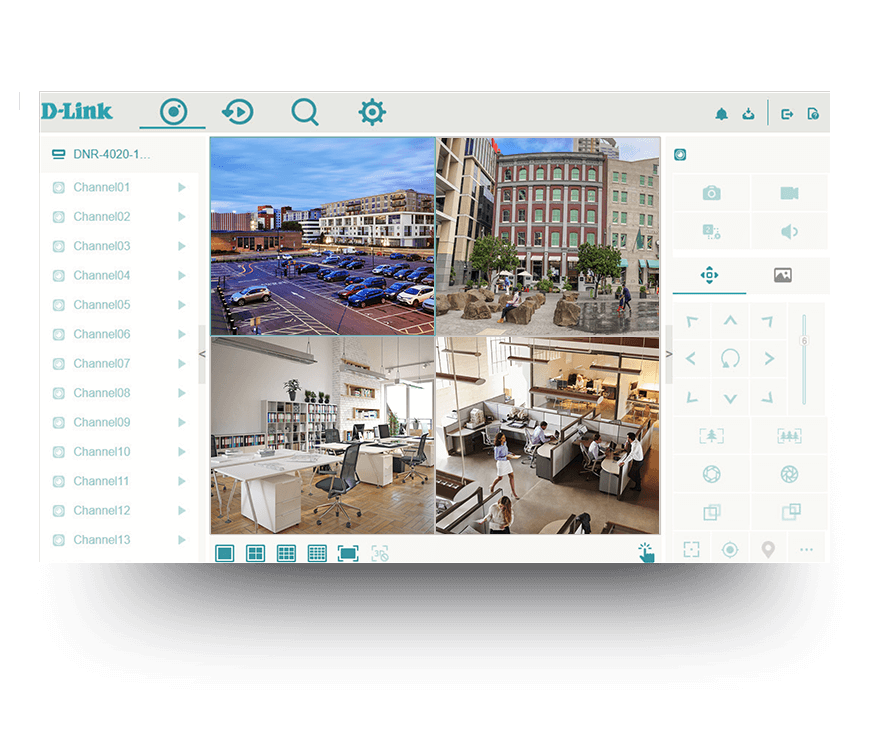

User-Friendly Interface.

Manage your surveillance network of up to 16 cameras from an easy-to-use GUI that provides real-time monitoring and controls.

The flexible Live View options allow you to see multiple cameras simultaneously with the option to view a single camera on full screen with two-way audio support. Advanced search features help administrators to find the specific footage they need quickly.

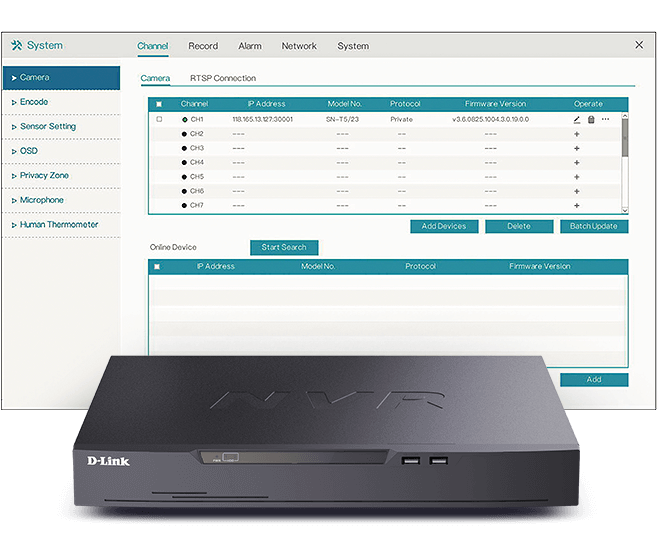

Extensive Monitoring and Recording Features.

The DNR-4020-16P’s intuitive interface allows for easy configuration including compression, resolution, and frame rate for all connected cameras. Support for multiple encoding formats provides administrators with the flexibility to prioritise storage space and video quality.

Remote Access with Computer or Mobile Device.

The DNR-4020-16P allows users to remotely view and manage the surveillance system over the Internet via the web, giving administrators access to live view, recording, playback, and camera control.

The free JustConnect+ mobile app allows anywhere access straight from your smartphone or tablet.

We're here to help.

Over 35 years in the networking industry

Innovative end-to-end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

2‑Year D‑Link Warranty

You're protected by one of the global leaders in the industry.

Specs

Channel Number
16 channels
Compression Format
H.264
H.265
Video Output
HDMI
VGA
Display Mode
1, 4, 6, 9, 10, 13, 16 split screen
PTZ Control
Supported
Audio
2-way
Recording Type
Digital Input
Edge Motion Detection by Camera
Manual
Motion Event
Schedule
Post-Recording Period
30/40/50/60 seconds
Audio Recording
Supported
Auto/Scheduled Recycling
Supported
Simultaneous Playback
16 channels
Video Control
Play, stop, pause, forward, backward, next, previous
Digital Zoom
4X
Audio Control
Supported
Video Search
Camera
Event
Time
Video Export Format
MP4
Event to E-mail
Supported
Event to Alarm
Supported
Event by Signal Lost
Supported
Client Viewer
JustConnect+ App
Web browser
Remote View
Supported
Playback Viewer
Playback manager via browser
Supported Camera
D-Link
Number of HDD Bay
2
HDD Configuration
JBOD
Network Interface
1 x Gigabit port
Backup Options
USB
This product was phased out on: 29/10/2022
