Connettività completa ai margini della rete
Dubbele voedingsingang
6 kV overspanningsbeveiliging beschermt alle Ethernet-poorten tegen overspanning
De corrosiebestendige stalen behuizing en geharde componenten zorgen voor betrouwbare werking in veeleisende omgevingen
Het ventilatorloze ontwerp vermindert het risico op componentstoringen die de MTBF kunnen beïnvloeden en verlaagt de onderhouds- en downtimekosten
Energy Efficient Ethernet (EEE) vermindert het energieverbruik en helpt kosten te besparen, vooral in omgevingen die continu in bedrijf zijn

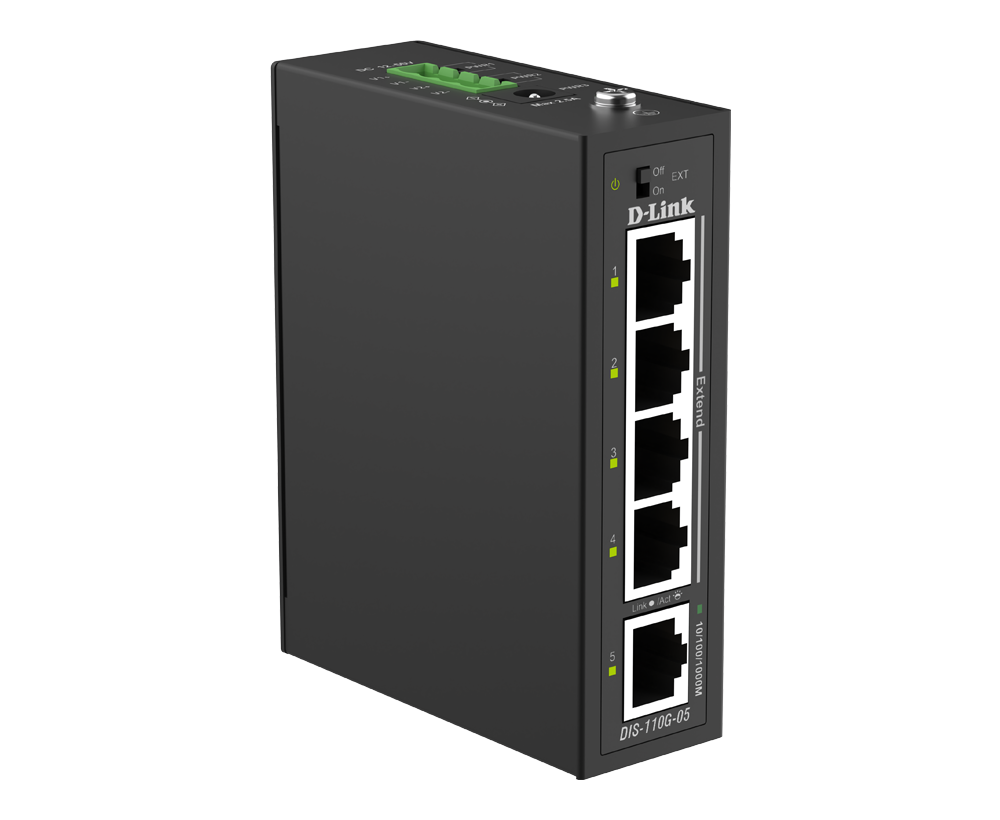

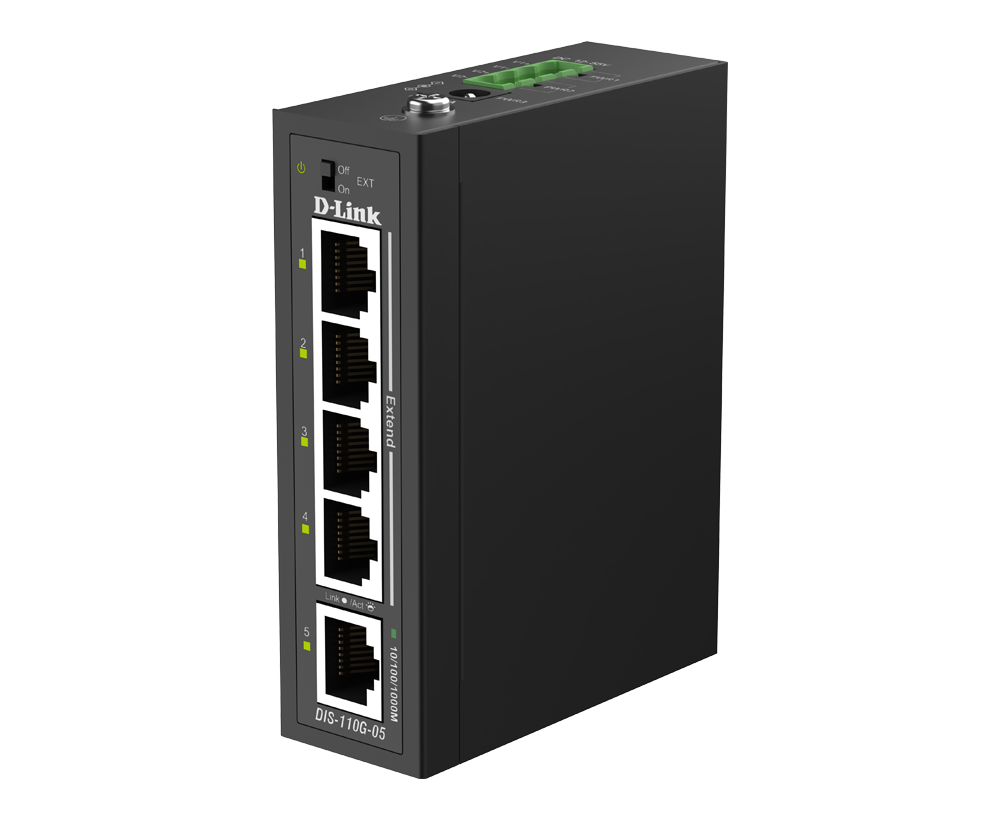

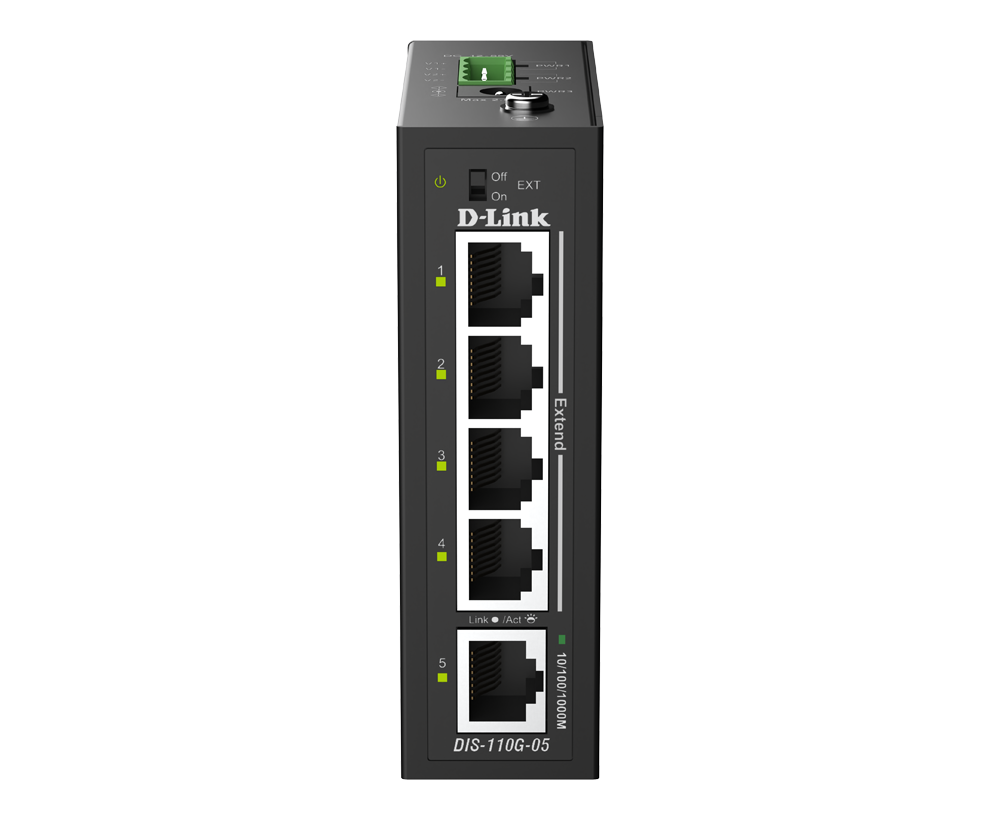

The DIS-110G-05 is designed to fulfil the edge connectivity with scalable flexibility across remote sites. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

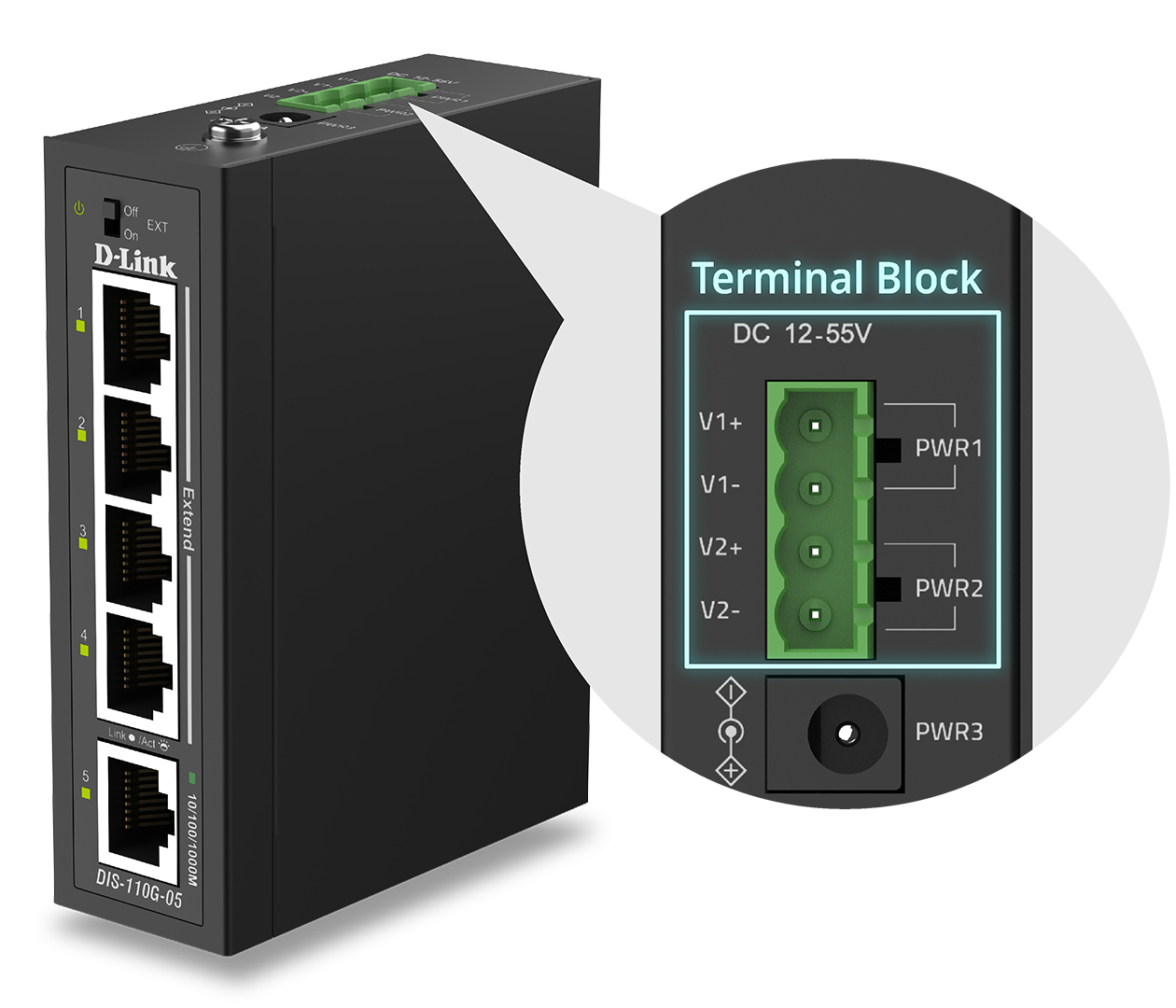

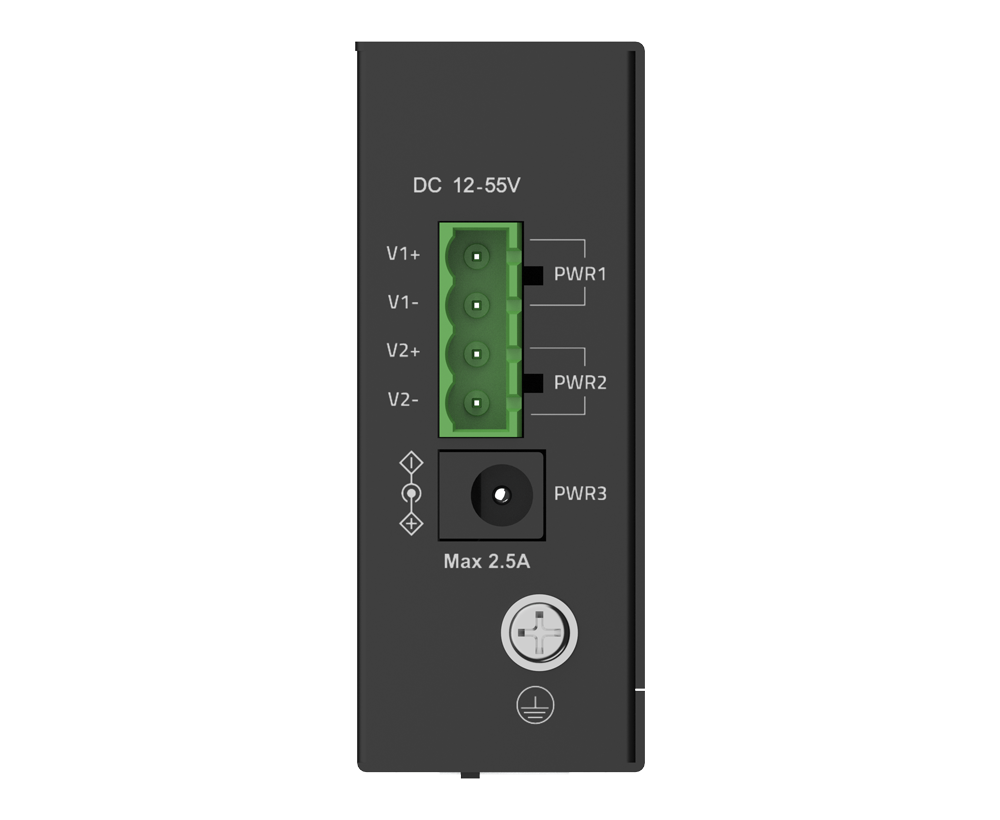

The DIS-110G-05 is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimising shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 12 – 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Breed
Spanning
Redundant Power Supply
Oververhittingsbeveiliging
Anti-Reverse Protection
Stevige
Verbinding

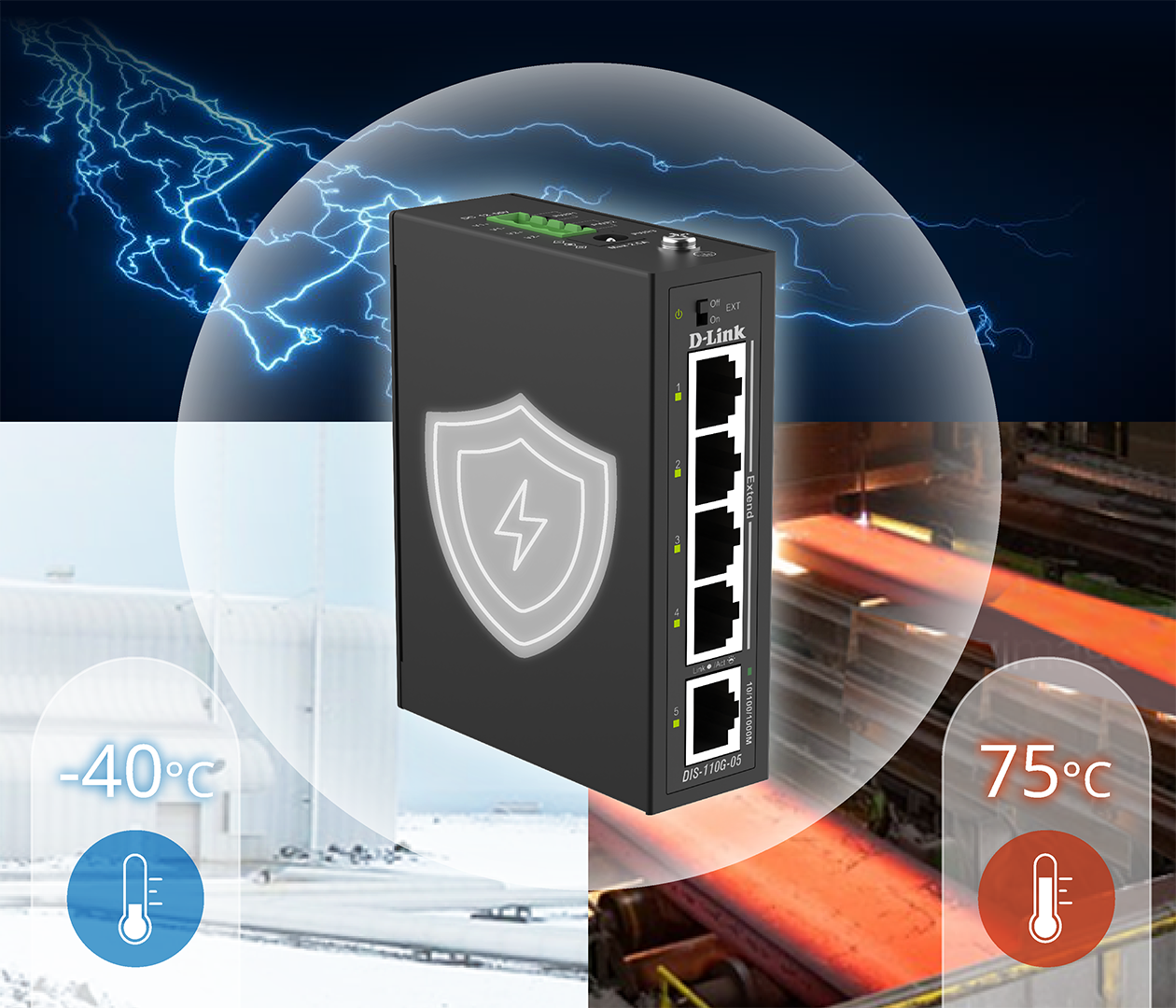

The DIS-110G-05 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

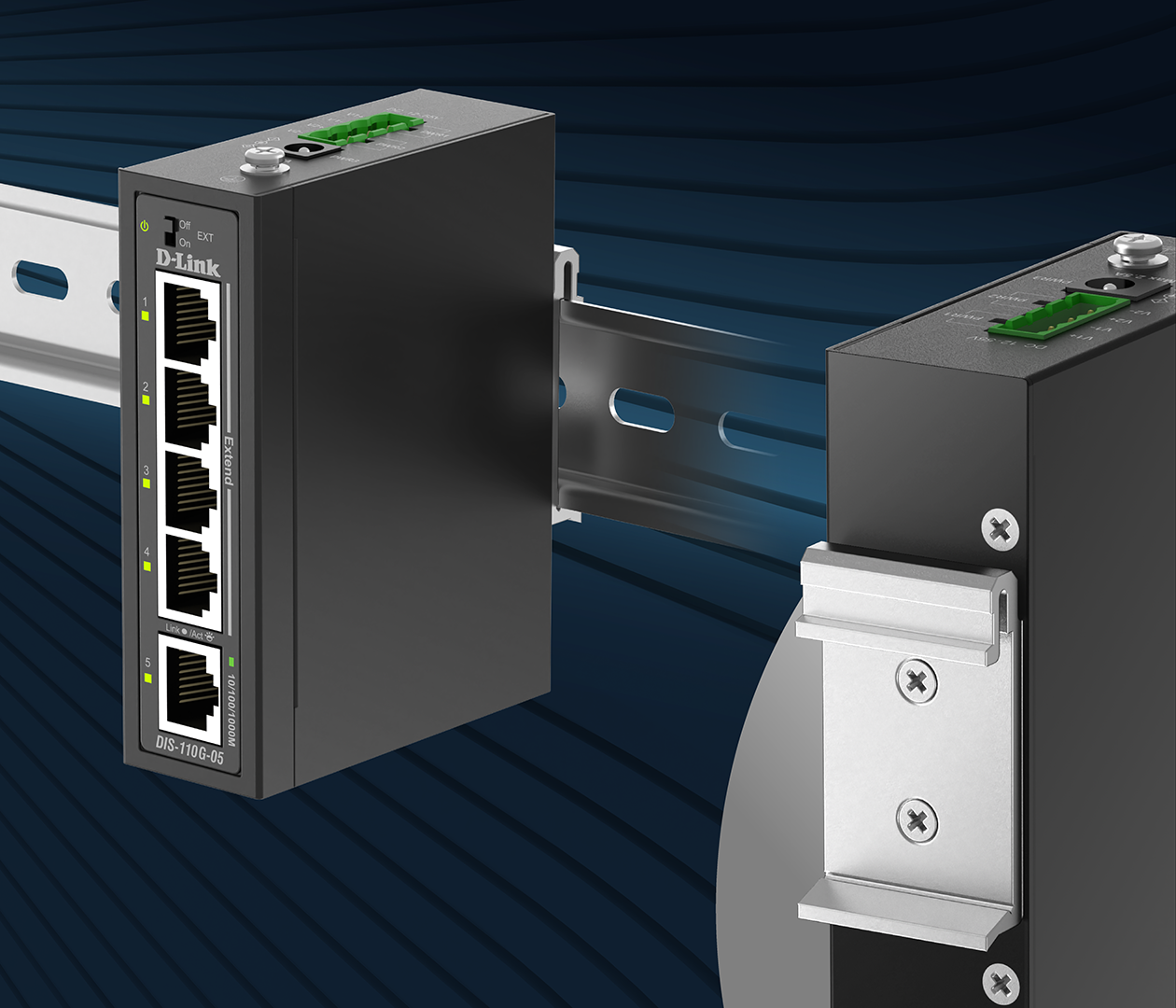

The DIS-110G-05 offers true plug-and-play simplicity, just connect the cables and power it up, with no configuration required. It’s an effortless way to quickly and efficiently set up a network, making it ideal for a wide range of field applications. Its compact size and supports DIN-rail mounting, saving space and allowing for easy, organised installation within industrial control cabinets, fit seamlessly into any industrial equipment infrastructure.
De DIS-100G-06 is een industrial unmanaged switch, uitgerust met vier 1G-poorten en twee SFP-poorten, wat zorgt voor een eenvoudige plug-and-play implementatie. De SFP-poorten ondersteunen gegevensoverdracht over lange afstanden, waardoor de afstandsbeperkingen van traditionele Ethernet-bekabeling worden weggenomen. Met een betrouwbare, hoogwaardige werking zorgt hij voor realtime gegevensoverdracht en naadloze connectiviteit voor toepassingen zoals kiosken, digital signage, LED-displays en meer.
Business
Router
4G M2M Router
Aggregatie Switch
Industrial
Switch
Access
Point
City Surveillance
Building Automation
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
15K |
|
Power Supply Type
|
DC:12~55V Dual input |
|
Type of Uplink Ports
|
1G RJ-45 |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
