Layer 3 Stackable 10G / 100G Managed Switches

DXS-3610-54S

  • Product Status (Revision A1_v104): Live

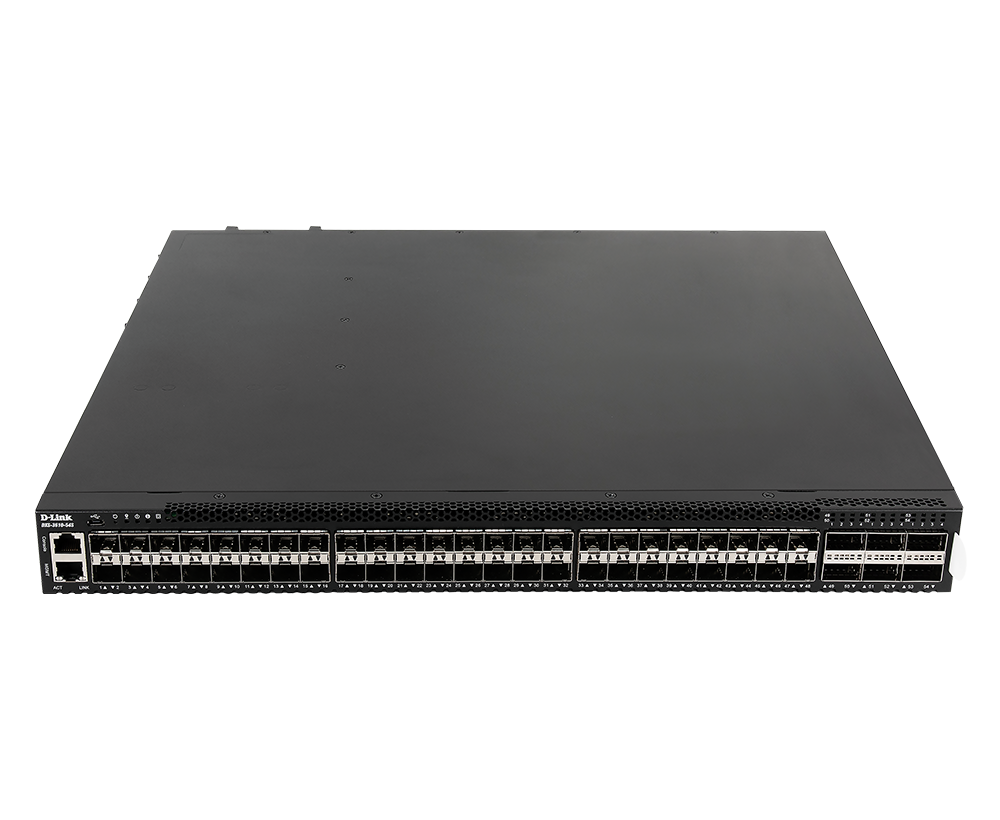

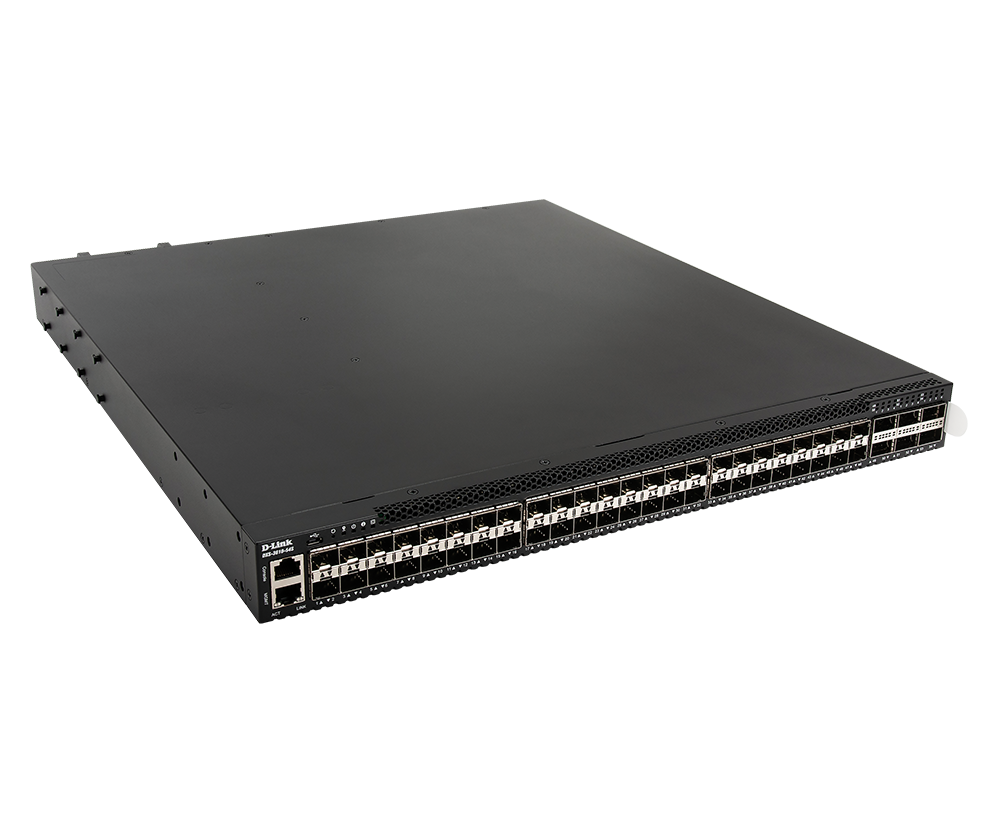

  • High port density: 48 x 10 GbE SFP+, 6 x 100G QSFP+ ports
  • Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
  • OpenFlow 1.3 compliance for SDN-enabled network compatibility

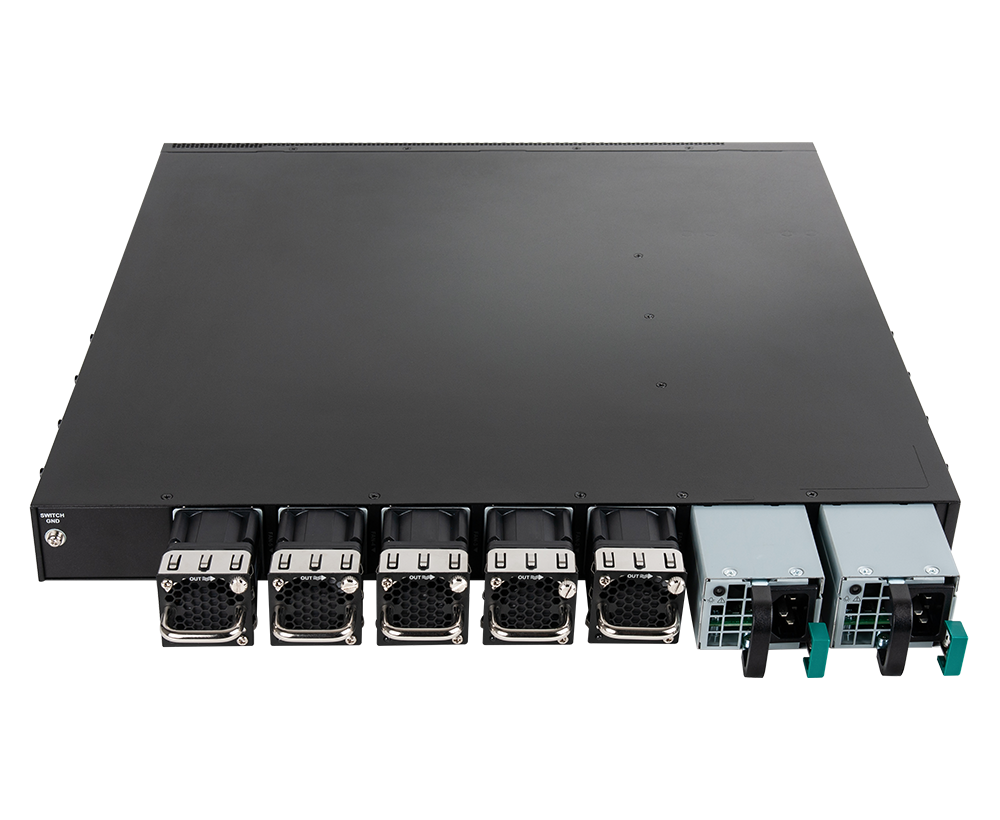

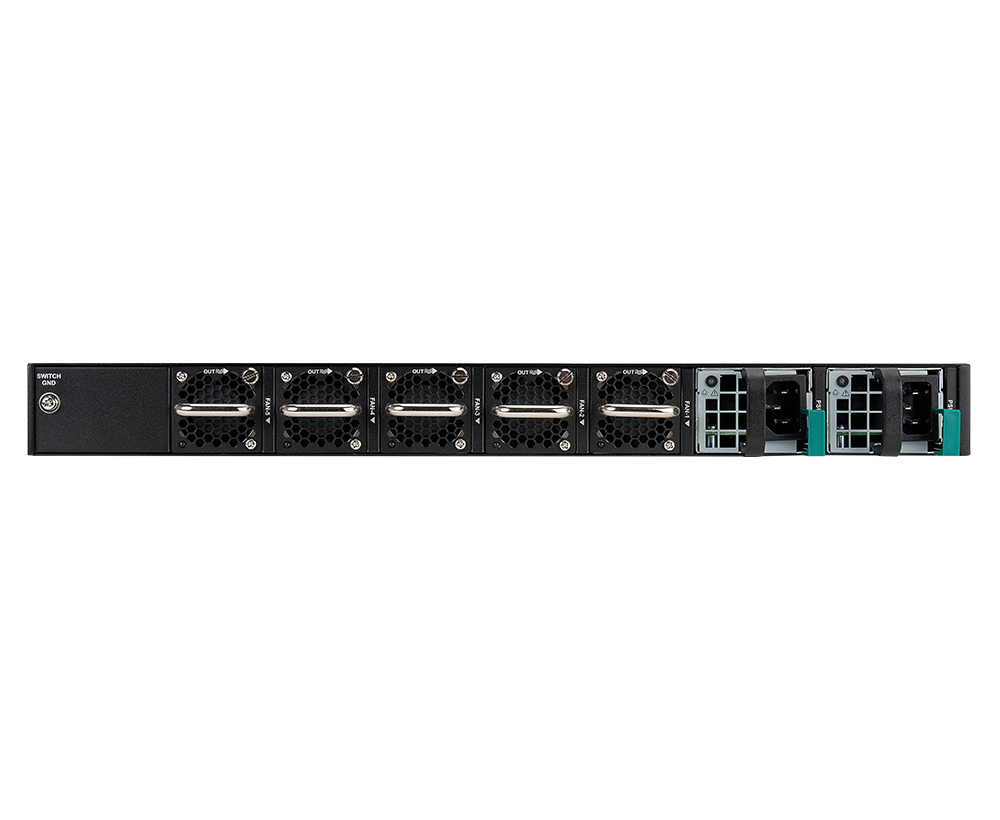

  • Modular PSU (1+1) and fan (N+1) with load sharing capabilities
  • Switch locator LED and ID tag for maintenance convenience
  • Upgradable license for full L3 and MPLS applications

Download the datasheet.

Where to buy

OpenFlow Switching that Stacks Above the Competition

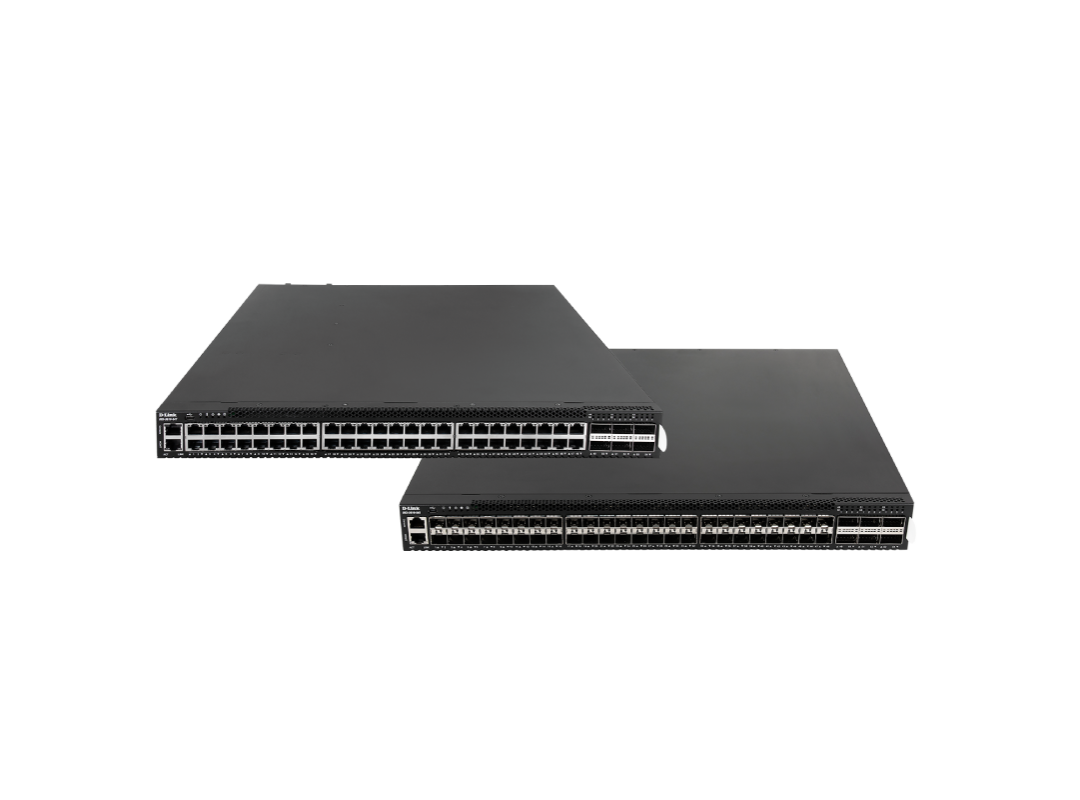

The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.

Learn More
Interfaces
48 x 1/10GbE SFP/SFP+ ports
6 x 40/100GbE QSFP+/QSFP28 ports
Console Port
1 x RJ-45 console port
Switching Capacity
2.16 Tbps
Maximum Forwarding Rate
1607.04 Mpps
Packet Buffer Size
32 MB
Max Power Consumption
320.8 W
Standby Power Consumption
120.6 W
Maximum Heat Dissipation
1083 BTU/hr
Acoustic
Max: 79.4 dB
Min: 65.3 dB
FAN
Fan x 5
Dimensions
441.0 x 487.44 x 43.5 mm (17.36 x 19.19 x 1.71 in)
Weight
9.80 kg (21.61 lbs)
Temperature
Operating: 0 to 45 ºC (32 to 113 ºF)
Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
Operating: 0% - 95% RH
Storage: 0% - 95% RH
MTBF
94,262 hours
Power Input
100 to 240 V AC
50/60 Hz

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only.Specifications may be subject to change without prior notice.
