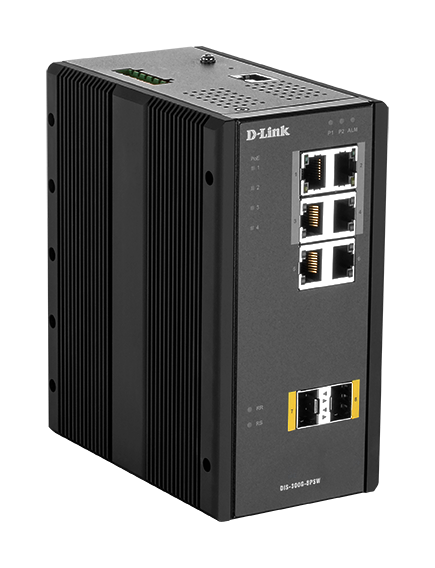

Industrial Gigabit Managed PoE Switch with SFP slots
DIS-300G-8PSW
- Product Status: Live
- 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 2 x 100/1000BaseSFP slots
- 120 W PoE Power Budget
- High availability
- Easy-to-control management interfaces and security
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, NEMA‑TS2 Section 2, EMC
Where to buy
Features

Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-8PSW is easy to manage and provides the security and controls to guard and shape your network needs.

Designed with 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, and 2 x 100/1000BaseSFP slots to suit a range of devices and network layouts.

Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

Rapid ring failover recovery time of < 20ms.

With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

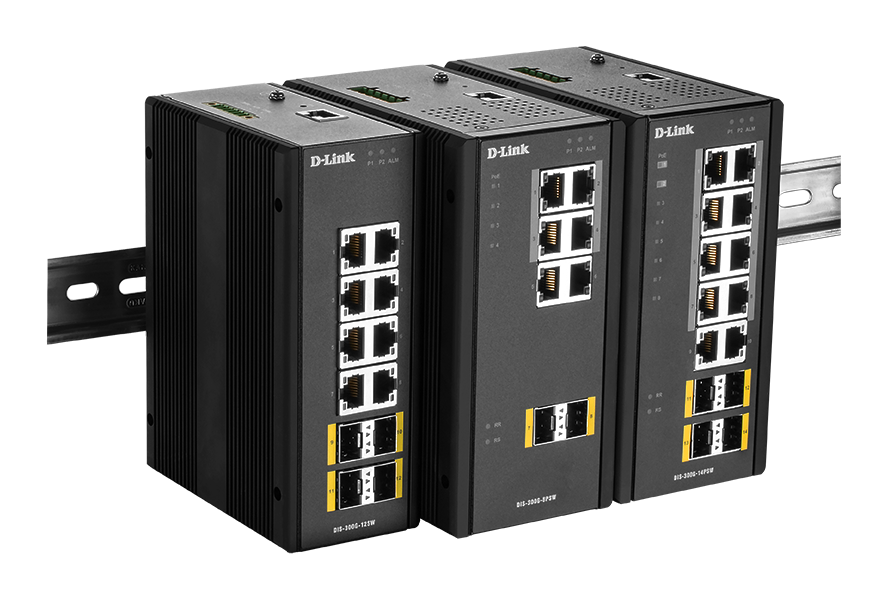

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.
Related Products


Specs
Type
|
Smart managed |
---|---|
Number of ports
|
5 to 14 ports |
Layer
|
Layer 2 |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
1000BASE-T Gigabit Ethernet SFP |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
4 8 |
PoE power budget
|
See datasheet |
Fanless
|
Supported
|
Form Factor
|
DIN rail |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Environmental
|
Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
<20ms link loss recovery
|
Supported
|
MAC address
|
8K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN group (max static)
|
1024 256 |
VLAN type
|
MAC-based Port-based Protocol-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) |
Number of QoS queues per port
|
8 |
Encryption protocol supported
|
SSH |
802.1X access control
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
LLDP
|
Supported
|
