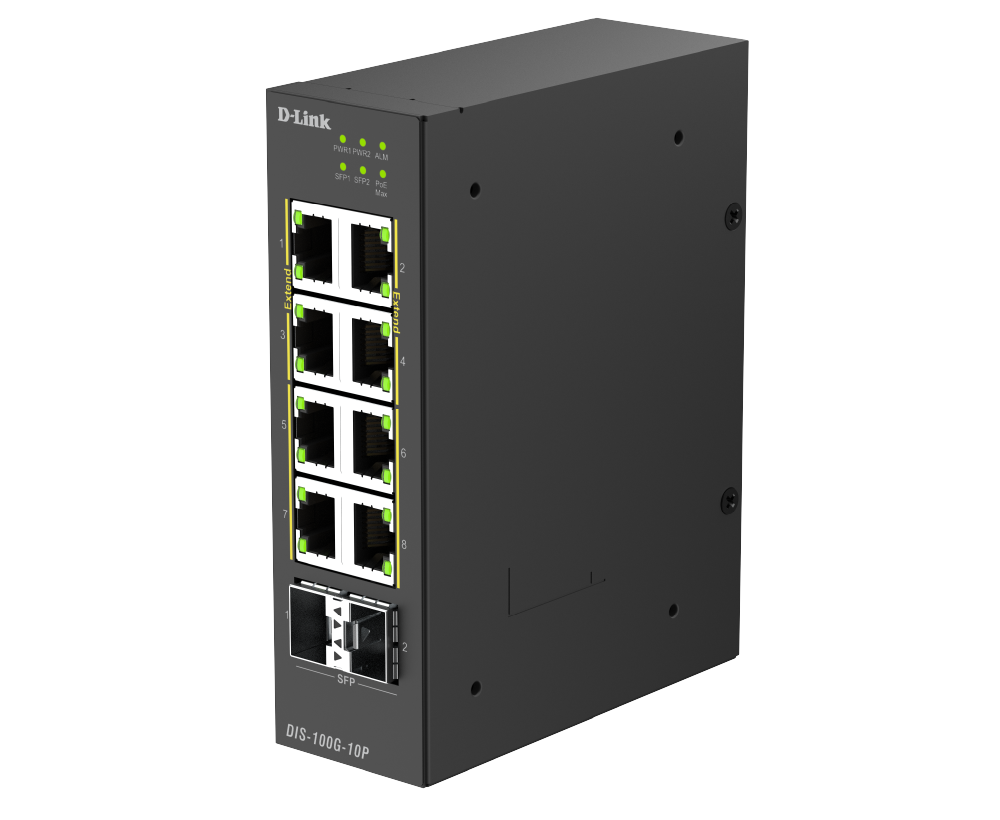

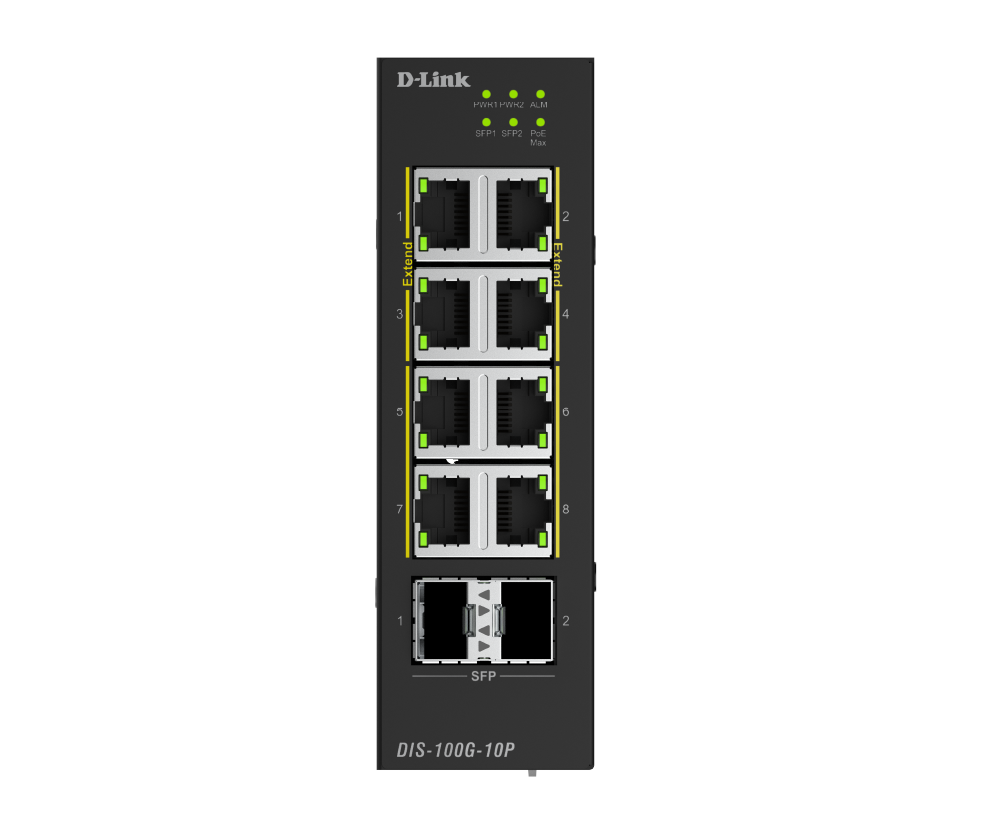

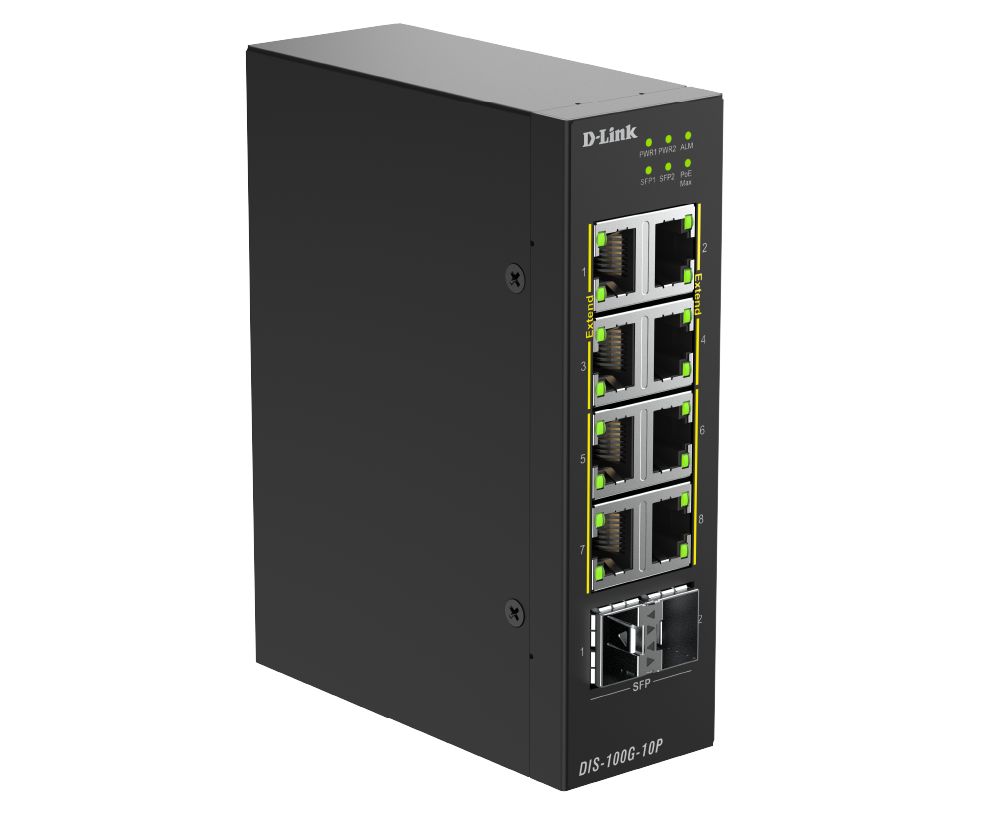

Industrial 8-Port 1G PoE+ + 2-Port 1G SFP Unmanaged PoE Switch
DIS-100G-10P
- Product Status (A1 v100 WW): Live
- 8 x Gigabit PoE ports for fast data transmission
- 2 x 1G SFP ports for easy network expansion
- IEEE 802.3af/at with 240 W PoE power budget
- Dual power inputs provide power redundancy
- Wide voltage compatible with various power sources
- -40°C to 75°C operation for harsh environments
- 6kV surge protection on Gigabit Ethernet ports
- DIN-rail and plug-and-play simplified installation
- Fanless design delivers quiet, reliable performance
- Support 802.3az Energy Efficient Ethernet (EEE)
Where to buy
High Power and Long-Range with PoE+
The DIS-100G-10P is equipped with eight PoE ports compliant with IEEE 802.3af/at standards, delivering both data and power through a single Ethernet cable. Using the built-in DIP switch, ports 1 - 4 can be set to “Extend Mode”, supporting transmission distances of up to 250 meters at 10 Mbps, perfect for surveillance cameras that require stable, long-distance connectivity.
With a total power budget of up to 240 W, each port can supply up to 30 W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.
Connect Far, Transmit Fast
The DIS-100G-10P features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

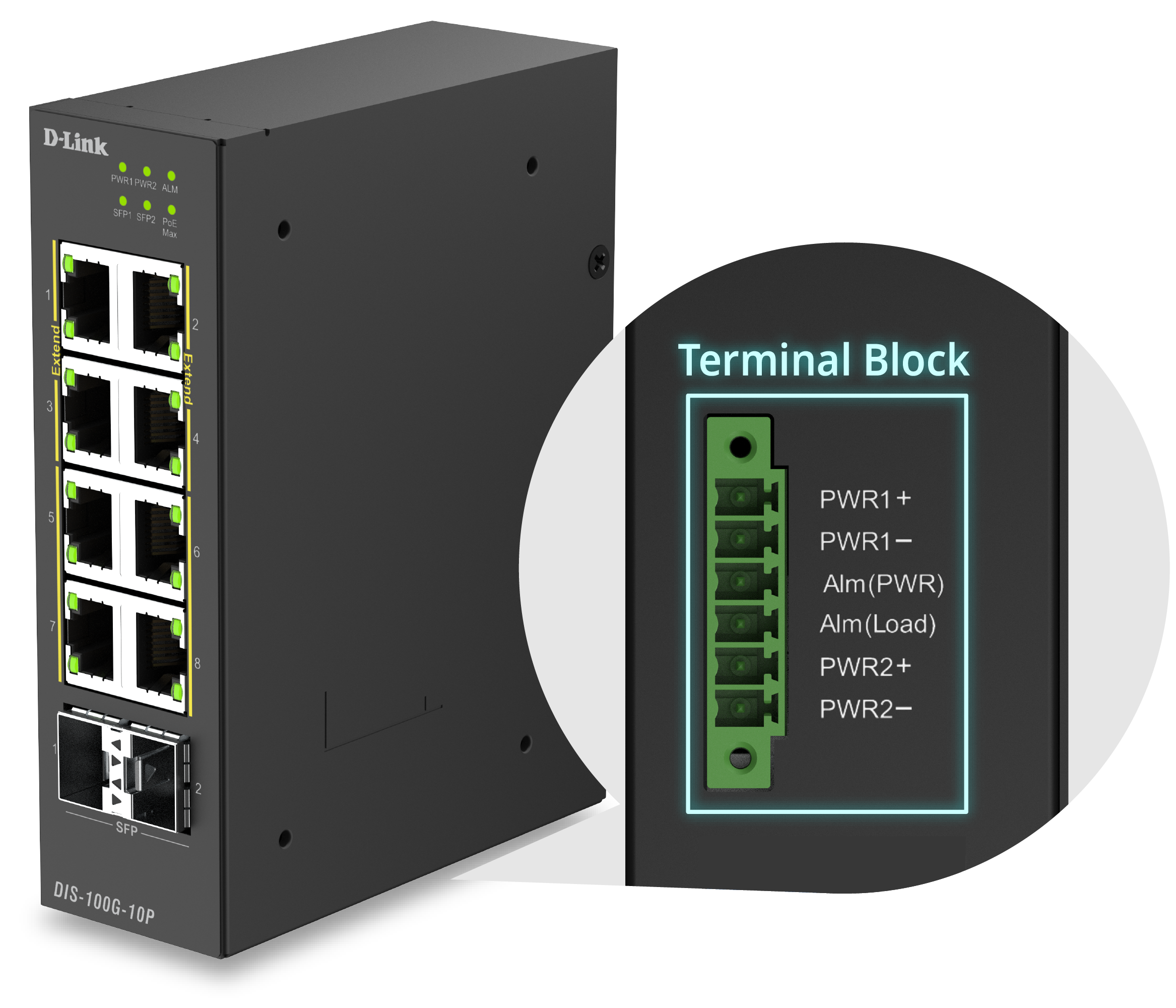

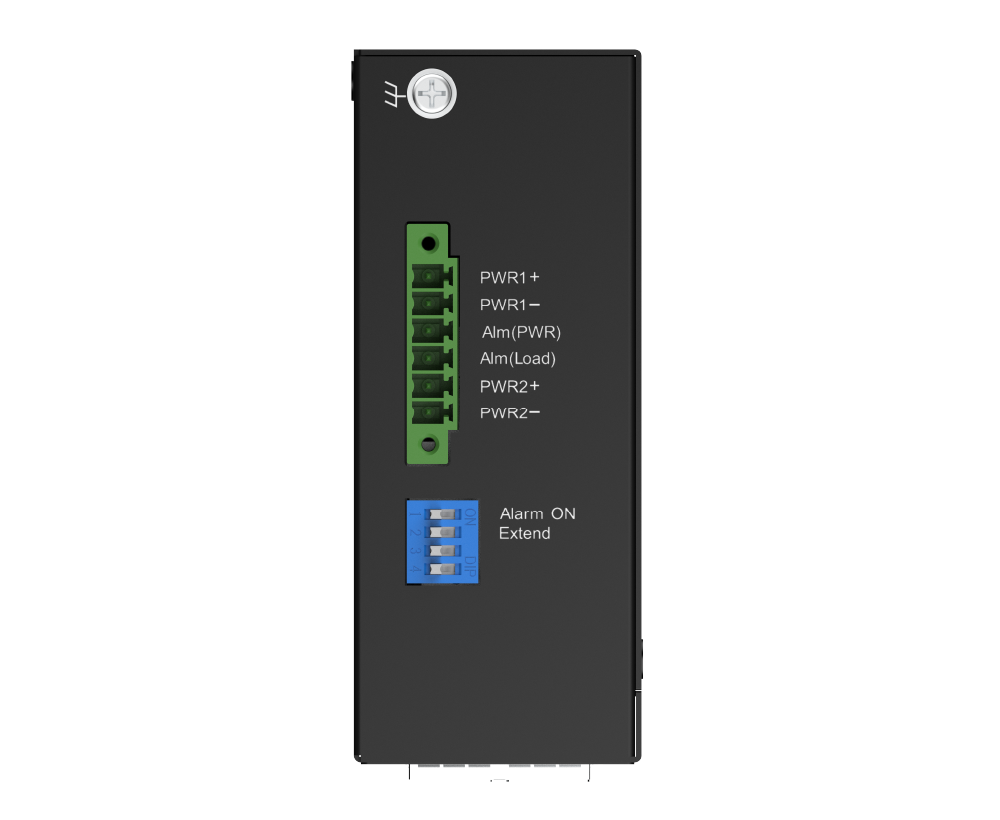

Uninterrupted Power Redundancy
The DIS-100G-10P is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 48 - 57V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection
Built Tough for Demanding Conditions
The DIS-100G-10P is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. The fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
Related Products

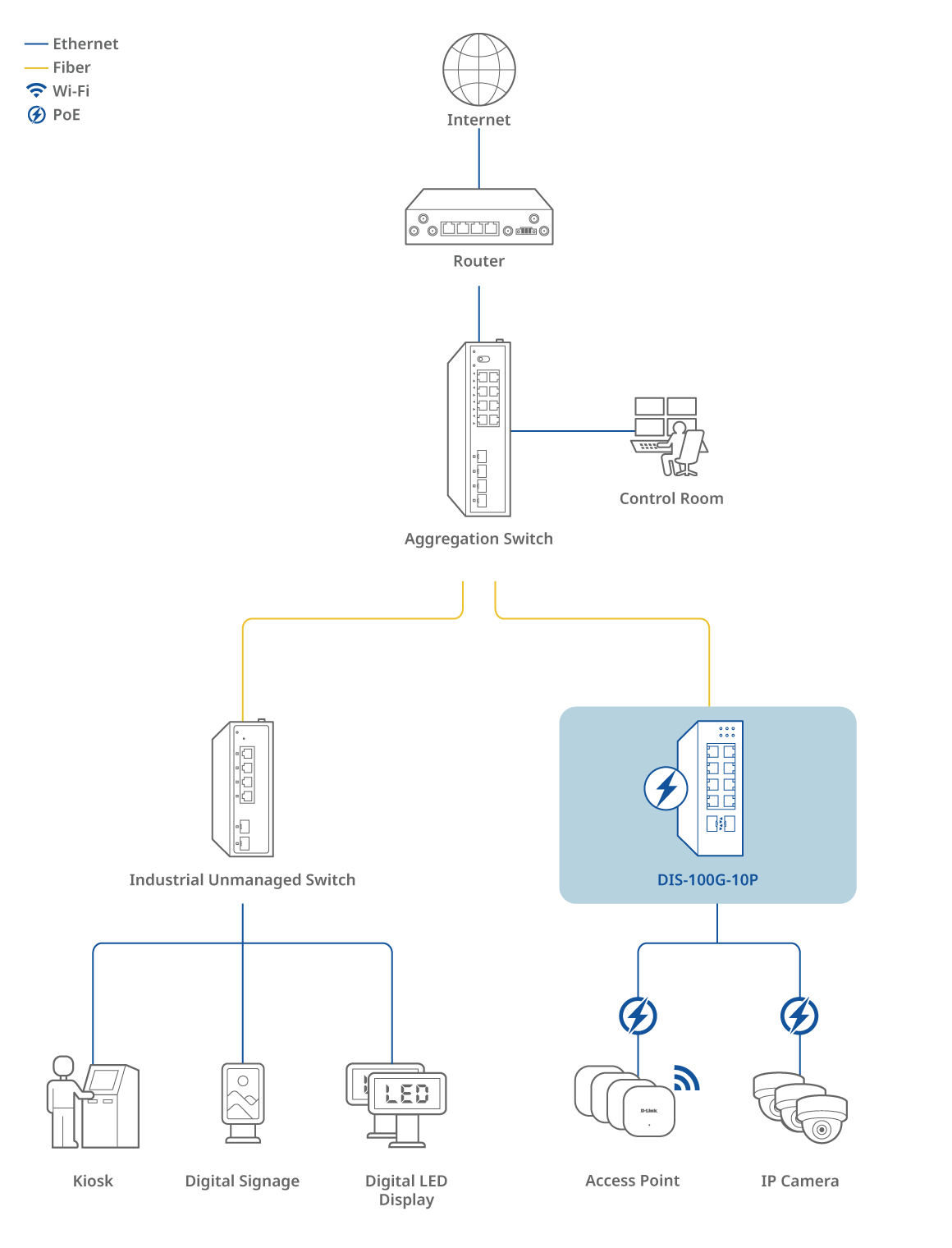

Connection Diagram
The DIS-100G-10P is an industrial unmanaged switch equipped with eight 1G PoE ports and two SFP ports, providing plug-and-play simplicity for deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it's well-suited for edge deployments in applications like HD surveillance, wireless access points, and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
產品規格
|
Type of Downlink Ports
|
1G SFP |
|---|---|
|
Type of Uplink Ports
|
1G SFP |
|
Number of Gigabit ports
|
8 |
|
Number of SFP ports
|
2 |
|
Switch Capacity
|
20 Gbps |
|
PoE Capable Ports
|
Ports 1 to 8 (up to 30 W/port) |
|
PoE Power Budget
|
240 W |
|
PoE Ports
|
802.3af, 802.3at |
|
Fanless
|
Supported
|
|
802.3az EEE
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
Jumbo Frame
|
9K |
|
