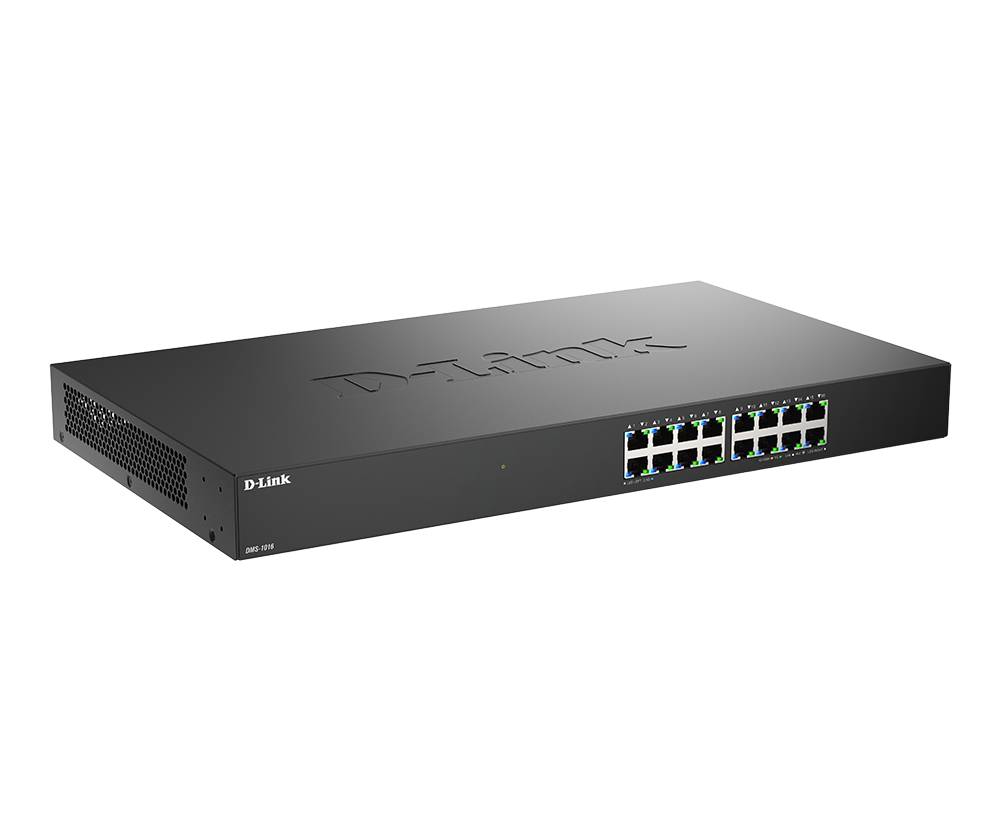

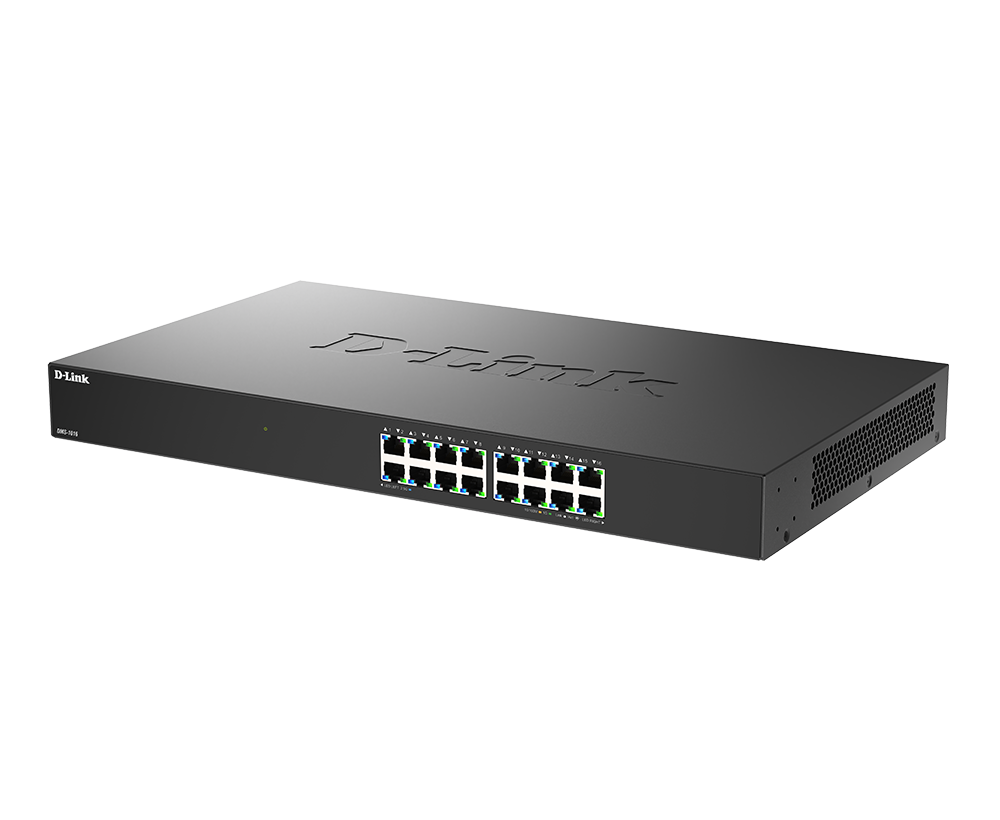

16-Port 2.5G Multi-Gigabit Unmanaged Switch

DMS-1016

  • Product Status (Revision A): Live
  • 16-port 2.5GE connectivity for high performance networking
  • Plug and Play simplicity for easy installation
  • Fanless design for enhanced reliability and silent performance
  • Durable rackmount metal housing enhances product durability
  • IGMP snooping for optimized bandwidth utilization
  • Auto MDI/MDI-X crossover on all ports simplifies setup
  • IEEE 802.3x flow control prevents packet loss
  • Quality of Service (QoS) ensures uninterrupted connectivity
  • IEEE 802.3az reduces power consumption and operating cost

Download the datasheet.

Where to buy

User Benefits​

Plug & Play

No complex configurations required for fast and easy network connectivity

2.5G Ports

Multi-Gigabit ports for high data rate transmission

Multicast Optimization

IGMP snooping feature prevents network flooding

Rugged Design

Compact metal casing improves device durability

Silent Operation

Fanless design for a noise-free working environment

Optimized Performance

QoS prioritizes traffic, enhancing user experience

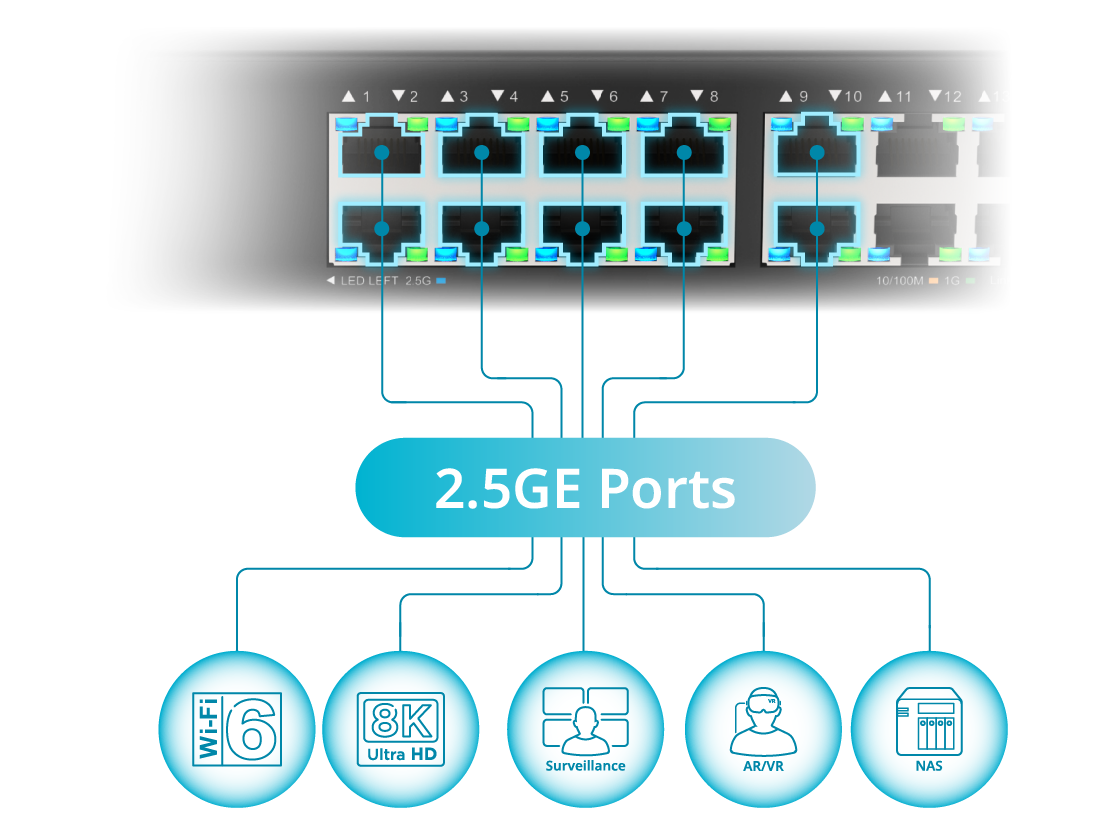

2.5G Ports for Faster Data Rates

New generation Wi-Fi delivers ultra-fast speeds with low latency and standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, enabling significantly faster data rates for Wi-Fi APs, smoother 4K/8K streaming, HD surveillance, AR/VR gaming, NAS, and many more applications in data-intensive environments.

Smarter Multicast, Smoother Performance

The DMS-1016 enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

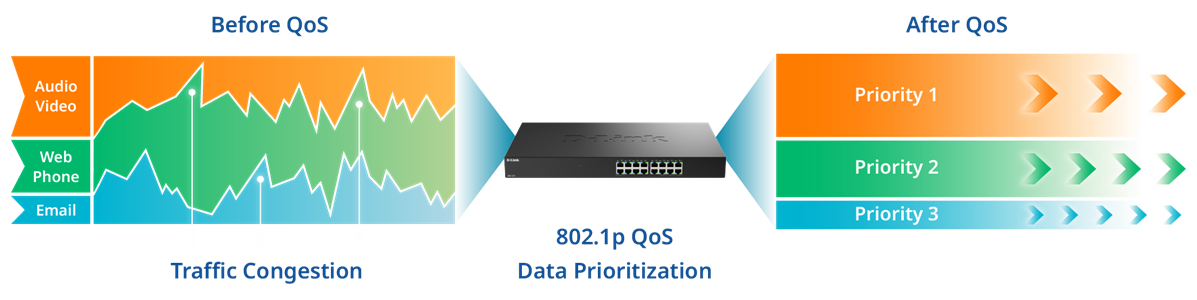

Prioritize Traffic for Optimized Performance

With the DMS-1016, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

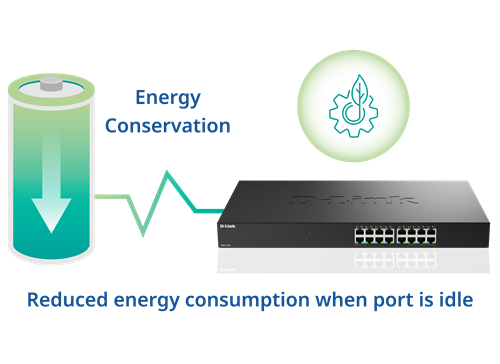

Eco-Friendly and Cost Saving

The DMS-1016 optimizes energy use and cuts operating costs with intelligent power management that reduces consumption during idle periods. The fanless design enables silent operation while minimizing maintenance and expenses. Experience a cost-effective, eco-friendly solution that saves money and promotes sustainability.

Related Products

5-Port 2.5G Multi-Gigabit Desktop Switch
DMS-105
Find out more
7-Port Multi-Gigabit Unmanaged Switch
DMS-107
Find out more
8-Port 2.5G Multi-Gigabit Desktop Switch
DMS-108
Find out more
8-Port 2.5G Multi-Gigabit Unmanaged PoE Switch
DMS-108P
Find out more
24-Port 2.5G Multi-Gigabit Unmanaged Switch
DMS-1024
Find out more

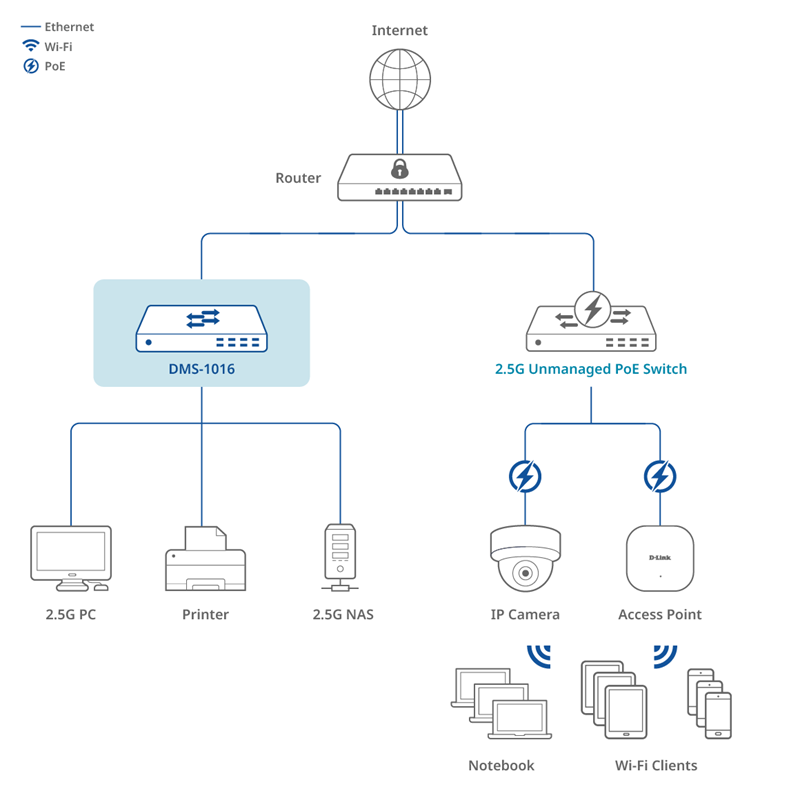

Connection Diagram

The cost-effective DMS-1016 not only delivers plug-and-play 2.5G connectivity for edge devices, but also offers performance optimization to help eliminate bottlenecks for applications such as Wi-Fi 6, HD surveillance, 4K/8K streaming, and much more.

Business Router

Learn More

Access Point

Learn More

Specs

Download the datasheet.

Number of 2.5 GBASE-T ports​
16
Switching Capacity
80Gbps
FAN
Fanless
D-Link Green
Supported
802.3az EEE
Supported
Power Supply Type
Internal
MAC Address
16K
802.1p QoS​
Supported

Download the datasheet.
