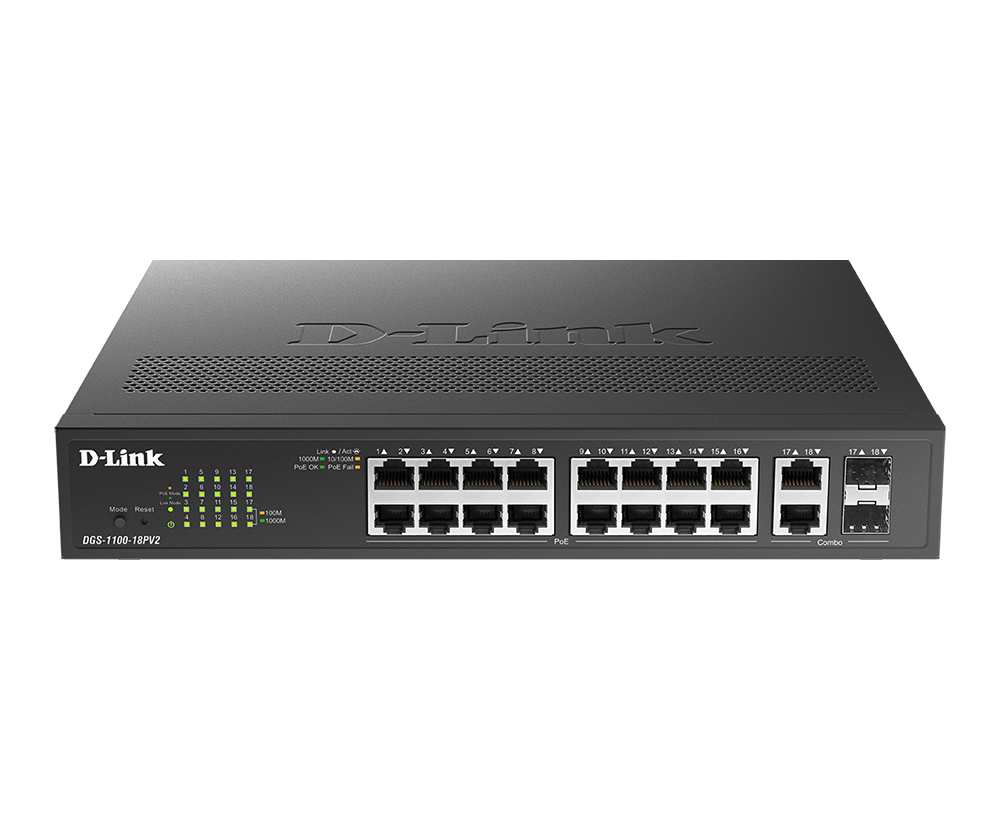

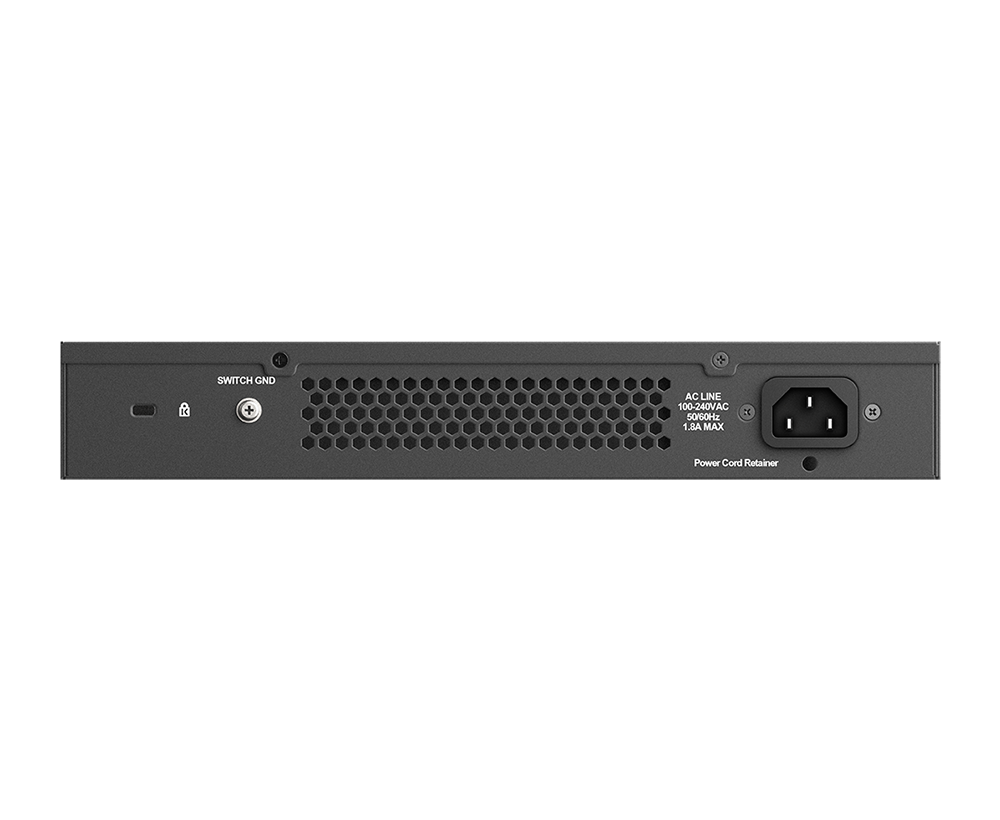

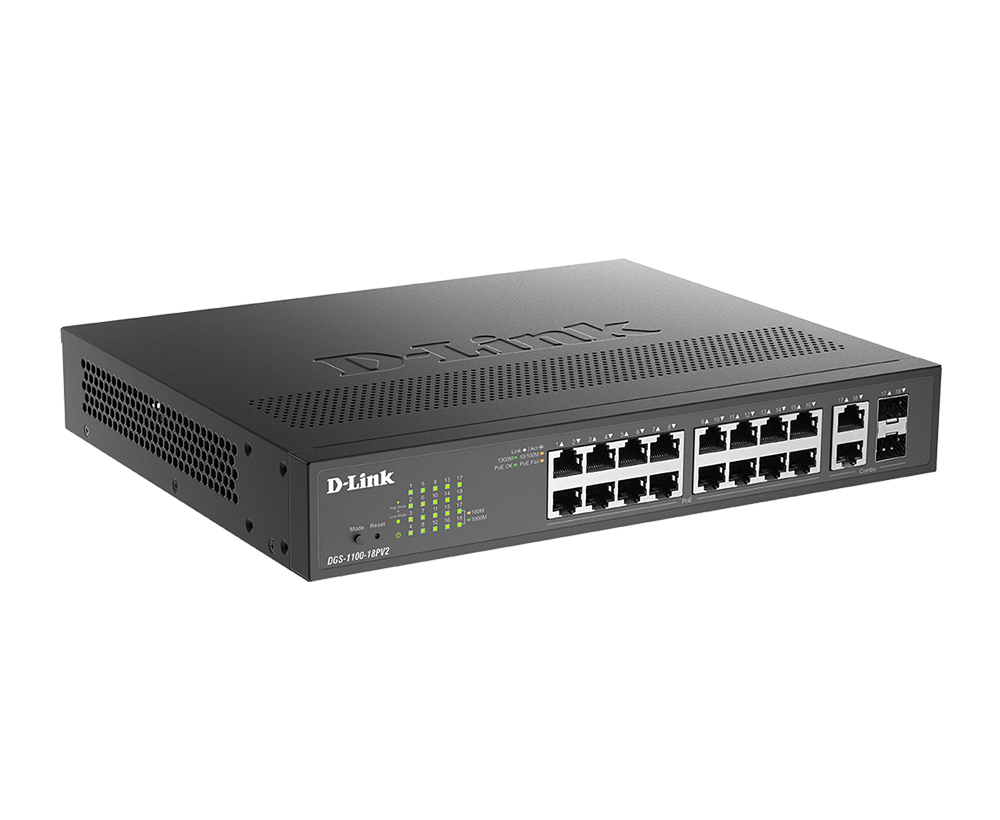

18-Port Gigabit PoE Easy Smart Switch
DGS-1100-18PV2
- Product Status (Ax v2.11WW): Live
- 16 Ports GE PoE Ethernet for downlink
- 2 Ports 1G Combo for uplink
- PoE IEEE 802.3af/at options, power budget 130W
- 1 smart fan
- Broadcast/Multicast/Unicast Storm Control
- 802.3ad / 802.1AX Link Aggregation
- 802.1D STP/ 802.1w RSTP
- IGMP Snooping
- Nuclias Unity
- SSL support
Where to buy
Specification
|
Interfaces
|
16 x GE PoE 2 x 1G Combo |
|---|---|
|
Switching Capacity
|
36 Gbps |
|
Max. Packet Forwarding Rate
|
26.78 Mpps |
|
PoE Standards
|
IEEE 802.3af/at |
|
PoE Power Budget
|
130 W |
|
Max Power Consumption
|
166.7 W (PoE on) 18.3 W (PoE off) |
|
Dimensions
|
280 x 230 x 44 mm |
|
Weight
|
2.1 kg |
|
FAN
|
1 Smart Fan |
|
Operating Temperature
|
-5°C to 50°C (23°F to 122°F) |
|
Storage Temperature
|
-40°C to 70°C ( -40°F to 158°F) |
|
Operating Humidity
|
0% to 95% non-condensing |
|
Storage Humidity
|
0% to 95% non-condensing |
|
Power Supply Type
|
Internal |
