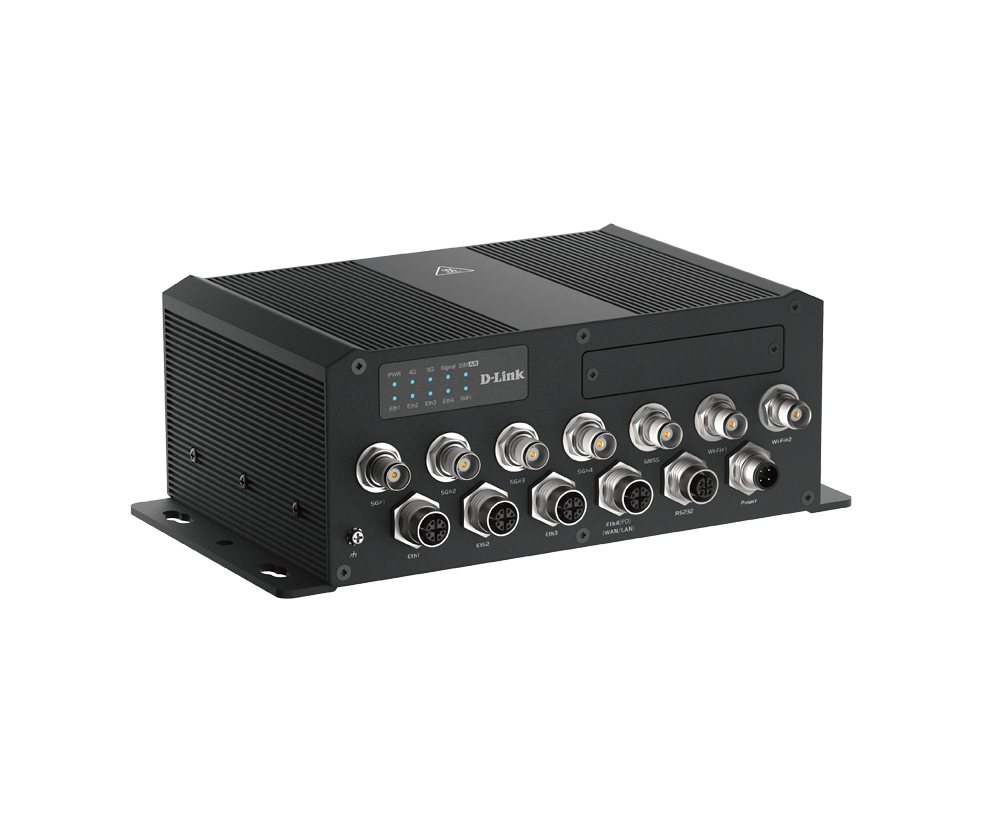

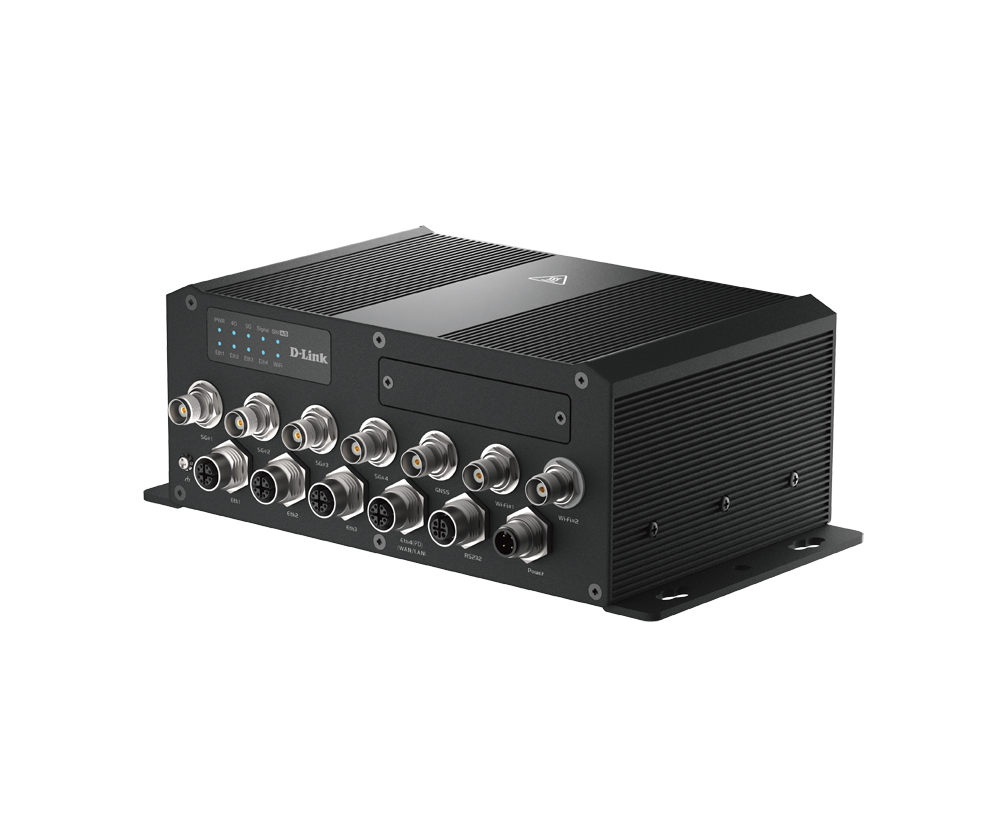

5G Transit Gateway
DTM-570-GS
- Product Status (Revision A1_v1.11): Live
- 5G SA & NSA with dual SIM slots for cellular WAN failover redundancy
- 4 x Gb Ethernet Ports(M12 X-Code)
- Wi-Fi 6 AX1800 to connect multiple on-board devices
- 1 x RS-232 (M12 A-coded)
- 1 x USB port for device log information
- GNSS for GPS/GLONASS
- Durable zinc-plated steel case is corrosion-resistant to help ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Power Input: DC 18-75V (M12 A-coded), or through PoE (Eth4) (X-coded)
Shipping Globally | Coming Soon to North America
Where to buy
User Benefits
5G SA & NSA
Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.
Wi-Fi 6 AX1800
Enable high-speed in-vehicle Wi-Fi for seamless passenger and Wi-Fi equipments access and streamlined operations.
Rugged M12 Connectors
Industrial-rated locking threads ensure on-board connections are protected from harsh elements.
Rail Related Certified
Compliant with EN45545, EN50155, and EN50121-3-2 to ensure reliability and safety in rail transportation.
GPS Location
Real-time tracking enables routing services to minimize travel time and optimize fleet efficiency.
Wide Voltage Input Range
Safely accepts power input from various on-board power sources for convenient installation.
Enhanced Onboard Telematics and Infotainment
Optimize Railway Operations with Location-Based Services
Robust Design for Rail Application
Related Products
Streamlined 5G Transit Connectivity for Rail Applications

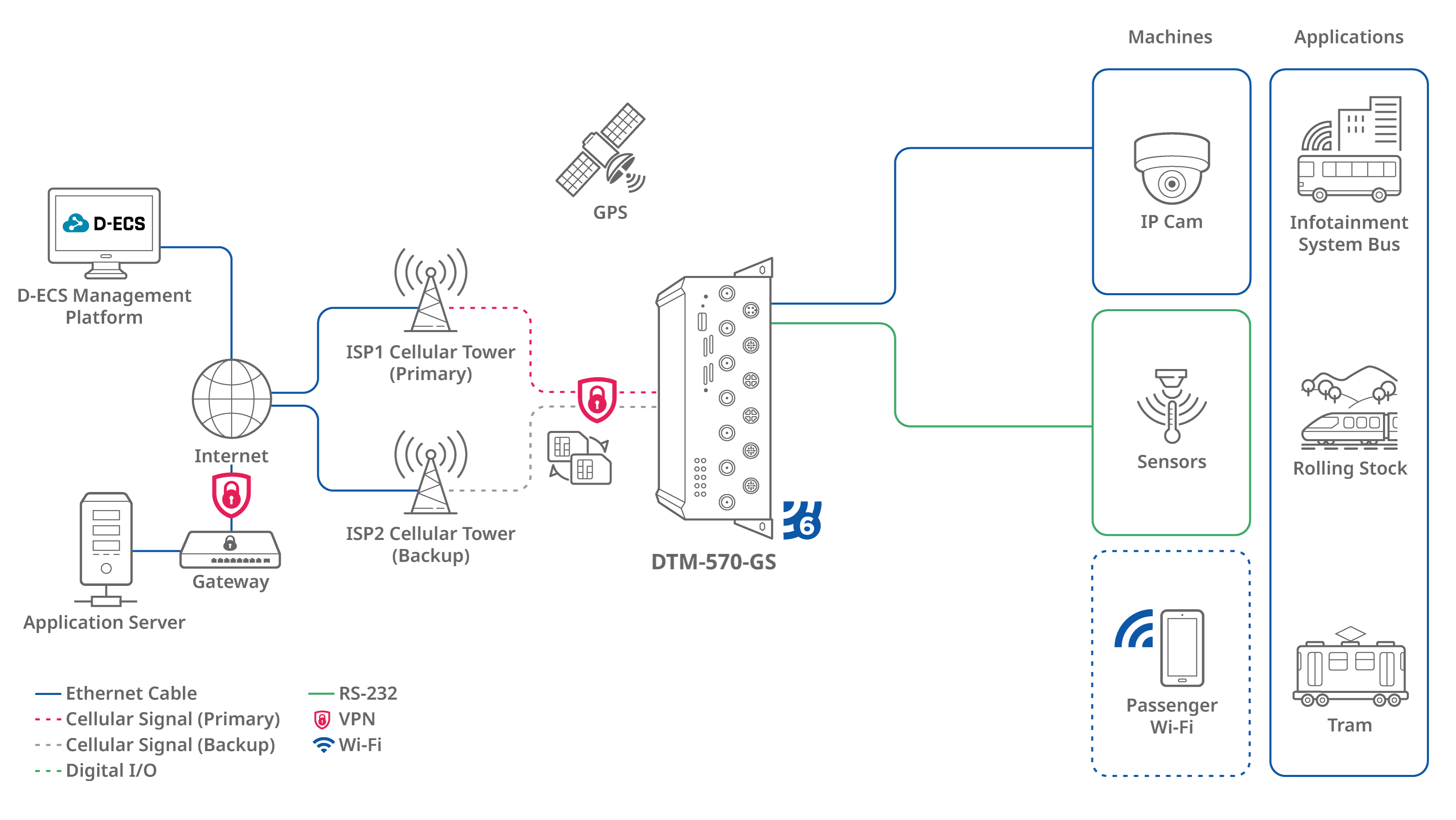

The DTM-570-GS 5G Transit Gateway supports 5G NR and LTE connectivity for high-speed cellular uplinks in transit environments. With four Gigabit Ethernet M12/X-coded ports and Wi-Fi 6 AX1800 capabilities, it connects IP cameras, RS232 sensors, and other onboard devices—supporting a wide range of IoT applications across public transportation systems.
Its rugged construction, aligned with EN45545, EN50155, and EN50121-3-2 rail standards, makes it well-suited for use in buses, rolling stock, and trams. Designed to perform reliably in challenging conditions, the DTM-570-GS contributes to enhanced safety, connectivity, and efficiency for mobile infotainment and critical onboard systems.
Applications
Tram
Provide fast Wi-Fi, real-time station updates, and advertising, to enhance commuter journey experiences.
Rapid Transit (Metro)
Enable real-time surveillance and monitoring for enhanced passenger safety with high-speed internet.
Tourist Train
Enhance onboard entertainment, advertising, and shopping experiences to optimize the passenger journey.
Rolling Stock
Supports internet connectivity for infotainment, passenger Wi-Fi, and real-time station notifications, helping enhance the travel experience and onboard engagement.
Specification
|
Antenna Connectors
|
4 x TNC for Cellular 1 x TNC for GPS 2 x TNC for Wi-Fi |
|---|---|
|
Cellular Module
|
5G NR |
|
Ethernet Interface
|
1 x WAN/LAN GE(M12) 3 x LAN GE(M12) (Eth4 is with PoE input) |
|
IPv4/v6
|
Yes |
|
LAN
|
DHCP Server/Relay |
|
Local Management
|
Web UI/SSH |
|
Maximum Cellular Data Throughput
|
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL) 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL) LTE: 1.6 Gbps (DL) / 200 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
VPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Power Input
|
1 x M12 (A-coded) DC 18~75V or through PoE (Eth4) |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
2 x 2FF Mini-SIM |
|
Temperature
|
Operating -30 to 70 ˚C |
|
USB
|
Yes |
|
WAN
|
Cellular/Ethernet |
|
Wi-Fi Standard
|
IEEE 802.11 ax/ac/n/g/b/a/h |
|
Bridge Mode
|
Yes |
|
SMS Management
|
N/A |
|
GNSS
|
GPS / GLONASS |
