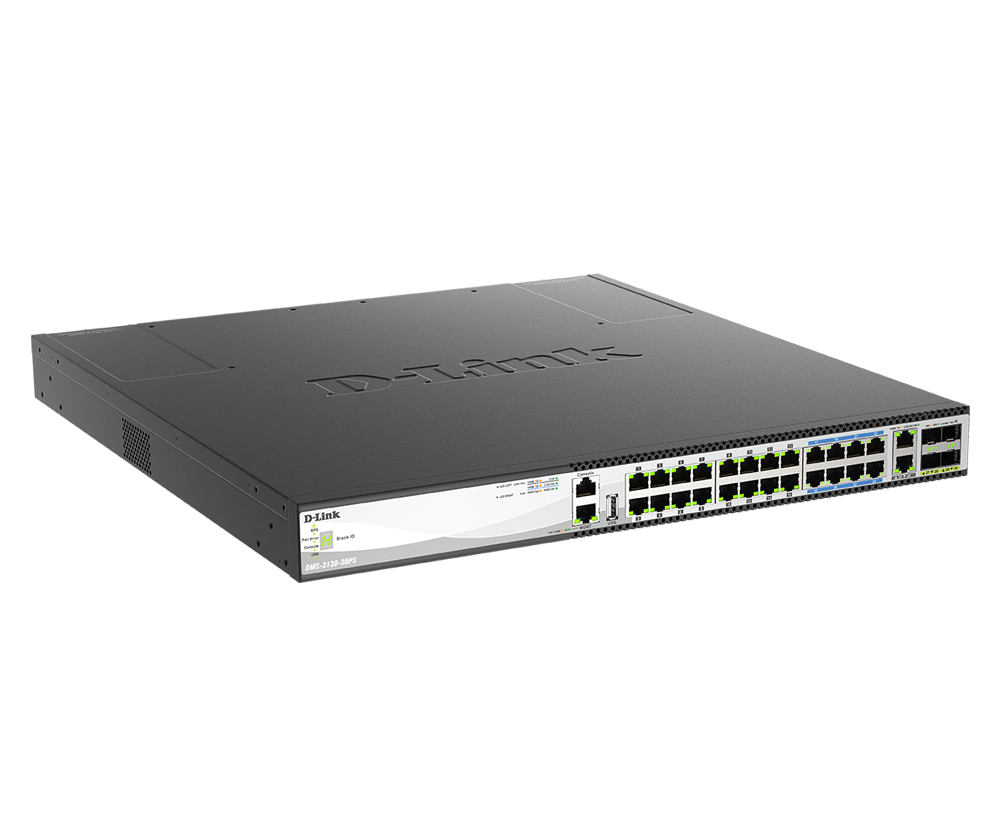

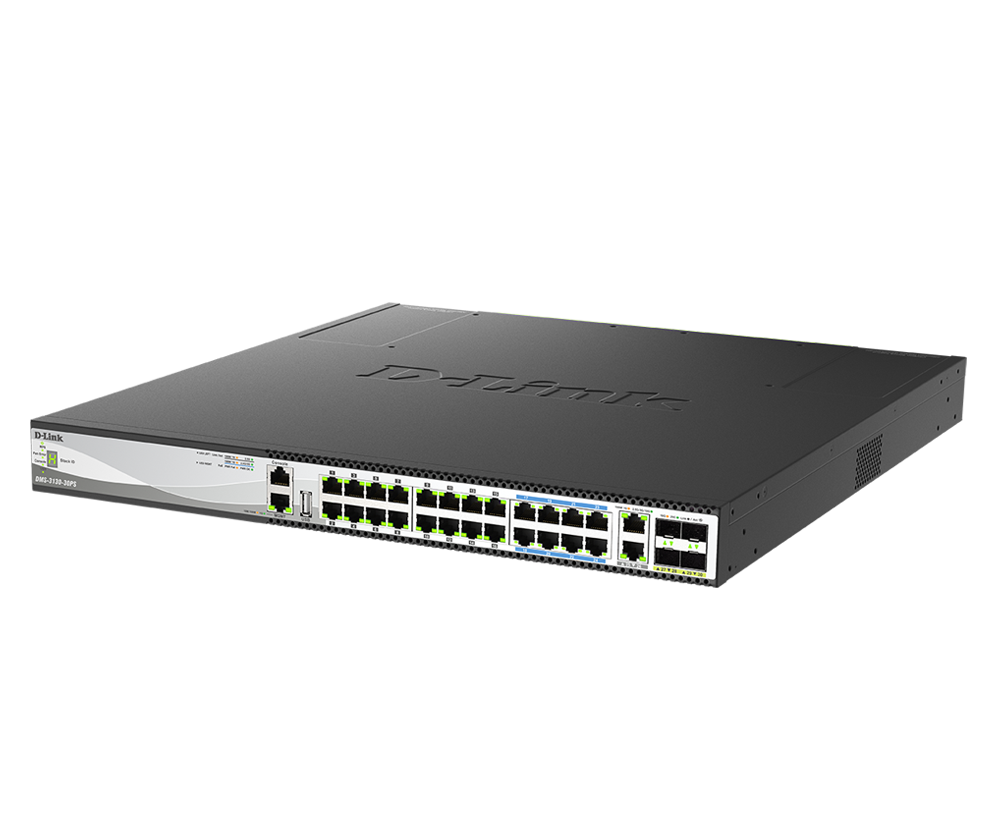

30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch
DMS-3130-30PS
- Product Status (Revision A1_v1.01): Live
- 16 x 100M/1/2.5GBASE-T PoE+ ports + 8 x 100M/1/2.5/5GBASE-T PoE++ ports
- 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs
- PoE budget of 740W allows powering of numerous external devices (Up to 960W with dual powers)
- Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
- RIP/RIPngand OSFPv2/v3 dynamically map out your network, aiding data to get to its destination via the fastest route possible
- Expand capacity in a flash with physical stacking up to 9 units
- Smart Fan self-adjusts accordingly to maintain optimal operating temperatures
- Support ERPS, Q-in-Q and 6 KV surge protection
- Support 60W PoE compliancewith IEEE 802.3bt
- Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting
Where to buy
Related Products
30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch
DMS-3130-30PS
30-Port Layer 3 Stackable Multi-Gigabit Managed Switch
DMS-3130-30TS
Specification
|
PoE Ports
|
2 x 100M/1/2.5/5/10GBASE-T ports 4 x 10/25G SFP28 ports 8 x 100M/1/2.5/5GBASE-T 60W PoE ports 16 x 100M/1/2.5GBASE-T PoE ports |
|---|---|
|
Optional Redundant Power Supply
|

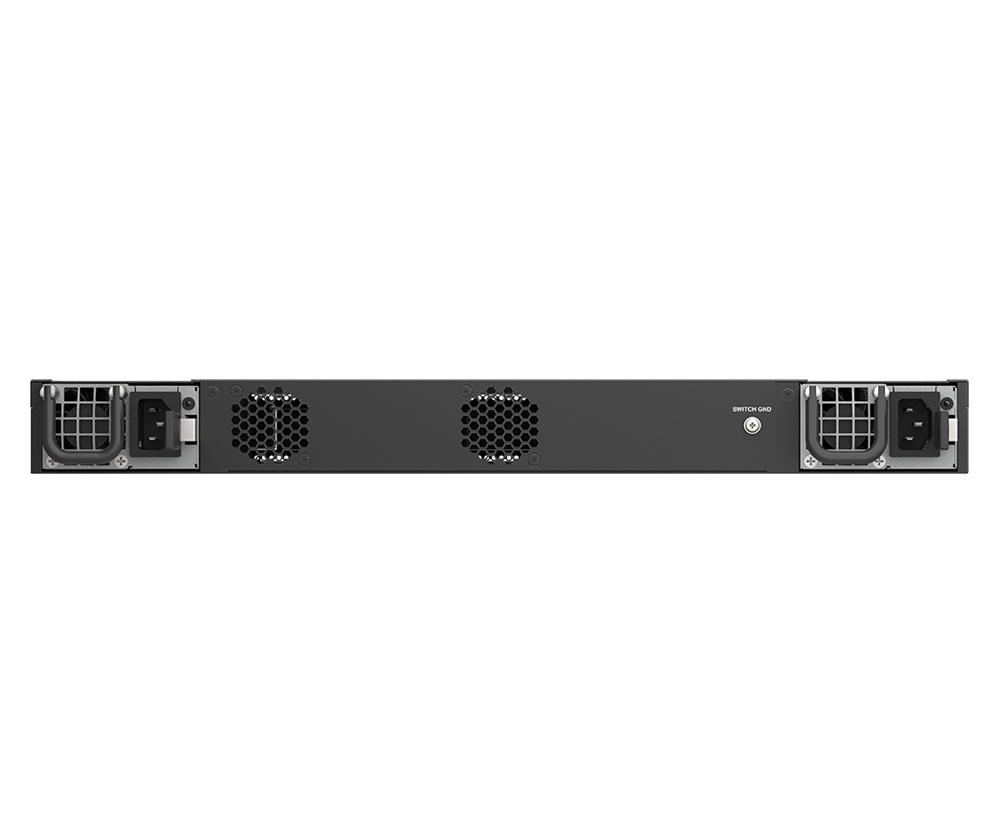

AC (DPS-PWR740AC) hot-swappable internal redundant power supplies DC (DPS-PWR740DC) hot-swappable internal redundant power supplies |
|
Console Port
|
10/100/1000BASE-T RJ-45 port for out-of-band CLI management |
|
RJ-45 Management Port
|
10/100/1000BASE-T RJ-45 port for out-of-band IP management |
|
Performance
|
64 Byte Packet Forwarding Rate 298 Mpps Packet Buffer Memory 4 MB |
|
Interfaces
|
1 x Stacking Cost 4 x Stacking Ports 1 x USB 2.0 Type A port |
|
Switching Capacity
|
400 Gbps |
|
Standards
|
IEEE 802.3af IEEE 802.3at IEEE 802.3bt |
|
PoE Power Budget
|
740 W 960 W (dual power supplies) |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only.Specifications may be subject to change without prior notice. |
|
