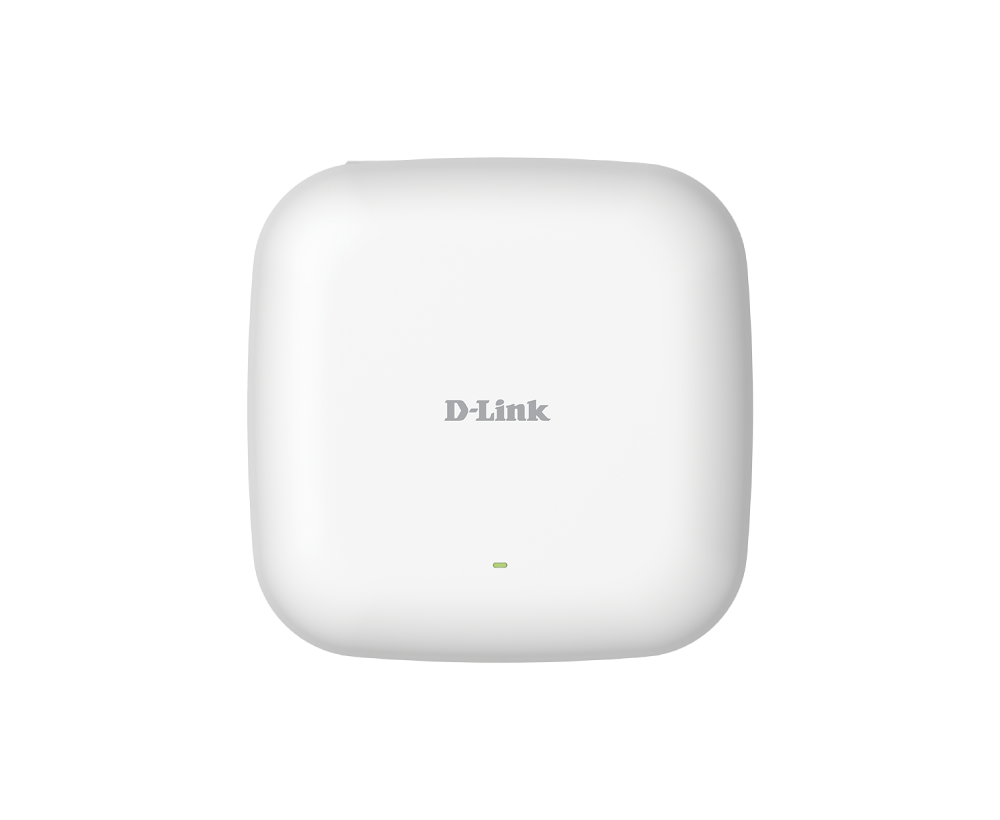

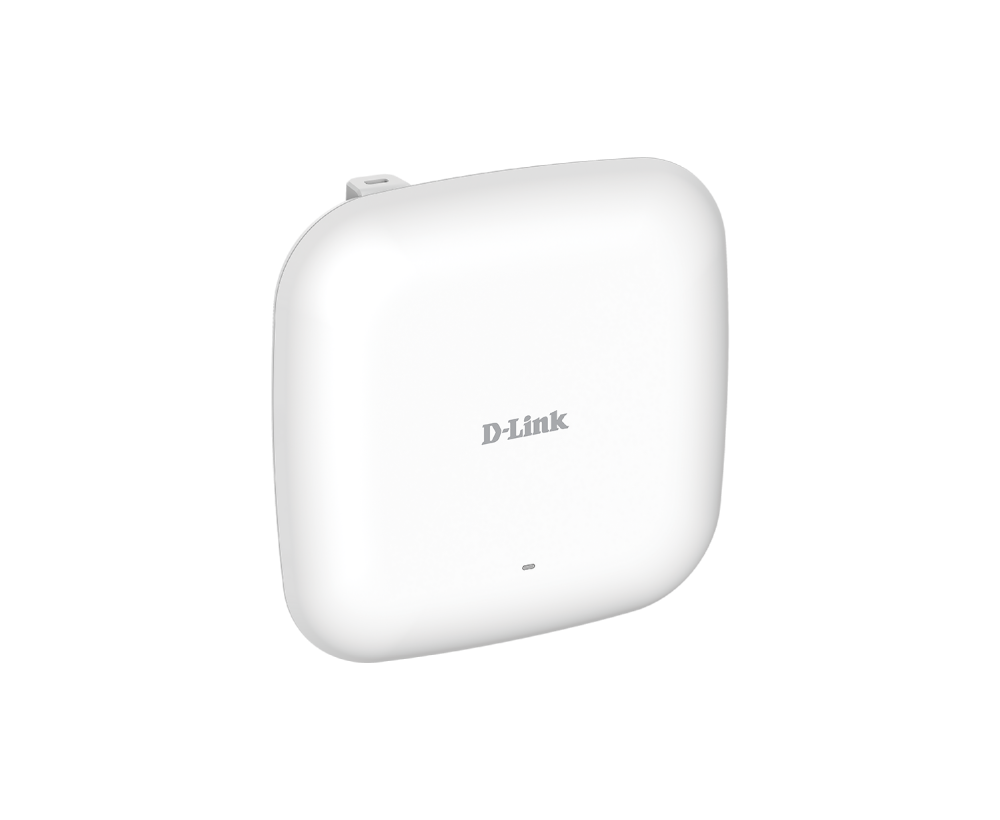

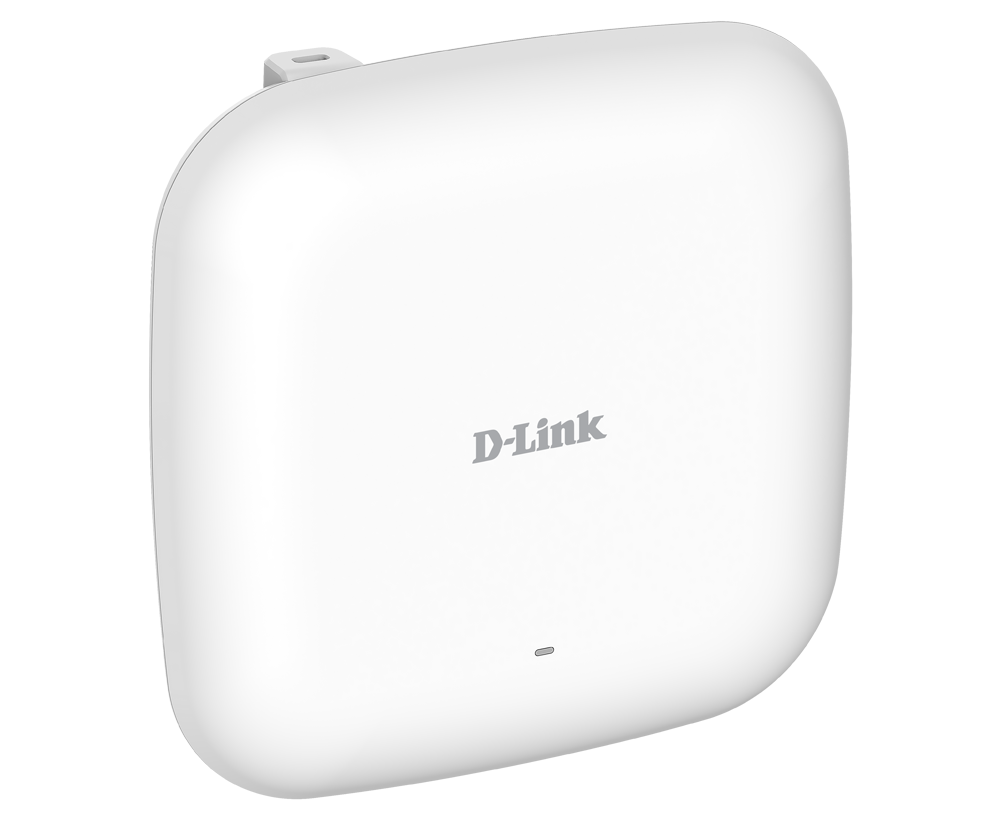

AX3000 Wi-Fi 6 Smart Access Point

DBR-X3000-AP

  • Product Status (A1_Datasheet_v1.00(WW)): Live
  • AX3000 Wi-Fi 6, up to 3.0 Gbps

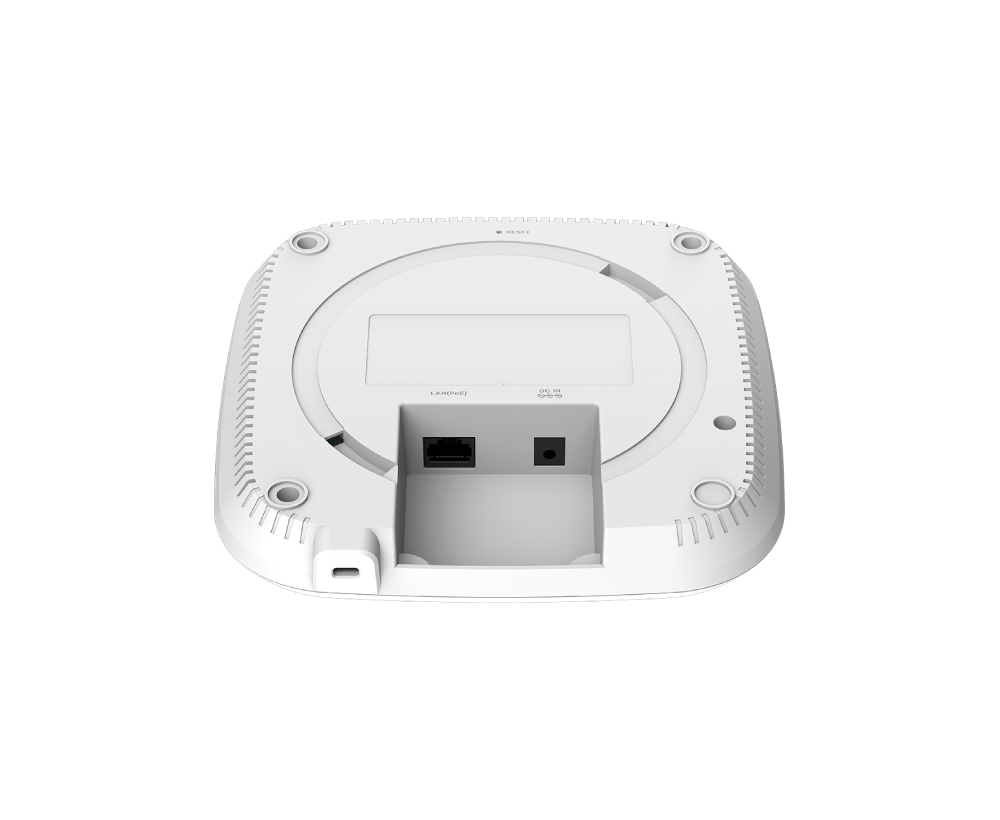

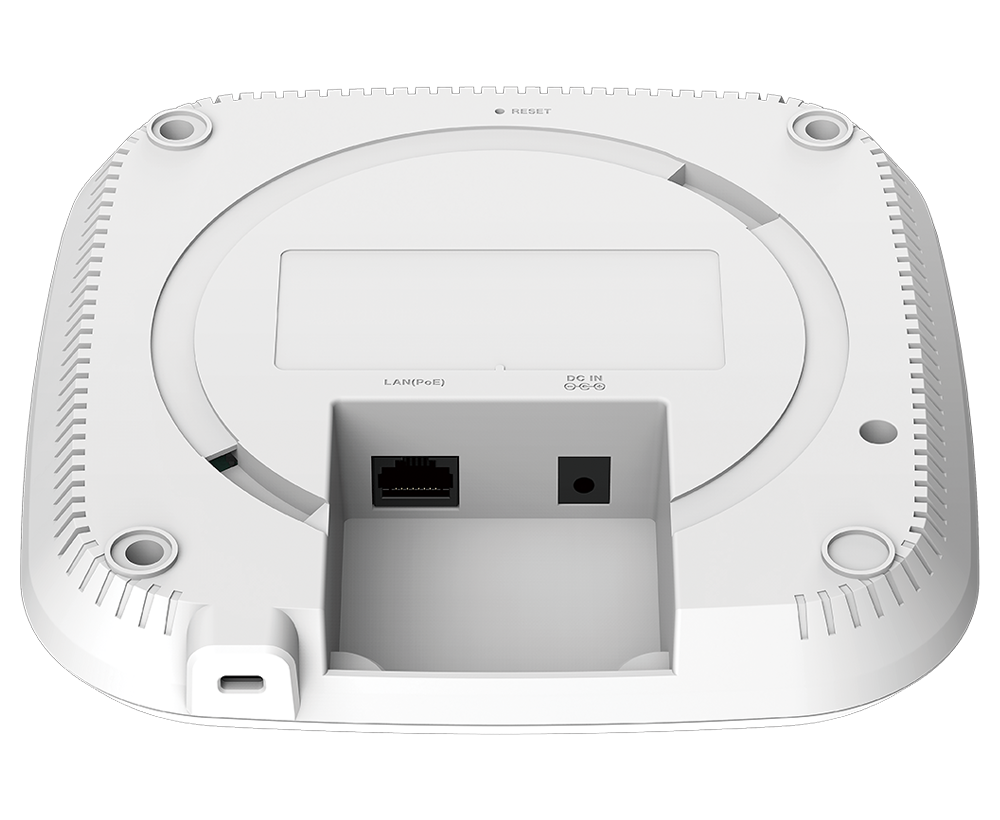

  • 1 x GE PoE LAN port enables flexible installation

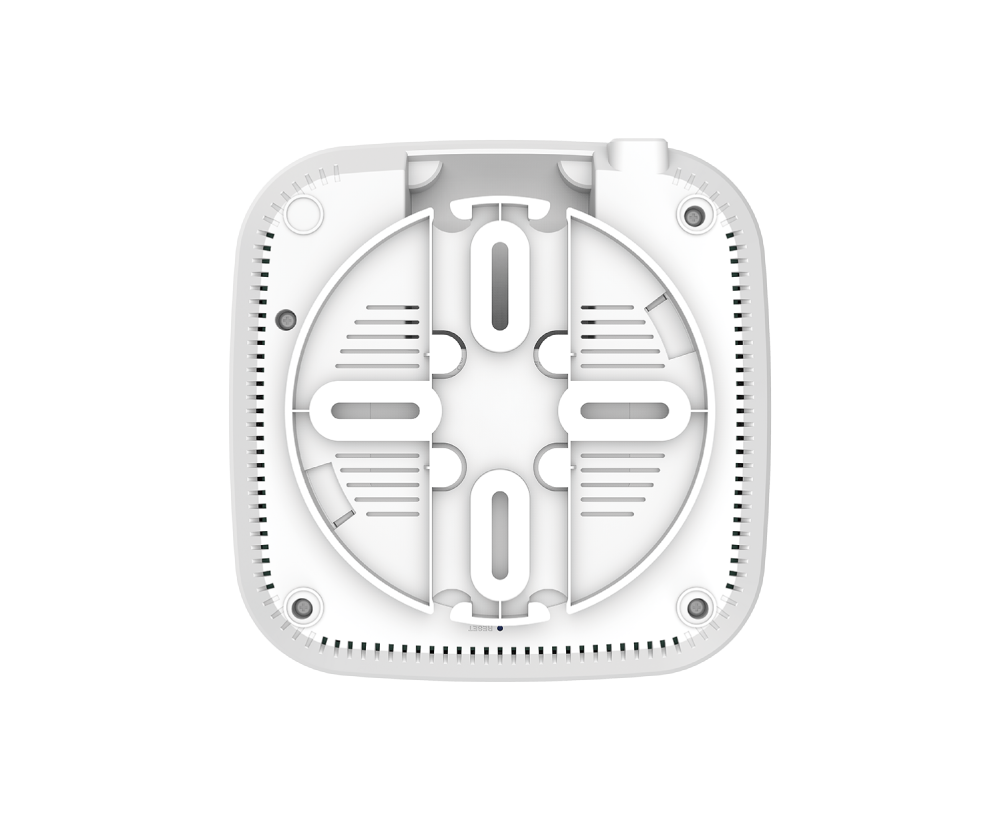

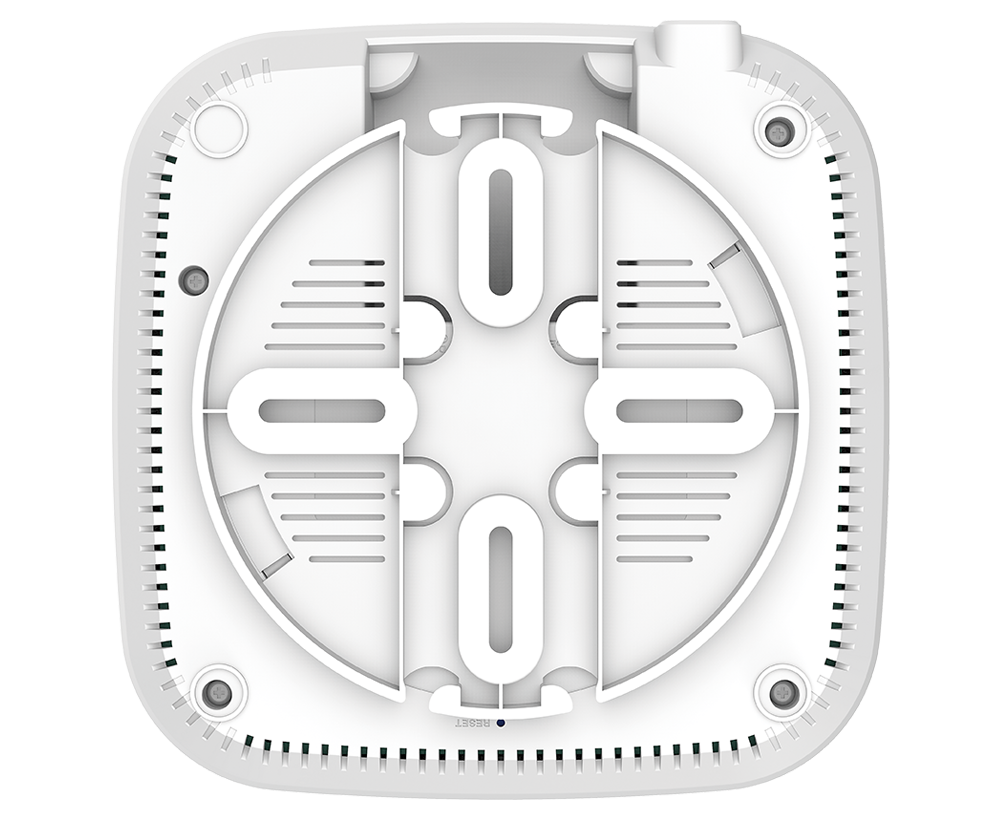

  • Wall-mount or ceiling options to suit diverse spaces
  • Support dual-band to deliver optimal performance
  • Seamless roaming allows devices to keep connected
  • Effortlessly expands coverage with mesh technology
  • WPA3 enhanced security for wireless networks
  • Guest Wi-Fi support to protect the main network
  • Central management by DBR series business router
  • Made In Taiwan
Setup Video

Download the datasheet.

Where to buy

Wi-Fi 6 Access Point for Seamless, Smarter Connectivity

The DBR-X3000-AP delivers fast, reliable Wi-Fi 6 performance and supports PoE for flexible, space-saving installation options. It supports mesh technology to ensure seamless wireless coverage throughout the entire business environment. With centralized wireless monitoring and management, IT teams can easily overlook and maintain network performance. Advanced WPA3 encryption and dedicated Guest Wi-Fi access provide secure, reliable connectivity for both business owner and visitors. Engineered to meet the evolving needs of modern small businesses, the DBR-X3000-AP combines performance, security, and ease of management in one powerful device.

Wi-Fi 6 Ready

Provides high efficiency and low latency, offering nearly 4x the capacity of previous Wi-Fi standards

Seamless Coverage

Easily expand coverage with mesh nodes, eliminating dead zones for seamless connectivity

Flexible Installation

Supports PoE for easy deployment, with wall-mount and ceiling design options for space efficiency

Worry-free Public Network

WPA3 encryption enhances network security, making browsing safer even in public spaces

Exclusive Guest Wi-Fi

Offers dedicated, secure network access to visitors without affecting the performance of the main network

Easy Management

Integrated with DBR Series routers for real-time monitoring and effortless device management

Boosts Your Business with Advanced Wi‑Fi 6

Powered by advanced Wi-Fi 6 and dual band technology, the DBR-X3000-AP enables high-speed data transfers and superior-quality video streaming while connecting multiple devices at once without interference. It delivers a reliable and responsive wireless experience, even in highly congested environments.

Mbps

Channels

2.4G / 5G

802.3at

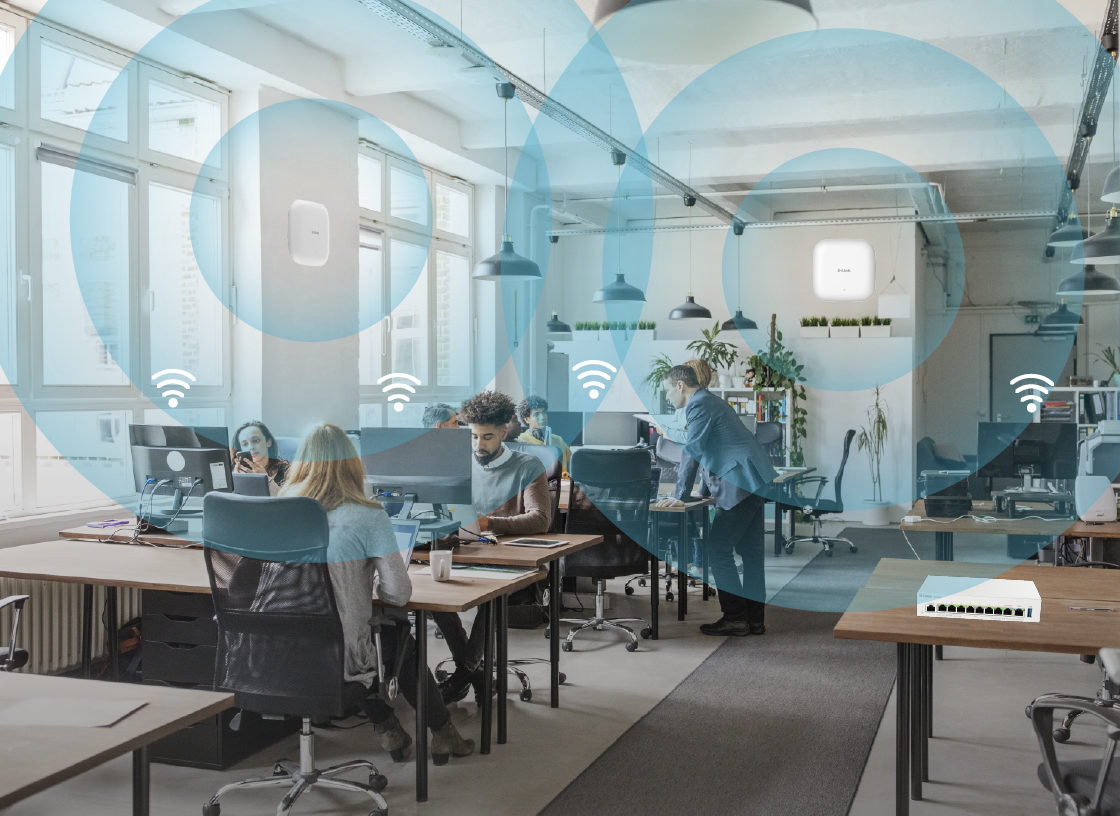

Stay Connected without Missing a Beat

Easily expand your network by wirelessly connecting up to three smart access points as mesh nodes through the DBR business router’s management platform. It minimizes dead zones, ensures consistent performance, and delivers stable connectivity throughout every corner of your space.

With seamless roaming, devices transition smoothly between access points without dropping the connection. Whether you're on a video call, streaming, or working online, enjoy a consistently smooth and reliable network experience wherever you move.

Experience uninterrupted connectivity and reliable Wi-Fi coverage across the entire business area with the DBR-X3000-AP.

Crafted for Uncompromised Network Security

The DBR-X3000-AP supports WPA3 Personal/Enterprise and Guest Wi-Fi, creating a secure digital environment for you and your visitors.

WPA3 Personal/Enterprise enhances protection against unauthorized access and safeguards sensitive data, providing peace of mind when connecting in public areas like cafes, airports or other shared spaces. For visitors, Guest Wi-Fi offers a separate, isolated connection that protects your main network, keeping sensitive data and devices secure. These advanced security features make the DBR-X3000-AP an ideal solution for both homes and businesses that require high-quality network security.

Setup in Minutes, Manage with Confidence

Setting up and managing the DBR-X3000-AP becomes convenient and effortless. Integrated with the DBR series business routers, you can not only centrally control all access points at once but also monitor your network in real-time and troubleshoot through the intuitive dashboard. It is time to frees up resources and allows IT teams to focus on more critical tasks.

Related Products

Business PoE Router
DBR-600-P
Find out more
Business Router
DBR-700
Find out more

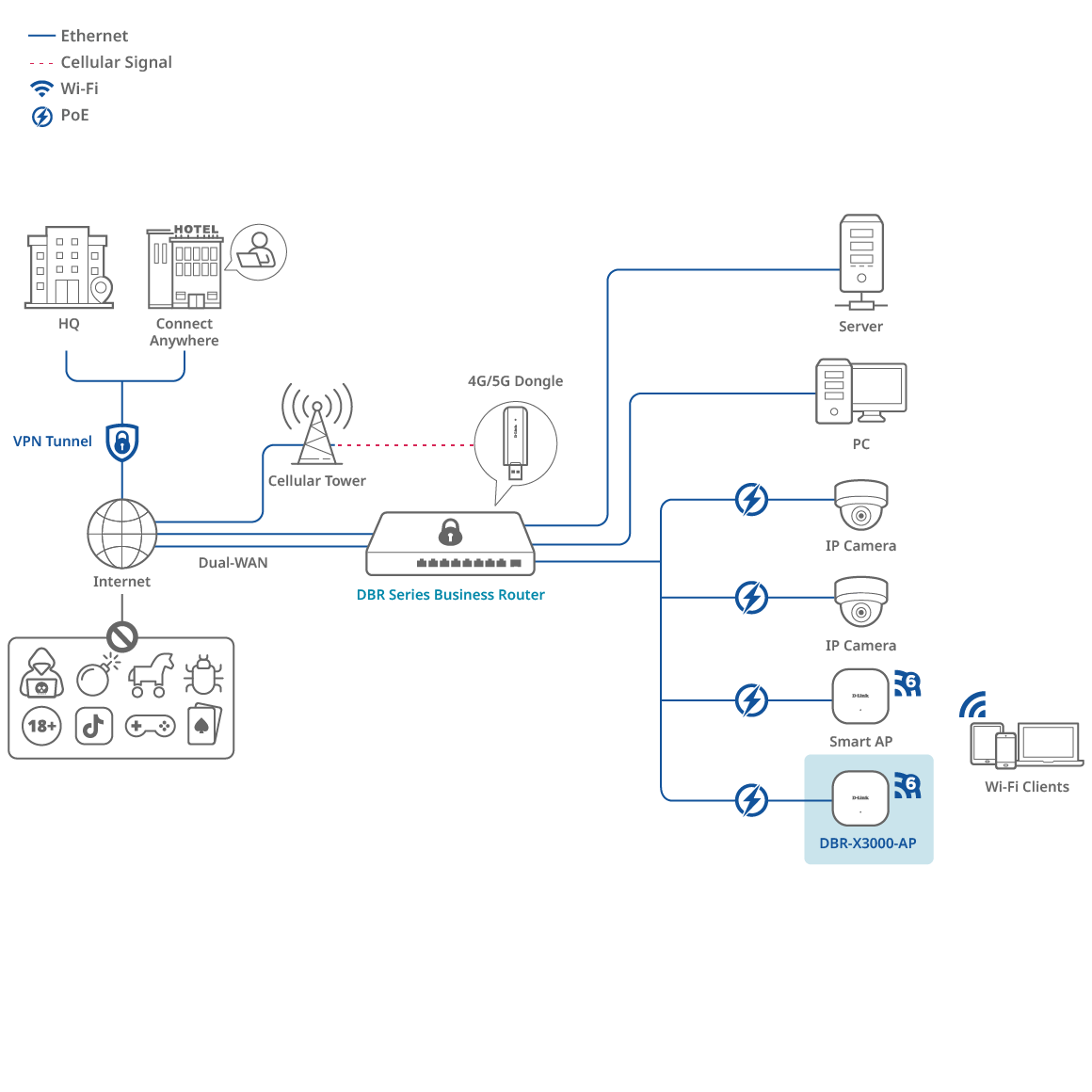

Connection Diagram

Discover the DBR-X3000-AP smart access point's capabilities through our detailed topology diagram.
Engineered for high performance, robust security, and efficient network management, D-Link’s Smart AP leverages Wi-Fi 6 dual-band technology with PoE support to deliver fast, reliable connectivity. The WPA3 Personal/Enterprise and Guest Wi-Fi feature isolates traffic to safeguard sensitive data, reducing security risks, while centralized management through D-Link business routers ensures effortless deployment and control. With advanced mesh technology, it enables flexible and rapid network expansion throughout a building. Designed for small to medium-sized businesses, the DBR-X3000-AP ensures smooth, high-performance internet access for multiple users and devices.

Applications

Small Office (Enterprise)

Learn More

Hotel (Building)

Learn More

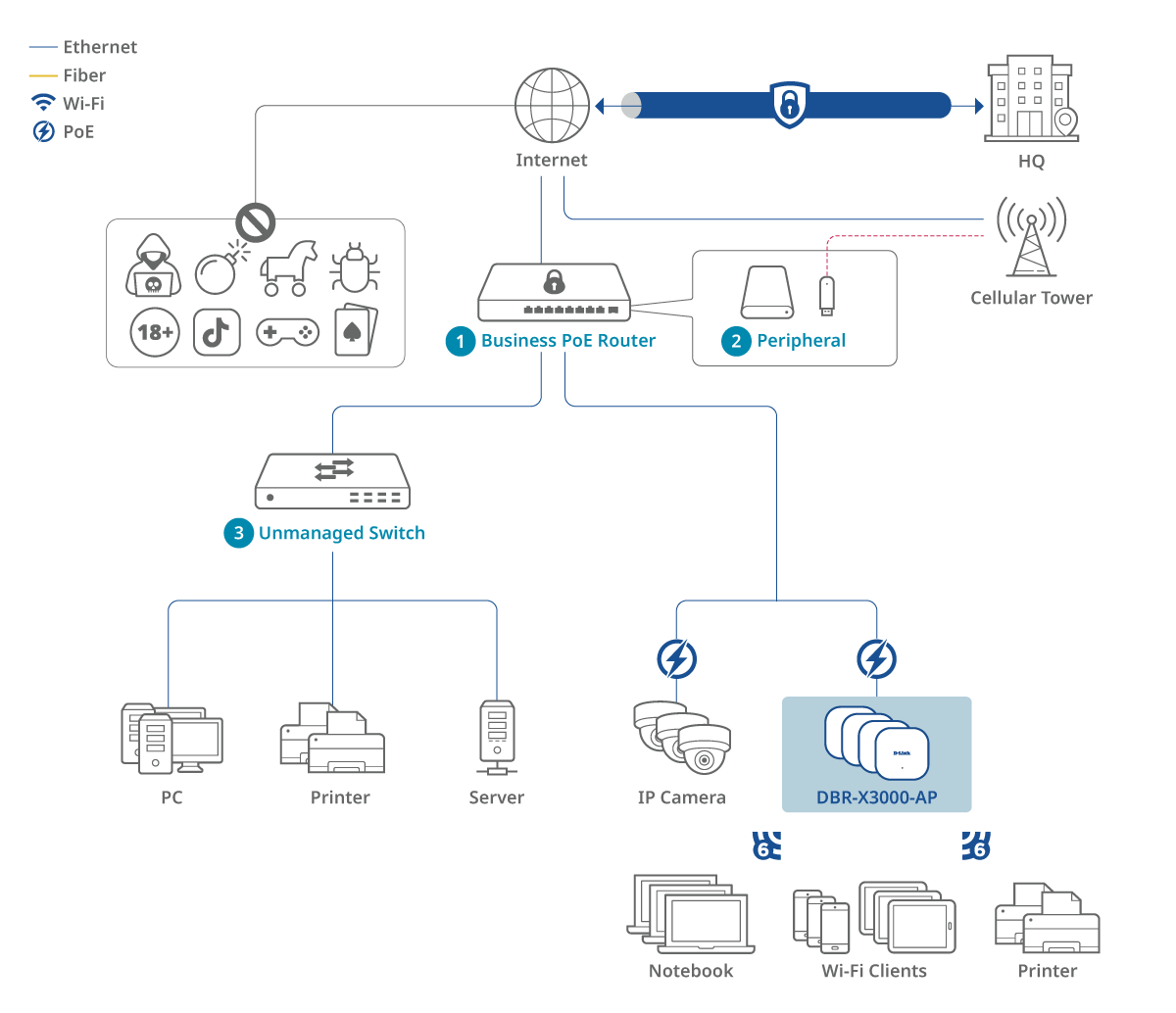

Small Office (Enterprise)

User benefits :

  • Wi-Fi 6 high-speed connectivity for enhanced productivity
  • Ensures secure remote access with robust protection
  • User-friendly web UI simplifies configuration and setup
  • Easily expands Wi-Fi coverage with multiple mesh nodes
  • Advanced Guest Wi-Fi for main network protection

Learn more :

  1. Business PoE Router : DBR-600-P
  2. Peripheral : D501 (Coming Soon)
  3. Unmanaged Switch : DMS-1016

Hotel (Building)

User benefits :

  • 2.5G high-speed connectivity for efficient operations
  • Offers seamless coverage with advanced mesh technology
  • Enhanced security ensure a secure browsing experience
  • Captive portals control user access and enhance security
  • Manage and monitor access points through a central platform

Learn more :

  1. Business Router : DBR-700
  2. Unmanaged Switch : DMS-1024
  3. Unmanaged PoE Switch : DMS-108P

Specification

Download the datasheet.

Wireless Standard
802.11ax Wi-Fi 6
Frequency band mode
2.4G,5G Dual-band simultaneous
Wireless Speed
2402 Mbps 5GHz
574 Mbps 2.4GHz
Antenna gain
3 dBi for 5GHz
4 dBi for 2.4GHz
MIMO
2.4G : 2T 2R
5G : 2T 3R
Interfaces
1 x Gigabit Ethernet LAN
PoE Standard
IEEE802.3at
Mounting
Wall/Ceiling
Support Mode
AP, Extender Mode
Wi-Fi Security
WPA/WPA2/WPA3 Enterprise
WPA/WPA2/WPA3 Personal
Multiple SSID
Up to 7 per device
Guest Mode
Yes
Central Management
Managed by DBR-600-P/DBR-700
Captive Portal
Click Through, Local DB when managed by DBR-700 /DBR-600-P
Dimensions
170 x 170 x 28 mm
Operating Temperature
0 - 40 °C (32 - 104 °F)
Storage Temperature
-10˚C to 70˚C (-4˚F to 158˚F)
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only.Specifications may be subject to change without prior notice.
