Global Chain Restaurants

Unify store rollout, R&D kitchens, warehousing, and logistics with secure networking for efficient cross-region restaurant collaboration.

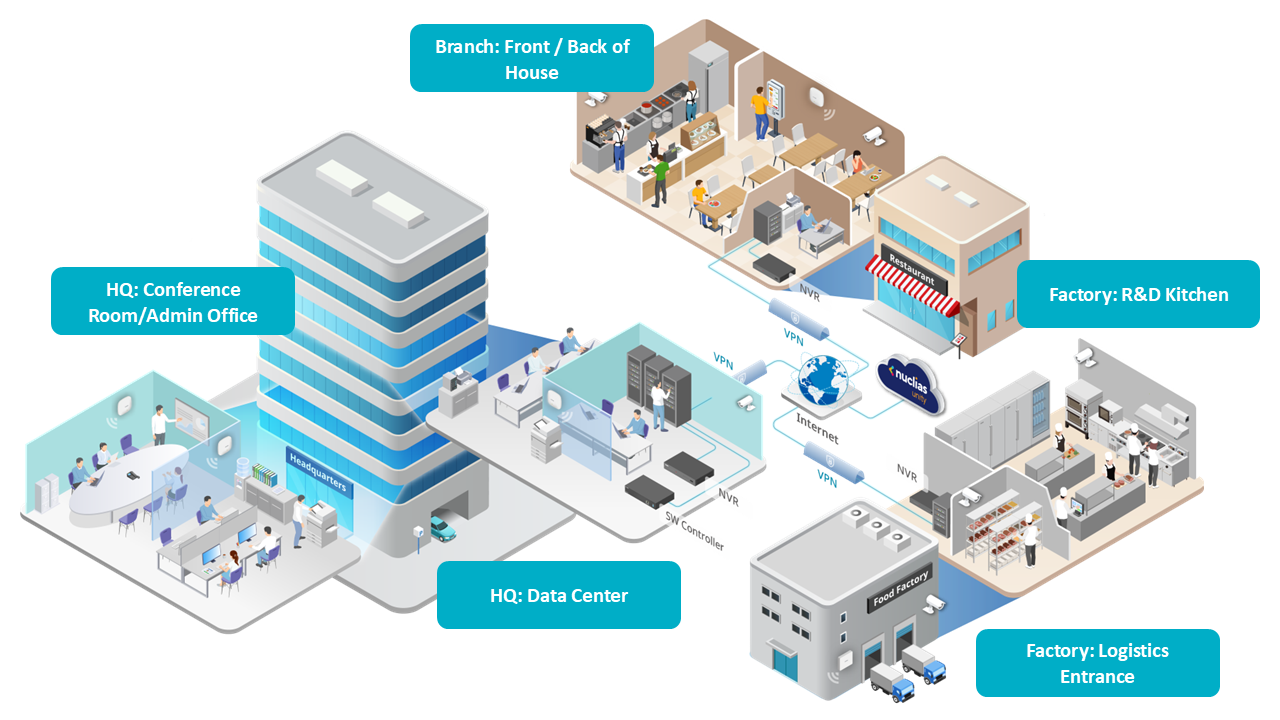

Application Diagram

HQ: Conference Room/Admin Office

Data from global branch ERP, POS, CRM, and BI systems must sync to HQ, but reporting may freeze during peak hours.

Delayed site reporting creates defective status updates, making centralized management tough and causing backlogs.

Factory:
Logistics Entrance

Unstable outdoor connectivity and heavy interference may cause trucks, PDAs, and barcode scanners to disconnect.

Mixed traffic of trucks, forklifts, and staff, combined with license plate recognition, makes access control complex.

Factory:
R&D Kitchen

Metal equipment and microwave ovens may disrupt Wi-Fi connectivity and leading to disconnect of KDS and barcode systems.

Track inventory loss, ensure high-resolution monitoring in oily environments, and enable critical fire alerts.

HQ:
Data Center

Simultaneous HQ access to multi-site operational data can spike core system loads, and data must sync back to branches.

Failures in inter-department communication and network paths may lead to site-wide disconnection.

Branch:
Front / Back of House

Quick store deployment is essential, but varying installer skills often result in inconsistent configurations and frequent issues.

Efforts to prioritize business operations may result in private cabling or improper rewiring, increasing troubleshooting complexity.

Site-to-Site VPN

VPN creates enterprise-grade encrypted tunnels for secure branch data transmission, inter-site connectivity, and remote management.

Future-Proof Fiber Connectivity

The backbone network supports 25G high-bandwidth fiber transmission to meet current demands, reduce interference risk, and accommodate future data growth.

ERPS Ring Protection

ERPS (G.8032) ring protection enables rapid network recovery in the backbone when failures occur, minimizing downtime and reducing service disruption.

Robust 6kV Surge Protection

Switches with 6kV surge protection help protect connected devices from damage caused by lightning strikes and power surges.

All-Weather Monitoring

Outdoor cameras with IP66-rated weatherproof protection ensure continuous monitoring of vehicle access even during heavy rain.

Seamless Outdoor Coverage

Outdoor access points with IP68-rated waterproof and dustproof protection maintain stable wireless coverage and high-speed connectivity even in typhoons or severe rain.

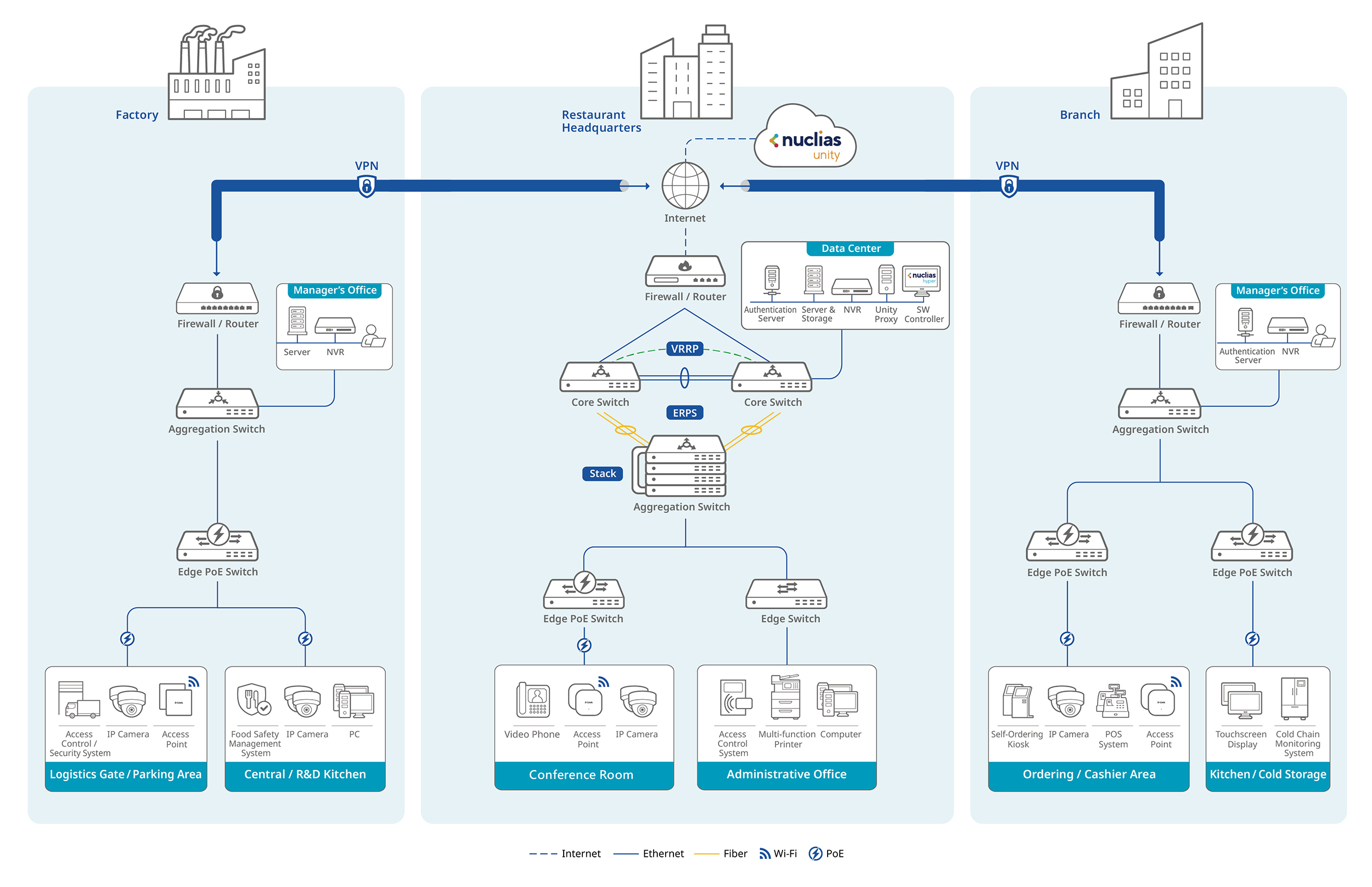

Connection Diagram

Cost-Efficient Network Solution

DNC-5000

On-Premises Software Network Controller

DXS-3610-54S

48-Ports 10G SFP+ + 6-Ports 100G QSFP28 Managed Switch

Learn More

DGS-3130-54S

54-Port Lite Layer 3 Stackable Managed Gigabit PoE Switch

Learn More

DGS-1530-28P

24-Port Gigabit Stackable Smart Managed PoE Switch

Learn More

DGS-1530-28

24-Port Gigabit Stackable Smart Managed Switch

Learn More

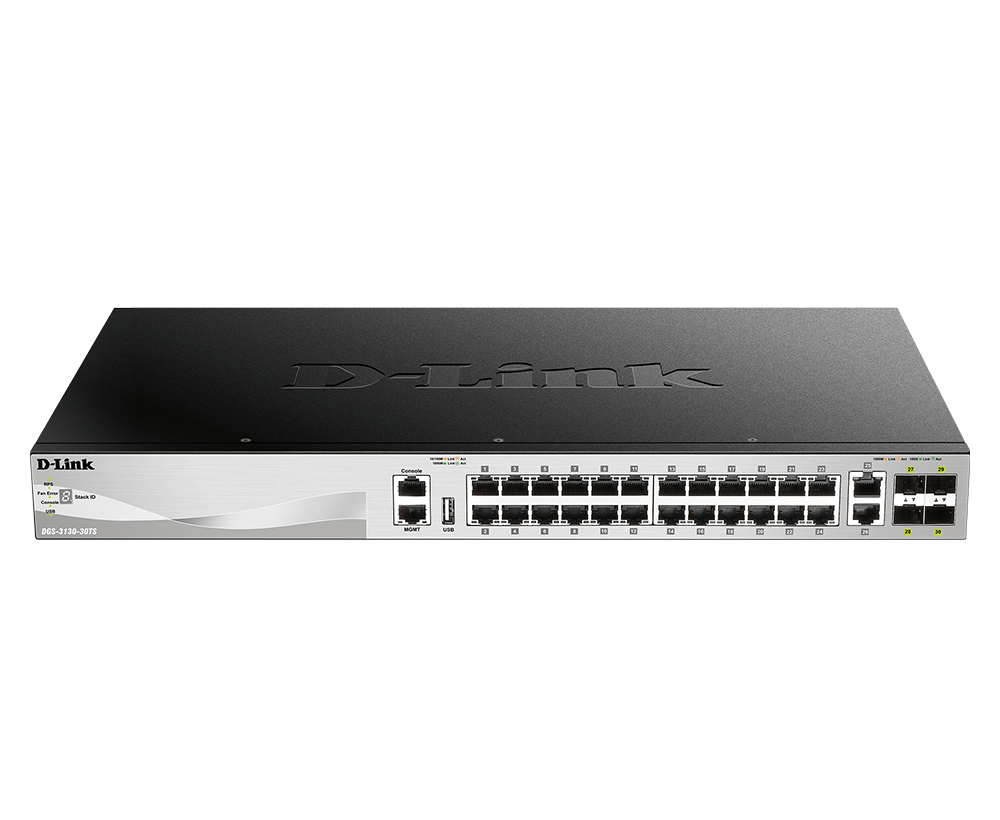

DGS-3130-30TS

30-Port Lite Layer 3 Stackable Managed Gigabit Switch

Learn More

DBR-600-P

Business PoE Router

Learn More

BNR-008

H.265 8-Channel Network Video Recorder

Learn More

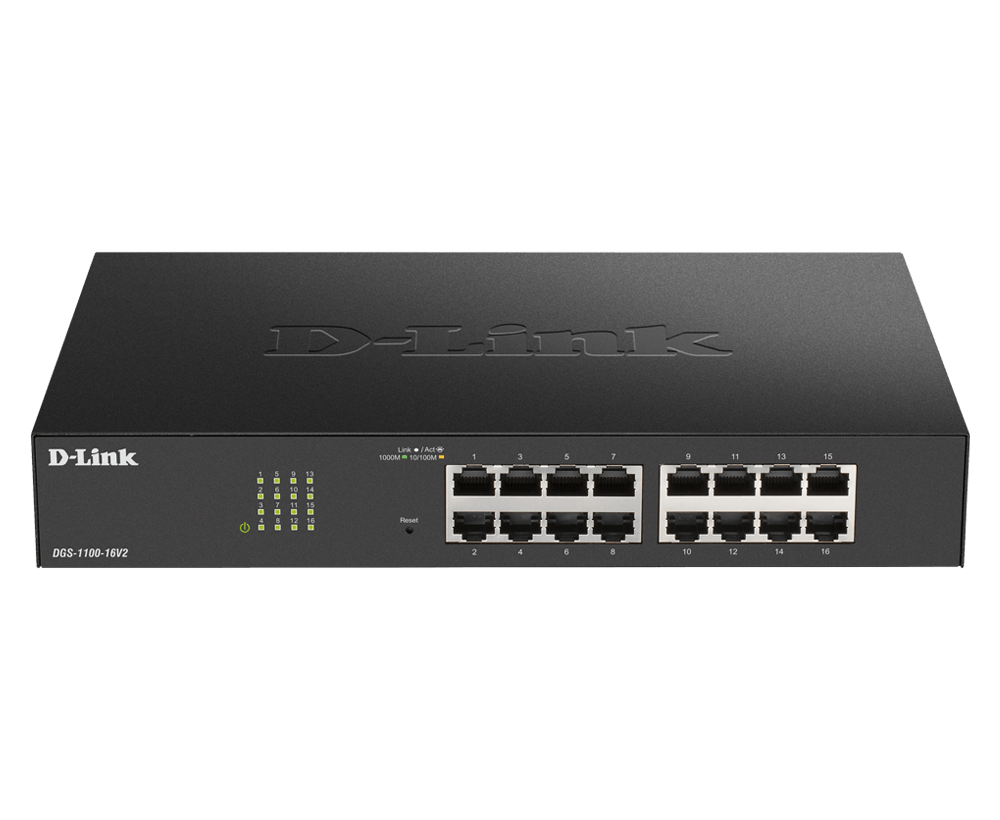

DGS-1100-16V2

16-Ports 1G Easy Smart Switch

DGS-1100-18PV2

16-Ports 1G PoE+ + 2-Ports 1G Combo PoE Easy Smart Switch

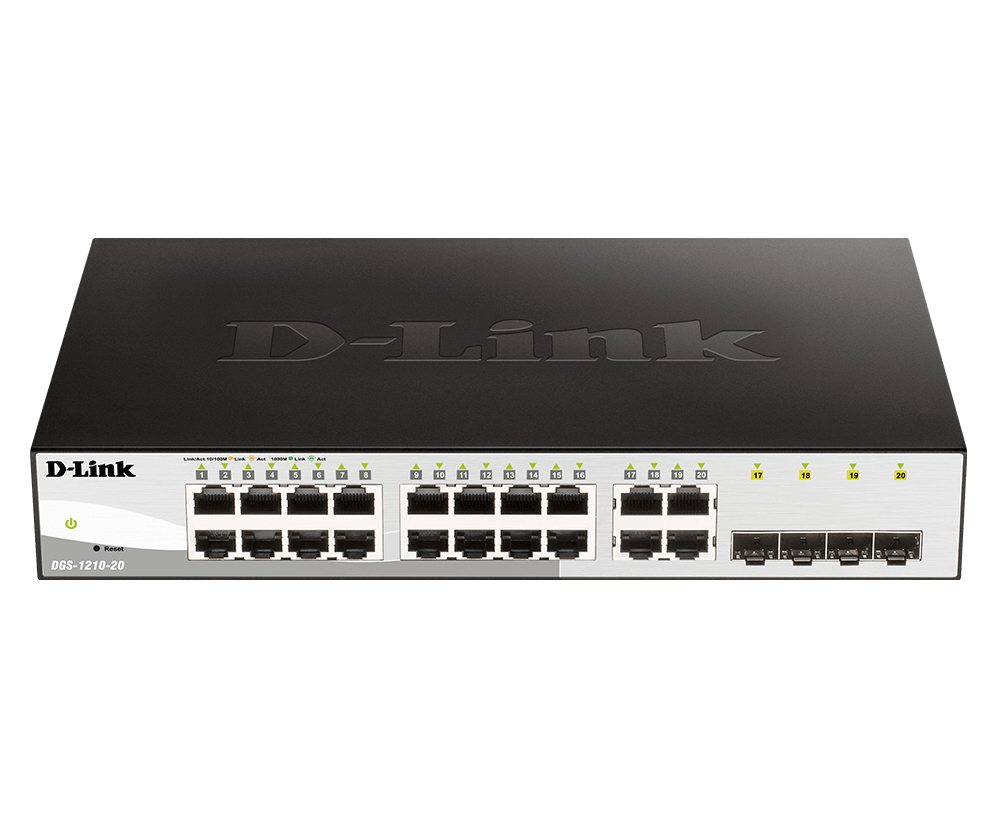

DGS-1210-20

20-Port Gigabit Smart Managed Switch

Learn More

BCD-P01

2 Megapixel H.265 Outdoor Dome Camera

Learn More

BCB-P01

2 Megapixel H.265 Outdoor Bullet Camera

Learn More

DAP-X2810

AX1800 Wi-Fi 6 Dual-Band PoE Access Point

Learn More

DAP-X3060

AX3000 Wi-Fi 6 Ceiling Mount Access Point

Learn More

DAP-X306OU

AX3000 Wi-Fi 6 Outdoor PoE Access Point

Learn More
