The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Take your Ethernet speeds to the next level with Gigabit Connectivity.
Innovative D-Link Green power saving features
Supports DNA and D-View for remote setup and management
Nuclias Unity is your single pane of glass for complete, cloud-based network control. Unify the setup, monitoring, and security of all your APs and switches from one intuitive dashboard. Visualize your entire network on a live topology map, push centralized configurations with a click, and get proactive alerts. Deploy faster, troubleshoot smarter, and simplify your IT life and reclaim your time.
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, providing more protection from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

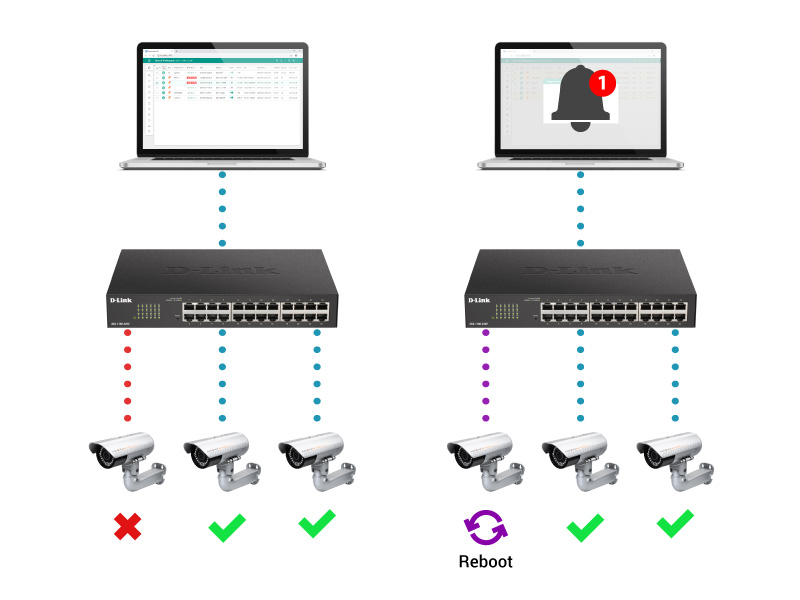

Round-the-clock surveillance footage is vital. If you have cameras attached to your network, you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the switch can automatically reset them and get them back online. No need to turn them on and off again in the middle of the night.
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
|
Interfaces
|
12 x GE 12 x GE PoE |
|---|---|
|
Switching Capacity
|
48 Gbps |
|
Max. Packet Forwarding Rate
|
35.71 Mpps |
|
PoE Standards
|
IEEE 802.3af/at |
|
PoE Power Budget
|
100 W |
|
Max Power Consumption
|
131.5 W (PoE on) 19.5 W (PoE off) |
|
Dimensions
|
280 x 180 x 44 mm |
|
Weight
|
2 kg |
|
FAN
|
Fanless |
|
Operating Temperature
|
-5°C to 50°C (23°F to 122°F) |
|
Storage Temperature
|
-40°C to 70°C ( -40°F to 158°F) |
|
Operating Humidity
|
0% to 95% non-condensing |
|
Storage Humidity
|
0% to 95% non-condensing |
|
Power Supply Type
|
Internal |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
