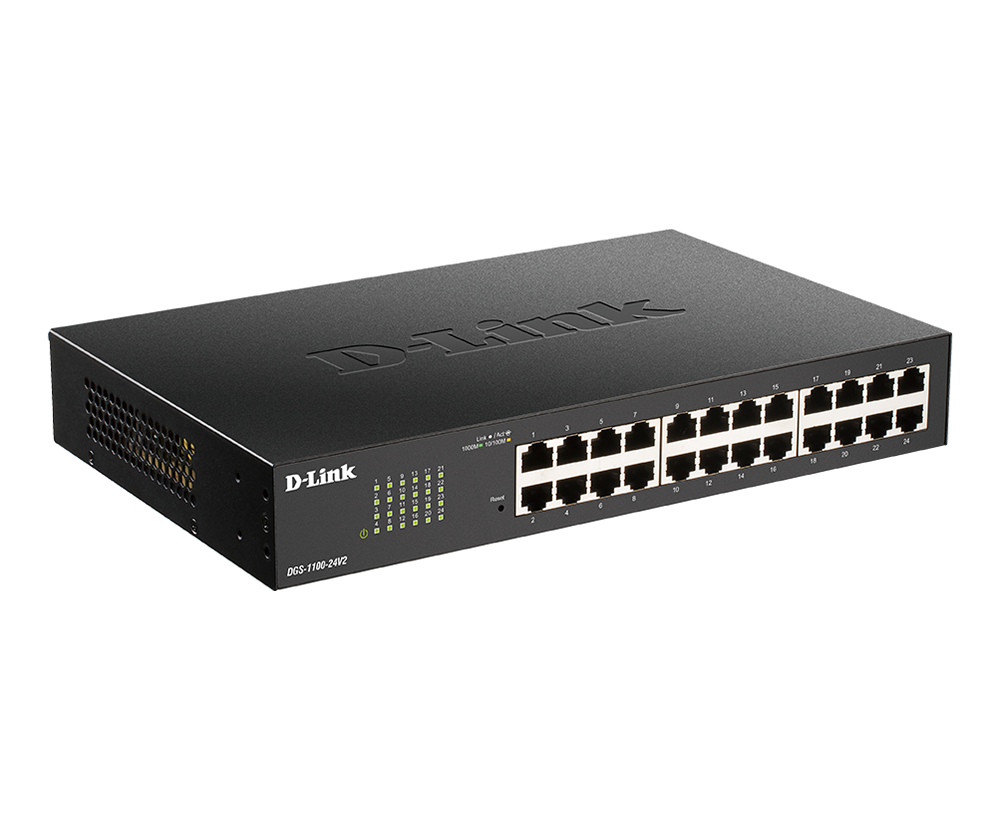

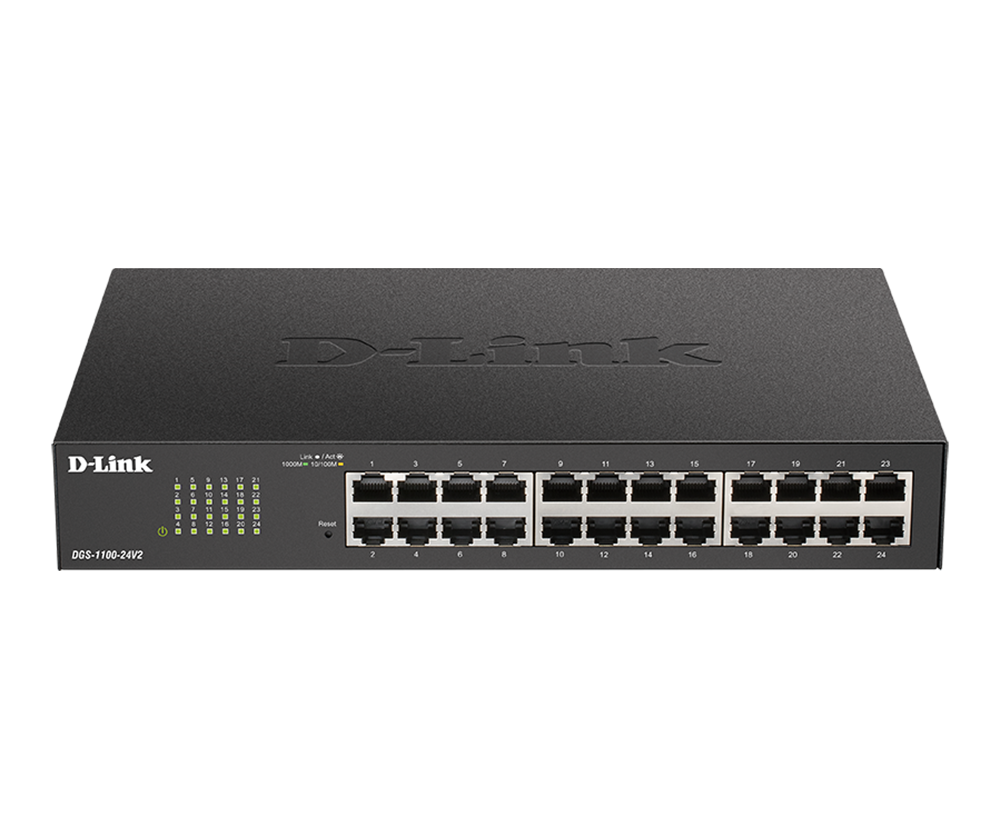

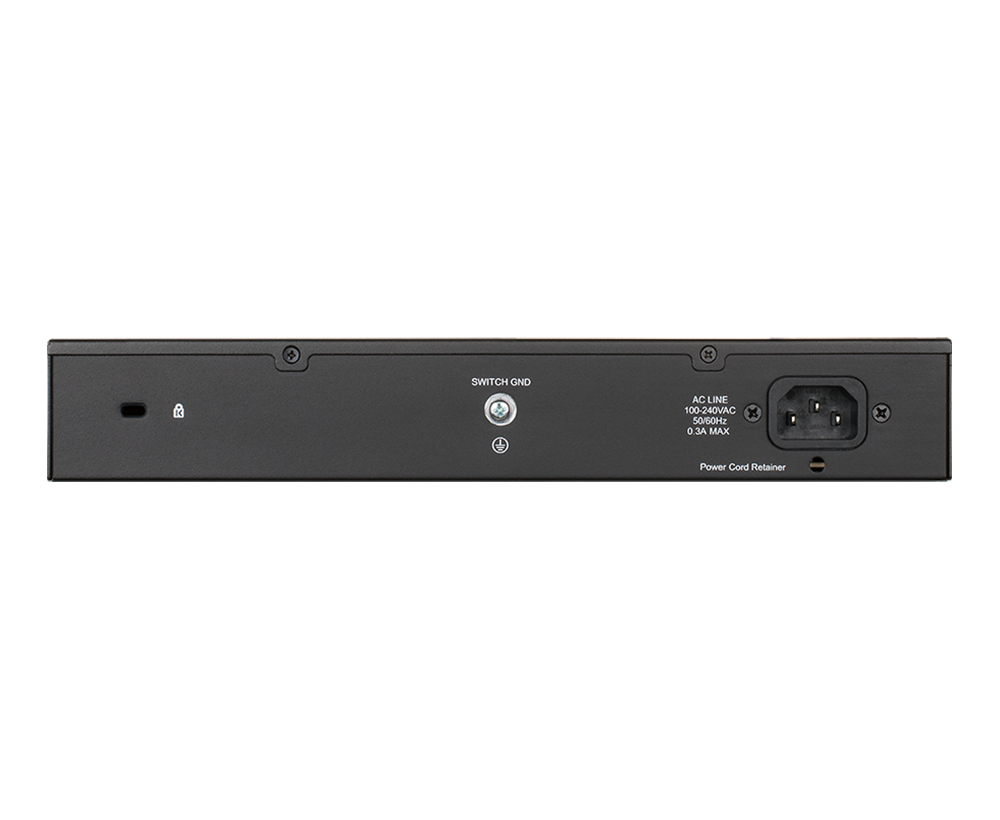

24-Port Gigabit Easy Smart Switch

DGS-1100-24V2

  • Product Status (Ax v2.11WW): Live
  • 24 Ports GE Ethernet  for downlink
  • Fanless design
  • Broadcast/Multicast/Unicast Storm Control
  • 802.3ad / 802.1AX Link Aggregation
  • 802.1D STP/ 802.1w RSTP
  • IGMP Snooping
  • Nuclias Unity
  • SSL support
Where to buy

Specification

Interfaces
24 x 1GE
Switching Capacity
48 Gbps
Max. Packet Forwarding Rate
35.71 Mpps
Max Power Consumption
15.9 W
Dimensions
280 x 180 x 44 mm
Weight
1.32 kg
FAN
Fanless
Operating Temperature
-5°C to 50°C (23°F to 122°F)
Storage Temperature
-40°C to 70°C ( -40°F to 158°F)
Operating Humidity
0% to 95% non-condensing
Storage Humidity
0% to 95% non-condensing
Power Supply Type
Internal

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Support

Version Date Type File Size
DGS-1100V2 Series Datasheet Ax v2.11(WW) - - - Download
