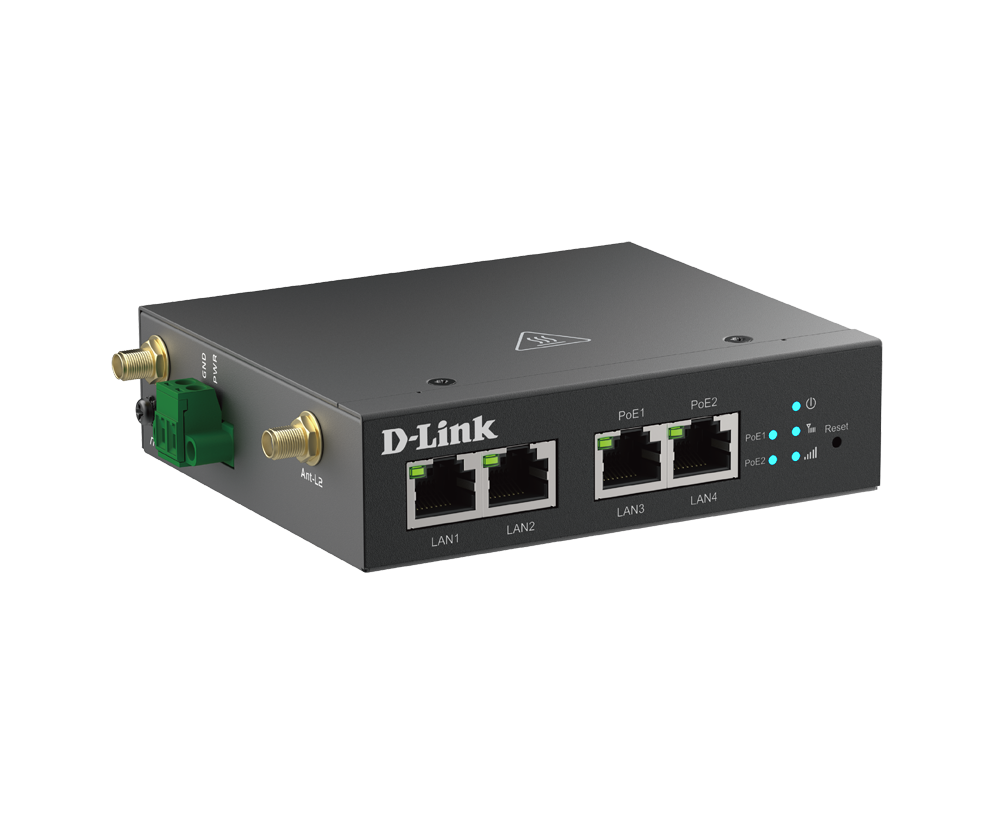

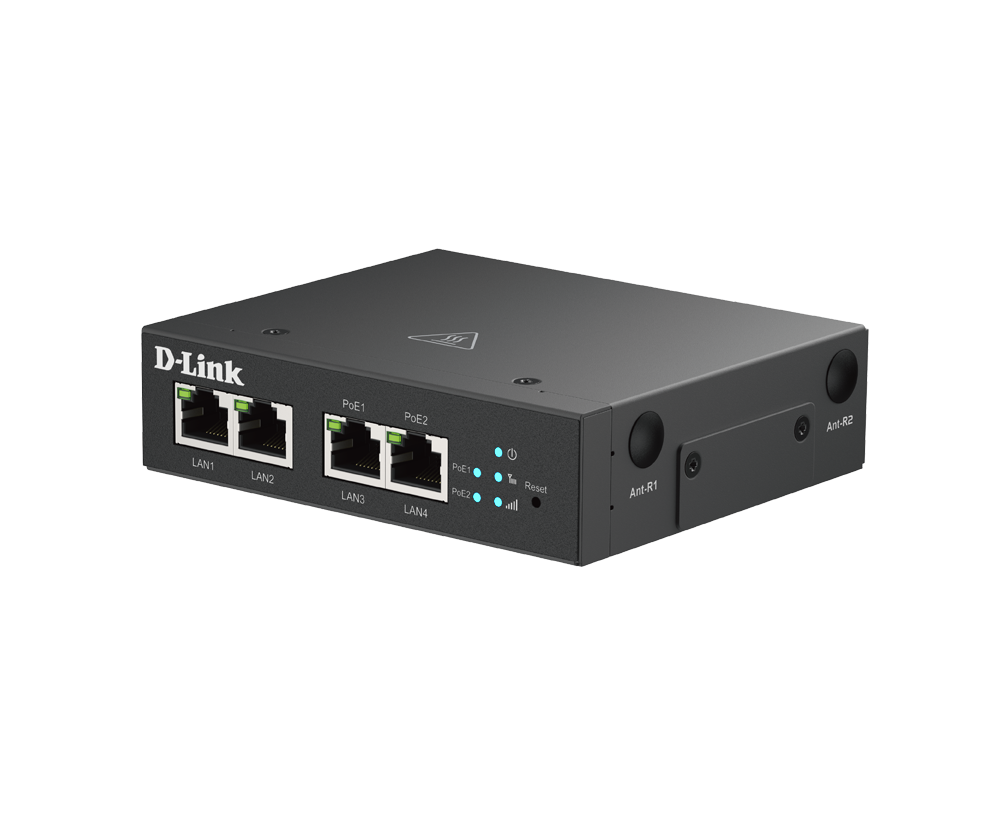

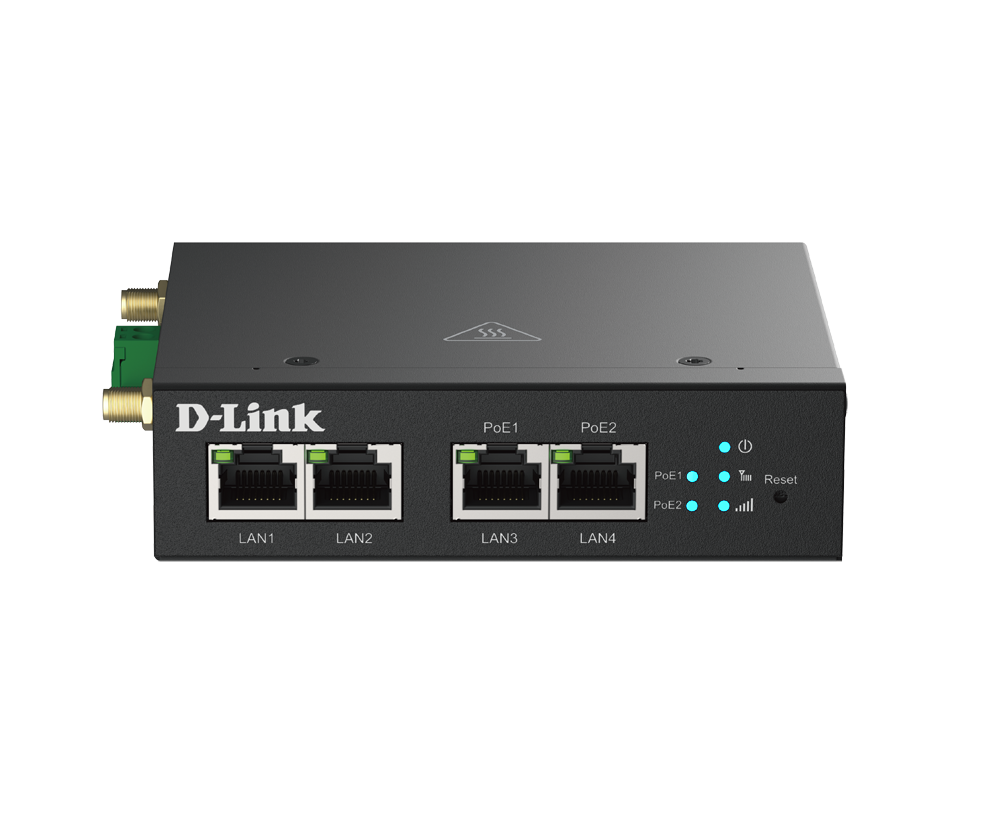

4G Multi-Connect PoE Modem
DWM-314-TP
- Product Status (Revision AX_v1.11): Live
- 4G LTE speeds of up to 150 Mbps1 for fast Internet access and data transfer
- 2 x 10/100 Fast Ethernet LAN ports for reliable wired connectivity
- 2 x 10/100 Fast Ethernet PoE LAN ports for PoE-enabled connectivity
- 1 x SIM slot for plug-and-play WAN connectivity
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Where to buy
Plug & Play
Simplifies setup, enhances security, and ensures reliable performance for critical applications.
PoE Connectivity (PSE)
Two Fast Ethernet PoE LAN ports to connect PD devices for M2M various application.
SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Enhance Passenger Experience with Reliable 4G Connectivity
The DWM-314-TP 4G Multi-Connect PoE modem is designed for real-time communication and acts as a power source to offer public Wi-Fi connection, ensure public transport security through surveillance camera and display navigation-friendly information by showing real time bus arrivals or ads on the digital signage. This plug-and-play design ensures hassle-free installations for the bus shelters and improves urban mobility, by giving commuters more accessible and useful information to help optimize their journeys.

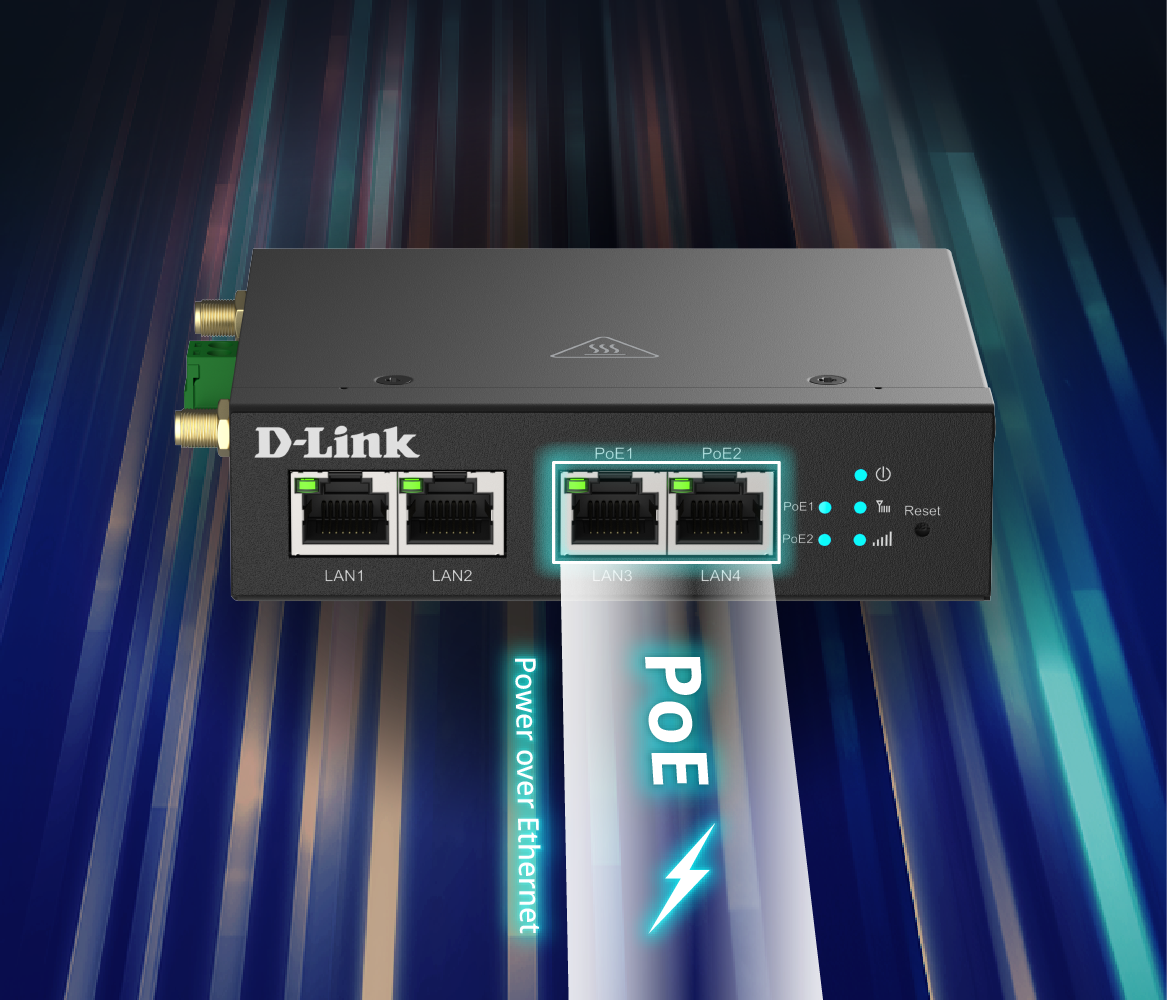

Empower Your M2M Network with PoE+
The DWM PoE Modem Series, featuring a built-in 4-port Gigabit switch and 802.3af/at Power over Ethernet (PoE+) technology, delivers both data and power through Ethernet cables. As a true PSE (Power Sourcing Equipment) solution, it streamlines M2M communication for IoT applications, reducing the need for separate electrical infrastructure and lowering installation costs of extra PoE switch. Ideal for powering surveillance cameras, digital signage, wireless access points, and IoT sensors, it offers flexible device placement without extra wiring. Its PD-Alive feature minimizes downtime, ensuring continuous operation, while PoE scheduling optimizes power use and cuts energy costs.
Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-314-TP is ready for the most demanding M2M applications in virtually any environment. Convenient wall and DIN-rail mounting options allow the DWM-314-TP to be mounted virtually anywhere to optimize signal quality.
The DWM-314-TP is also engineered to safely accept wide input voltage(VDC 48~57V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.
Related Products
Advanced 4G Multi-Port PoE Connectivity for High-Density Deployments
The DWM-314-TP 4G Multi-Connect PoE Modem is purpose-built for more demanding environments, offering reliable 4G LTE and Ethernet connectivity with instant, driverless access and true plug-and-play simplicity. Easily configurable through a user-friendly web interface, it streamlines deployment across diverse applications.

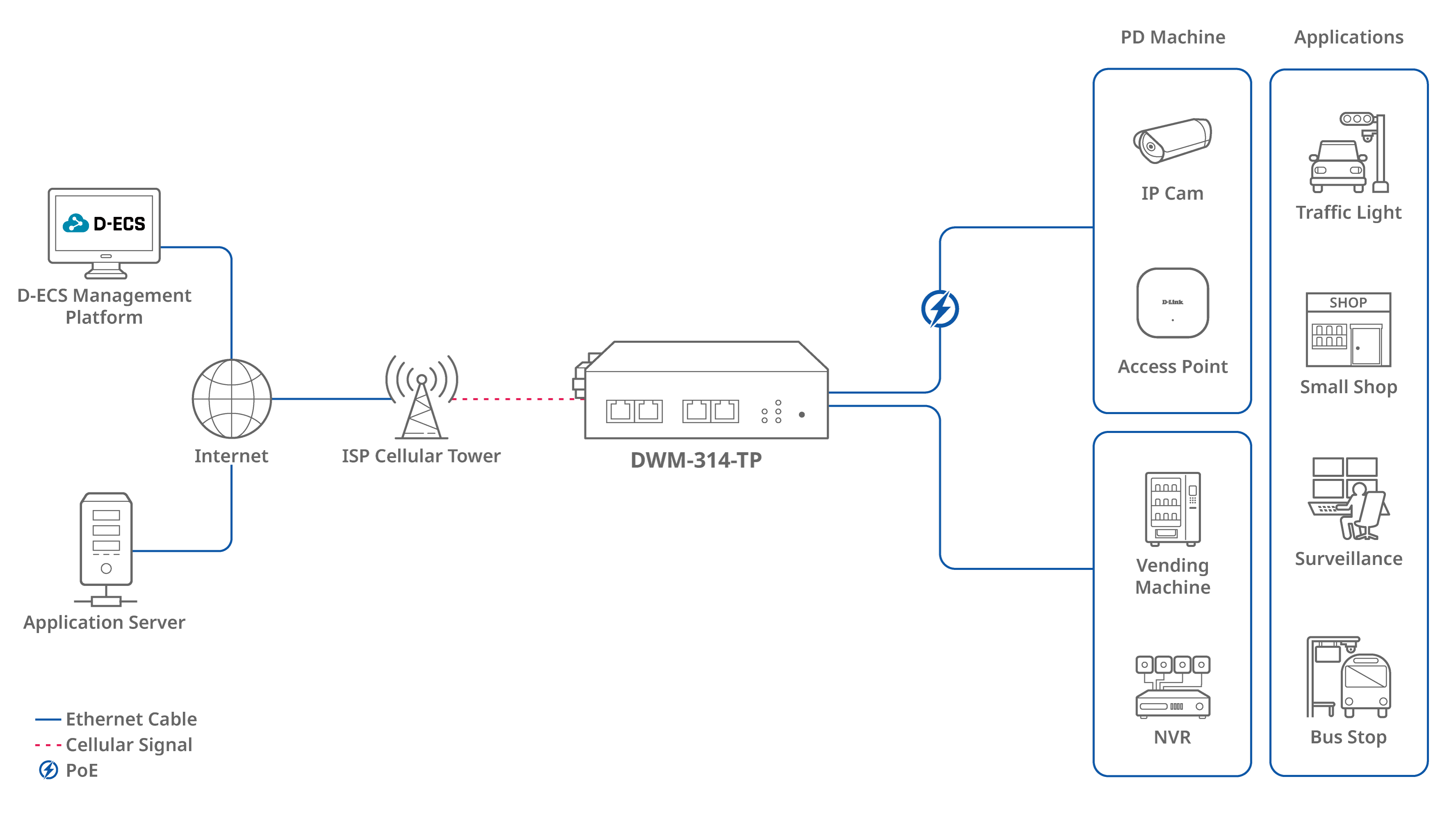

The DWM-314-TP features two fast Ethernet LAN ports for reliable wired connectivity and dual Fast Ethernet ports with 802.3af/at PoE support, enabling simultaneous power and data transmission to multiple Ethernet PD devices. Its automatic device recovery reboots unresponsive devices, ensuring continuous, efficient, and stable operation. By supporting multiple devices without needing extra PoE switches, it reduces equipment costs and simplifies installations. Perfect for powering and connecting multiple devices like IP cameras, access points, vending machines, and NVRs, this modem is ideal for high-demand applications in traffic lights, retail stores, surveillance systems, and public infrastructure like bus stops.
Versatile Applications
Surveillance
Enhance security surveillance by utilizing PoE for both power and data on a single cable, facilitating video streaming over cellular networks.
Access Point
Expand Wi-Fi coverage in remote or hard-to-reach areas with PoE-powered access points, using the 4G/5G PoE Modem for reliable Internet backhaul.
IoT Sensor
Power and connect IoT sensors in remote locations, enabling real-time data monitoring and transfer over secure 4G/5G networks.
Smart Pole
Power smart pole’s PD device with PoE to deliver real-time updates, public information, and advertisements for smarter urban services.
Specification
|
Cellular
|
4G LTE SIM x 1 |
|---|---|
|
Digital I/O
|
No IO |
|
Ethernet Ports
|
4 x LAN |
|
Ethernet Speed
|
10/100 Mbps Port |
|
GNSS
|
No GNSS |
|
Ignition Sense
|
No IGN |
|
Modbus
|
No |
|
Network
|
DHCP Server IPv4/v6 NAT Port Forwarding |
|
Management
|
D-ECS SMS Web UI/CLI |
|
PoE
|
2 x FE (802.3at PSE) |
|
Power Input
|
DC 48V-57V |
|
Serial Interface
|
No |
|
Storage
|
No Storage |
|
VPN
|
OpenVPN |
|
WAN
|
Cellular |
|
WiFi
|
No Wi-Fi |
SKU & Certifications
4G LTE Bands
| EU SKU: LTE-FDD: B1/B3/B7/B8/B20/B28A LTE-TDD: B38/B40/B41 |
|---|---|
Certification
| CE/UKCA |
